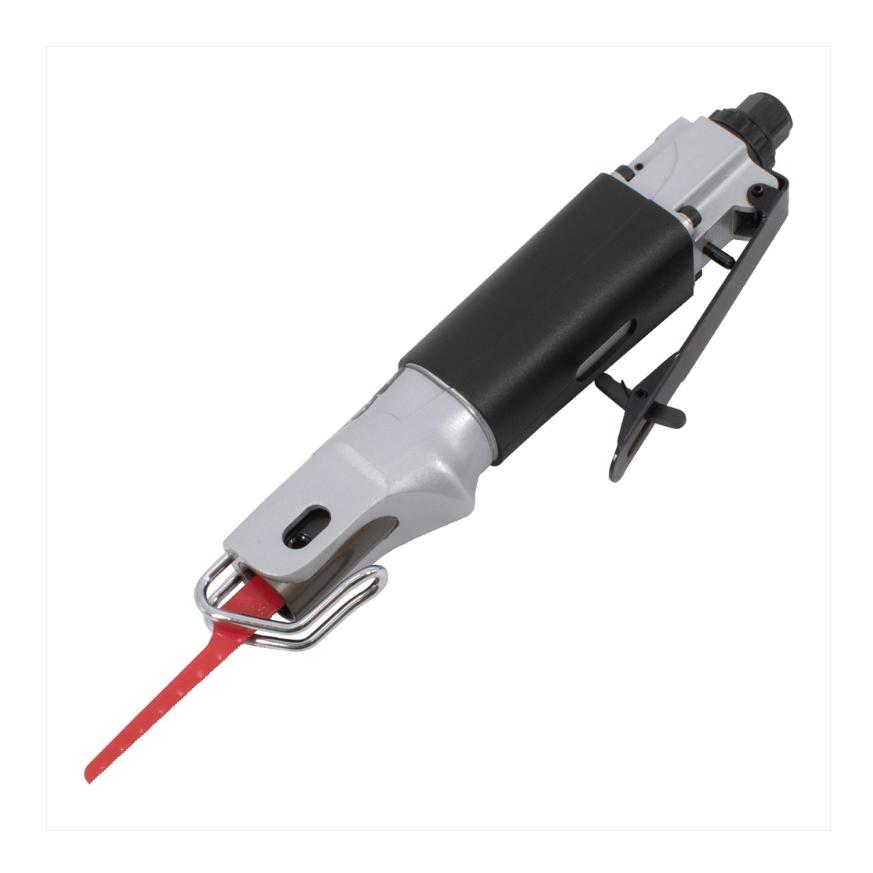

AP Air Saw Pro

2004000008132

B0050FGQZS

2004000008132

Astro Products-AP-Air Saw-Pro


■Product Description:\
・This air saw can cut various materials from wood to steel plates by changing the blade.\
・This product is highly durable and designed for professional use in harsh environments. \
[Primary Cutting Applications by Blade Tooth Count]\
・18T: Wood, resin products, etc.\
(※This product does not include an 18T blade.)\
・24T: Aluminum, resin, etc.\
・32T: Thin steel plate, FRP, etc.\
\

▪️Key Feature.\
Cuts with air power. Air Saw Pro.\


■Product Specifications:\
・Overall Length: 320mm (including blade)\
・Weight: 640g (including blade)\
・Stroke Length: 10mm\
・No-Load Stroke Rate: 8310 strokes/min\
・Cutting Capacity: 1.6mm (Steel)\
・Operating Air Pressure: 0.62MPa\
・Air Consumption: 113L/min\
・Screw Size: Rc1/4\
・Recommended Hose ID: φ8mm or larger\
・Included Accessories: 24T Blade ×1, 32T blade (pre-installed) ×1, 3mm hex wrench ×1, 4mm hex wrench ×1, R1/4 air plug ×1\


■Precautions:\
※The blade strokes at high speed during operation. Exercise extreme caution to prevent hands, fingers, work gloves, etc., from being caught.\
※The blade becomes extremely hot immediately after operation. Do not touch it with bare hands. Also, wait until the blade has cooled sufficiently before replacing it.\
※Before and after use, always inject an appropriate amount of air tool oil through the air inlet or the air coupler side.\
| Air Saw Air Saw This Saw Saw Cutting Cutting Air Tool
Brand Name: Astro Products
Size: Overall Length: 235mm
