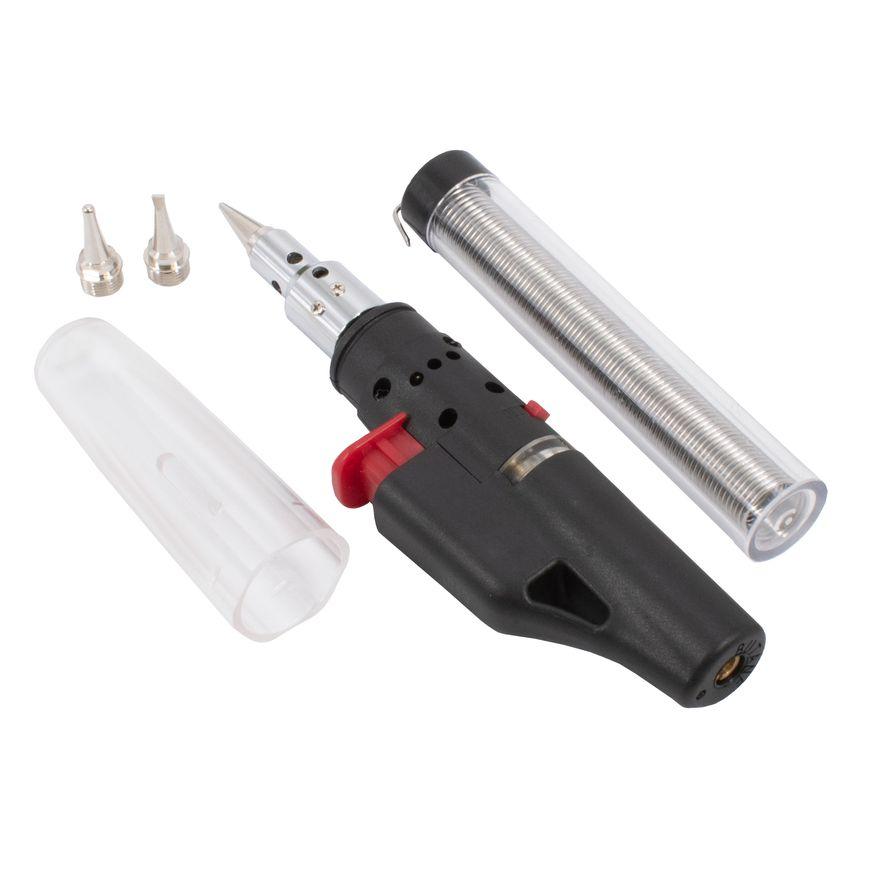

AP Gas-Fueled Soldering Iron Kit
JAN
2005000005527
ASIN
B00L8LNJB2
Maker
Model No.
2005000005527
Color
Size
Description

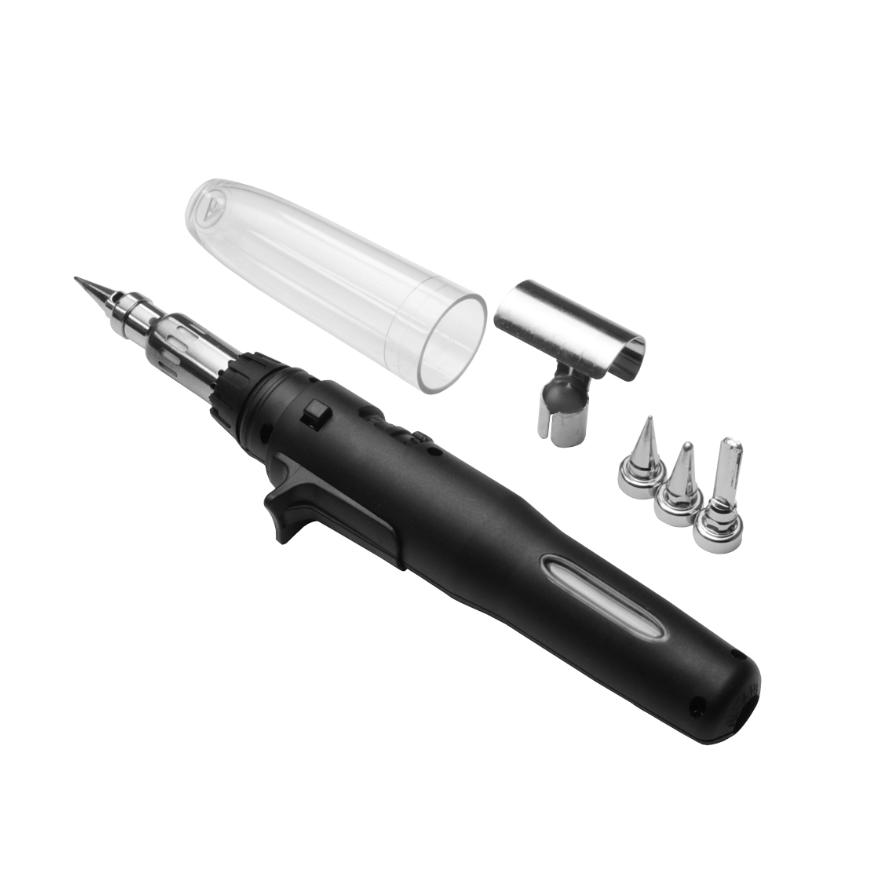

Astro Products - AP Gas Soldering Iron Kit
■Product Specifications:
・Overall Length: 182mm (with soldering iron tip attached)
・Weight: 70g
・Fuel Type: Butane Gas
・Gas Capacity: Approx. 7.5ml
・Operating Time: Approx. 30 minutes (fully filled, temperature control at MAX)
・Soldering Tip, Hot Knife Tip Heat Output: Approx. 200~400℃
・Bent Tip & Hot Air Heat Output: Approx. 450℃
・Torch Heat Output: Approx. 1200℃
・Body Material: PA
・Ignition lever material: POM
・Tip material: Copper
《Accessories》
・Soldering iron tip 1.0mm × 2 (1 pre-installed on unit)
・Soldering iron tip 2.4mm × 1
・Hot knife tip × 1
・Vent tip × 1
・Wrench × 1
・Protective cap × 1
■Product Description:
A gas-powered soldering iron requiring no power source.
Uses butane gas and features a sight glass showing gas level.
The ignition lever doubles as a stand.
■Precautions:
※Always read the instruction manual thoroughly before use and ensure you fully understand this product. ※Gas is not included.
※After use, always ensure the ON/OFF lever is in the “OFF” position and store the tool only after it has cooled completely.
※Do not use for any purpose other than its intended use.
Brand Name: Astro Products
Material: Copper
Related Products: Electronics, Soldering Supplies, Stationary Soldering Irons
Manufacturer: World Tool Co., Ltd. ・Ideal for outdoor or automotive work, this gas-powered soldering iron requires no electricity. ・Compatible with commercially available gas for gas soldering irons or gas lighters. ・Features a sight glass for visible gas level monitoring. ・Equipped with a lock button to prevent accidental ignition without needing a lighter. ・The ignition lever doubles as a stand to prevent the tip from touching the ground or rolling away. Product Name: Astro Products Gas Soldering Iron Kit Part Number: 2005000005527 Overall Length (mm): 185 (without cap, with soldering iron tip attached) Weight: 68g (without cap, with soldering iron tip attached) Ignition Method: One-touch piezo ignition Ignition Method: One-touch piezo ignition／／PA (Body)/POM (Ignition Lever)/Copper (Tip)／／Soldering Iron Cap ×1/1mm Soldering Iron Tip ×2 (1 pre-installed)/2.4mm Soldering Iron Tip ×1/Hot Knife Tip ×1/Vent Tip ×1/Tip Replacement Wrench ×1
／Weight: 0.18kg／JAN Code: 2005000005527／
2005000005527
AP Gas Soldering Iron Kit
(text created at , 2025-05-09)
■Product Specifications:
・Overall Length: 182mm (with soldering iron tip attached)
・Weight: 70g
・Fuel Type: Butane Gas
・Gas Capacity: Approx. 7.5ml
・Operating Time: Approx. 30 minutes (fully filled, temperature control at MAX)
・Soldering Tip, Hot Knife Tip Heat Output: Approx. 200~400℃
・Bent Tip & Hot Air Heat Output: Approx. 450℃
・Torch Heat Output: Approx. 1200℃
・Body Material: PA
・Ignition lever material: POM
・Tip material: Copper
《Accessories》
・Soldering iron tip 1.0mm × 2 (1 pre-installed on unit)
・Soldering iron tip 2.4mm × 1
・Hot knife tip × 1
・Vent tip × 1
・Wrench × 1
・Protective cap × 1
■Product Description:
A gas-powered soldering iron requiring no power source.
Uses butane gas and features a sight glass showing gas level.
The ignition lever doubles as a stand.
■Precautions:
※Always read the instruction manual thoroughly before use and ensure you fully understand this product. ※Gas is not included.
※After use, always ensure the ON/OFF lever is in the “OFF” position and store the tool only after it has cooled completely.
※Do not use for any purpose other than its intended use.
Brand Name: Astro Products
Material: Copper
Related Products: Electronics, Soldering Supplies, Stationary Soldering Irons
Manufacturer: World Tool Co., Ltd. ・Ideal for outdoor or automotive work, this gas-powered soldering iron requires no electricity. ・Compatible with commercially available gas for gas soldering irons or gas lighters. ・Features a sight glass for visible gas level monitoring. ・Equipped with a lock button to prevent accidental ignition without needing a lighter. ・The ignition lever doubles as a stand to prevent the tip from touching the ground or rolling away. Product Name: Astro Products Gas Soldering Iron Kit Part Number: 2005000005527 Overall Length (mm): 185 (without cap, with soldering iron tip attached) Weight: 68g (without cap, with soldering iron tip attached) Ignition Method: One-touch piezo ignition Ignition Method: One-touch piezo ignition／／PA (Body)/POM (Ignition Lever)/Copper (Tip)／／Soldering Iron Cap ×1/1mm Soldering Iron Tip ×2 (1 pre-installed)/2.4mm Soldering Iron Tip ×1/Hot Knife Tip ×1/Vent Tip ×1/Tip Replacement Wrench ×1
／Weight: 0.18kg／JAN Code: 2005000005527／
2005000005527
AP Gas Soldering Iron Kit
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
6,861 JPY (Including Tax)
