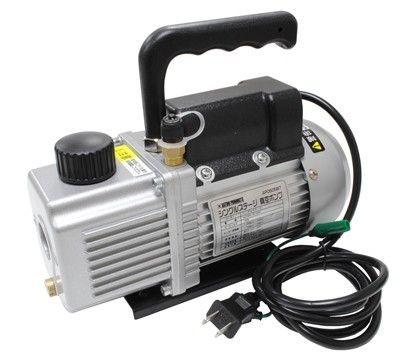

AP Single-Stage Vacuum Pump
JAN
2005000005879
ASIN
B01M8M4KV9
Maker
Model No.
2005000005879
Color
Size
Description
ASTRO-PRODUCTS-05-05879-Single Stage Vacuum Pump
▪️Weight (kg): Approx. 4.3 (excluding oil)\
▪️Rotor: Single Stage\
▪️Motor Output (W): 180\
▪️Motor Speed (50Hz・60Hz; min⁻¹): 1450・1750\
▪️Pumping Speed (50Hz・60Hz; L/min): Approx. 42・Approx. 50\
▪️Ultimate Vacuum: Approx. 75 microns (10 Pa)\
▪️Operating Temperature Range (°C): 5~40\
▪️Continuous Operation Time: 1 hour\
▪️Oil capacity (ml): 150\
▪️Intake port size: 1/4-inch flare (UNF 7/16-20)\
▪️Compatible refrigerant: R134a\
▪️Power cord length (m): Approx. 1.6\
▪️Accessories: Conversion adapter (M10-1.5P), vacuum pump oil\
※This pump is exclusively for car air conditioners. Do not use it for any other purpose.\
※Always use oil specifically designed for vacuum pumps.\
※Do not operate outside the specified temperature range.\
Brand Name: Astro Products\
▪️This is a dedicated vacuum pump for evacuating car air conditioners.\
▪️Features a single-stage rotor and oil-rotary pump design for simple operation.
▪️Includes a conversion adapter (M10-1.5P) for compatibility with a wide range of manifold gauges.
▪️Comes with dedicated pump oil.
▪️ Unit Dimensions (mm): L255 x W100 x H208
2005000005879
B01M8M4KV9
AP Single-Stage Vacuum Pump
(text created at , 2025-11-12)
▪️Weight (kg): Approx. 4.3 (excluding oil)\
▪️Rotor: Single Stage\
▪️Motor Output (W): 180\
▪️Motor Speed (50Hz・60Hz; min⁻¹): 1450・1750\
▪️Pumping Speed (50Hz・60Hz; L/min): Approx. 42・Approx. 50\
▪️Ultimate Vacuum: Approx. 75 microns (10 Pa)\
▪️Operating Temperature Range (°C): 5~40\
▪️Continuous Operation Time: 1 hour\
▪️Oil capacity (ml): 150\
▪️Intake port size: 1/4-inch flare (UNF 7/16-20)\
▪️Compatible refrigerant: R134a\
▪️Power cord length (m): Approx. 1.6\
▪️Accessories: Conversion adapter (M10-1.5P), vacuum pump oil\
※This pump is exclusively for car air conditioners. Do not use it for any other purpose.\
※Always use oil specifically designed for vacuum pumps.\
※Do not operate outside the specified temperature range.\
Brand Name: Astro Products\
▪️This is a dedicated vacuum pump for evacuating car air conditioners.\
▪️Features a single-stage rotor and oil-rotary pump design for simple operation.
▪️Includes a conversion adapter (M10-1.5P) for compatibility with a wide range of manifold gauges.
▪️Comes with dedicated pump oil.
▪️ Unit Dimensions (mm): L255 x W100 x H208
2005000005879
B01M8M4KV9
AP Single-Stage Vacuum Pump
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
208x100x255 mm
Package
Weight (Approx.):
Weight (Approx.):
5000 g
20,488 JPY (Including Tax)
Stock :
50
Scheduled Shipping:
2026-07-15
