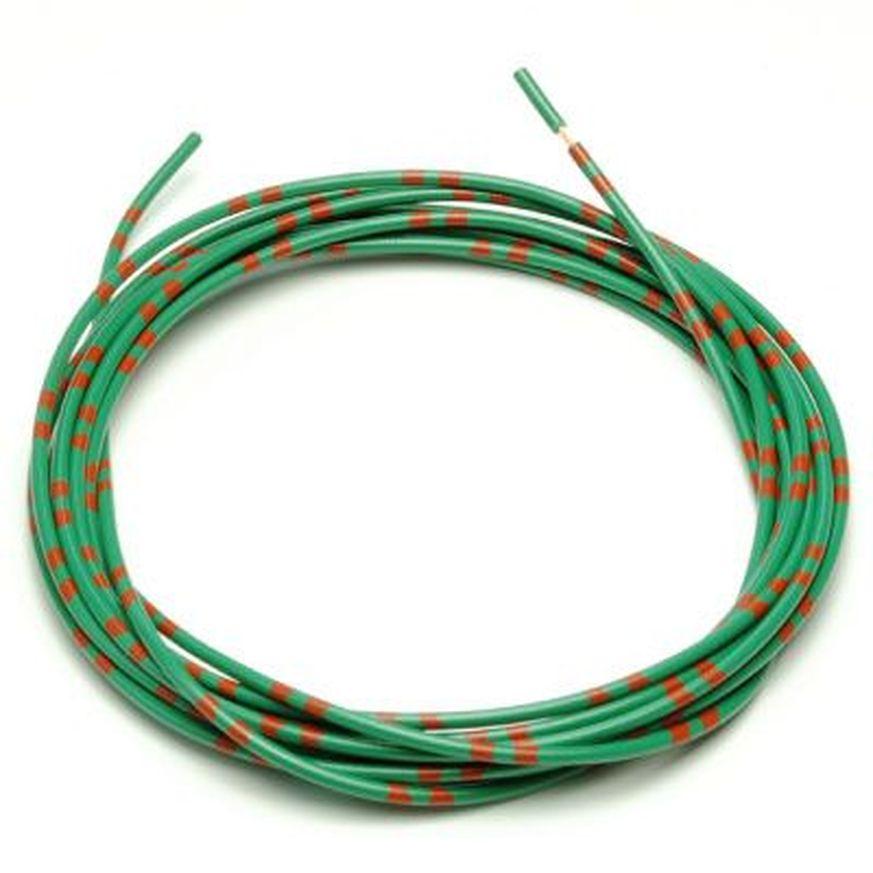

Astro C1A085-3000G Automotive AVS Wire 0.85sq Green
JAN
2005000006319
ASIN
B01MQ0B8MS
Maker
Model No.
2005000006319
Color
Size
Description
PRODUCTS-05-06319-C1A085-3000G-Automotive AVS Wire-0-85sq
▪️Outer Diameter (mm): 1.2
▪️Insulation Thickness (mm): 0.5
▪️Allowable Current (A): 16 (Current at which conductor temperature reaches 80°C at ambient temperature of 40°C)
▪️Maximum Conductor Resistance (mΩ/m): 20.8
※Exceeding the allowable current may cause overheating or ignition.
Brand Name: Astro Products
▪️Color-coded wiring makes it easy to identify even in densely packed wiring areas.
▪️Markings of a different color from the wire itself are applied at regular intervals.
▪️Markings are applied one per 0.5sq wire and two per 0.85sq wire, allowing identification even among wires of the same color.
▪️ One end features easy-stripping insulation.
▪️ Length (m): 3
2005000006319
Astro C1A085-3000G Automotive AVS Wire 0.85sq Green
(text created at , 2025-05-12)
▪️Outer Diameter (mm): 1.2
▪️Insulation Thickness (mm): 0.5
▪️Allowable Current (A): 16 (Current at which conductor temperature reaches 80°C at ambient temperature of 40°C)
▪️Maximum Conductor Resistance (mΩ/m): 20.8
※Exceeding the allowable current may cause overheating or ignition.
Brand Name: Astro Products
▪️Color-coded wiring makes it easy to identify even in densely packed wiring areas.
▪️Markings of a different color from the wire itself are applied at regular intervals.
▪️Markings are applied one per 0.5sq wire and two per 0.85sq wire, allowing identification even among wires of the same color.
▪️ One end features easy-stripping insulation.
▪️ Length (m): 3
2005000006319
Astro C1A085-3000G Automotive AVS Wire 0.85sq Green
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
100x100x100 mm
Package
Weight (Approx.):
Weight (Approx.):
100 g
509 JPY (Including Tax)
