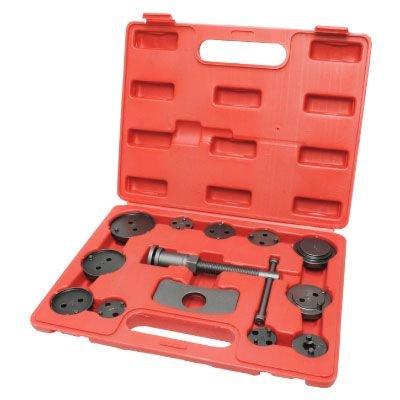

AP Brake Caliper Tool 13-Piece Set

2007000011782

B01M28CTTT

2007000011782

ASTRO-PRODUCTS-07-11782-Brake Caliper Tool-13-Piece Set

▪️Overall Length (mm): 165
▪️Handle Width (mm): 108
▪️Tip Diameter (mm): 36
▪️Pin Diameter (mm): 6
▪️Two-Face Width (mm): 22
▪️Plate Size (mm): 95x50
▪️A (Outer Diameter x Pin Diameter x Pin Pitch; mm): 30x4x24
▪️F (Outer Diameter x Pin Diameter x Pin Pitch; mm): 32x4x30
▪️O (Outer Diameter x Inner Diameter x Pin Diameter; mm): 64x62x5.5
▪️2 (Outer Diameter x Inner Diameter x Pin Diameter; mm): 51x36x6
▪️3: Single-Press Piston Attachment
▪️4(OD x Pin Diameter x Pin Pitch; mm): 32x5x28
▪️5(OD x Pin Diameter x Pin Pitch; mm): 36x6x25 (3/8DR Drive Angle)
▪️6(OD x Pin Diameter x Pin Pitch; mm): 42x6x39
▪️7 (OD x Pin Diameter x Pin Pitch; mm): 42x6x38
▪️8 (OD x ID x Pin Diameter; mm): 48x46x5.5
▪️9 (OD x ID x Pin Diameter; mm): 54x52x5.5
▪️Set Contents: Piston Body, Attachments (A・F・O・2・3・4・5・6・7・8・9)
※Cannot be used with opposing brake pistons.
※May not be usable depending on the shape of the brake piston.
※Do not extend the handle using pipes or similar items.
Brand Name: Astro Products
▪️ This brake caliper tool pushes back the pistons in brake calipers.
▪️ Used for rear brake calipers that also function as parking brakes, single-piston brake calipers, etc.
▪️ Compatible with various brake pistons thanks to 11 attachments.
▪️ The tool tip is magnetic, holding the attachment in place to prevent it from falling off during work.
2007000011782
AP Brake Caliper Tool 13-Piece Set
(text created at , 2025-05-09)

300x200x300 mm

1000 g
