Wedge lock washer
JAN
4510676828496
ASIN
B0DGPV8GRW
Maker
Model No.
310-00014
Color
Steel (M8×16.6 wide)
Size
Description

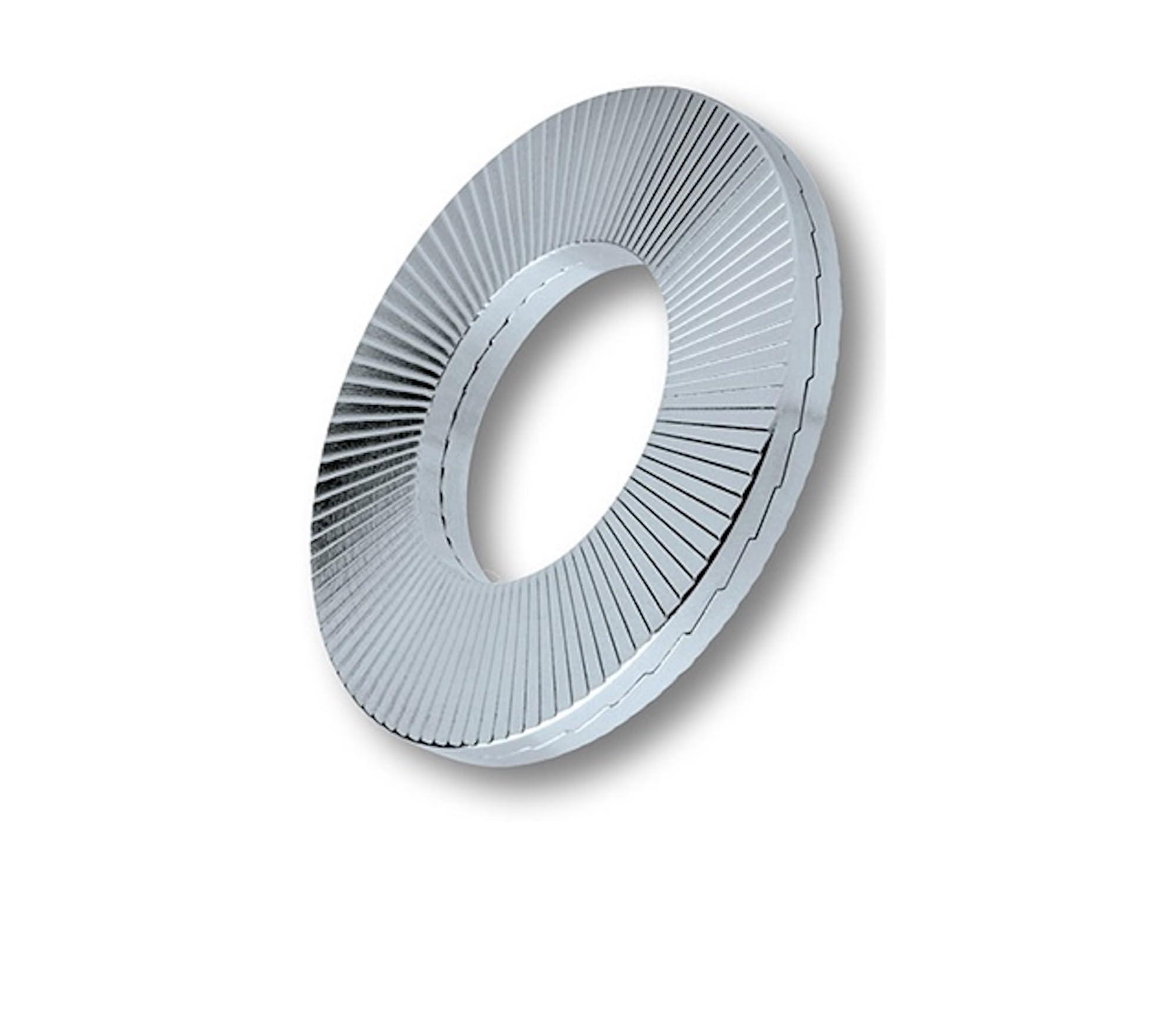

Oosato Wedge Lock Washer - Steel (M8×16-6 - Outer Diameter: φ16-6mm - Thickness: 2-7mm (Set of 8)
Product images are for reference only. Actual product colors and designs may differ. Displayed colors may also appear different from the actual product due to monitor settings and lighting conditions. Please note that product specifications and weight may change during production or due to manufacturer improvements.
Brand Name: Oosato
Material: Metal
Manufacturer: Oosato Brand: HEICO Size Specification: M8 Inner Diameter: φ8.6mm Outer Diameter: φ16.6mm Thickness: 2.7mm Material: Steel Features: ・Washer equipped with the HEICO-LOCK wedge lock system for superior holding power ・ The HEICO-LOCK wedge lock system is an excellent system that prevents bolt loosening by utilizing preload (axial force) rather than friction. Provided as a pre-assembled pair with a wedge-shaped inner surface and a radial tooth surface on the outer side. Secures bolts under both low and high loads. Demonstrates excellent performance under dynamic loads. Compatible with environments using lubricants. Easy to install and remove. Reusable. Wide type with large outer diameter (Large Washer)
- 8 pieces per set
Applications
The wide type is recommended for large holes, long holes, painted surfaces, and soft materials like aluminum.
Notes
* Locking function is not achieved when used with other washers such as flat washers.
4510676828496
Wedge Lock Washer
(text created at , 2025-05-11)
Product images are for reference only. Actual product colors and designs may differ. Displayed colors may also appear different from the actual product due to monitor settings and lighting conditions. Please note that product specifications and weight may change during production or due to manufacturer improvements.
Brand Name: Oosato
Material: Metal
Manufacturer: Oosato Brand: HEICO Size Specification: M8 Inner Diameter: φ8.6mm Outer Diameter: φ16.6mm Thickness: 2.7mm Material: Steel Features: ・Washer equipped with the HEICO-LOCK wedge lock system for superior holding power ・ The HEICO-LOCK wedge lock system is an excellent system that prevents bolt loosening by utilizing preload (axial force) rather than friction. Provided as a pre-assembled pair with a wedge-shaped inner surface and a radial tooth surface on the outer side. Secures bolts under both low and high loads. Demonstrates excellent performance under dynamic loads. Compatible with environments using lubricants. Easy to install and remove. Reusable. Wide type with large outer diameter (Large Washer)
- 8 pieces per set
Applications
The wide type is recommended for large holes, long holes, painted surfaces, and soft materials like aluminum.
Notes
* Locking function is not achieved when used with other washers such as flat washers.
4510676828496
Wedge Lock Washer
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
50x17x59 mm
Package
Weight (Approx.):
Weight (Approx.):
50 g
1,086 JPY (Including Tax)
