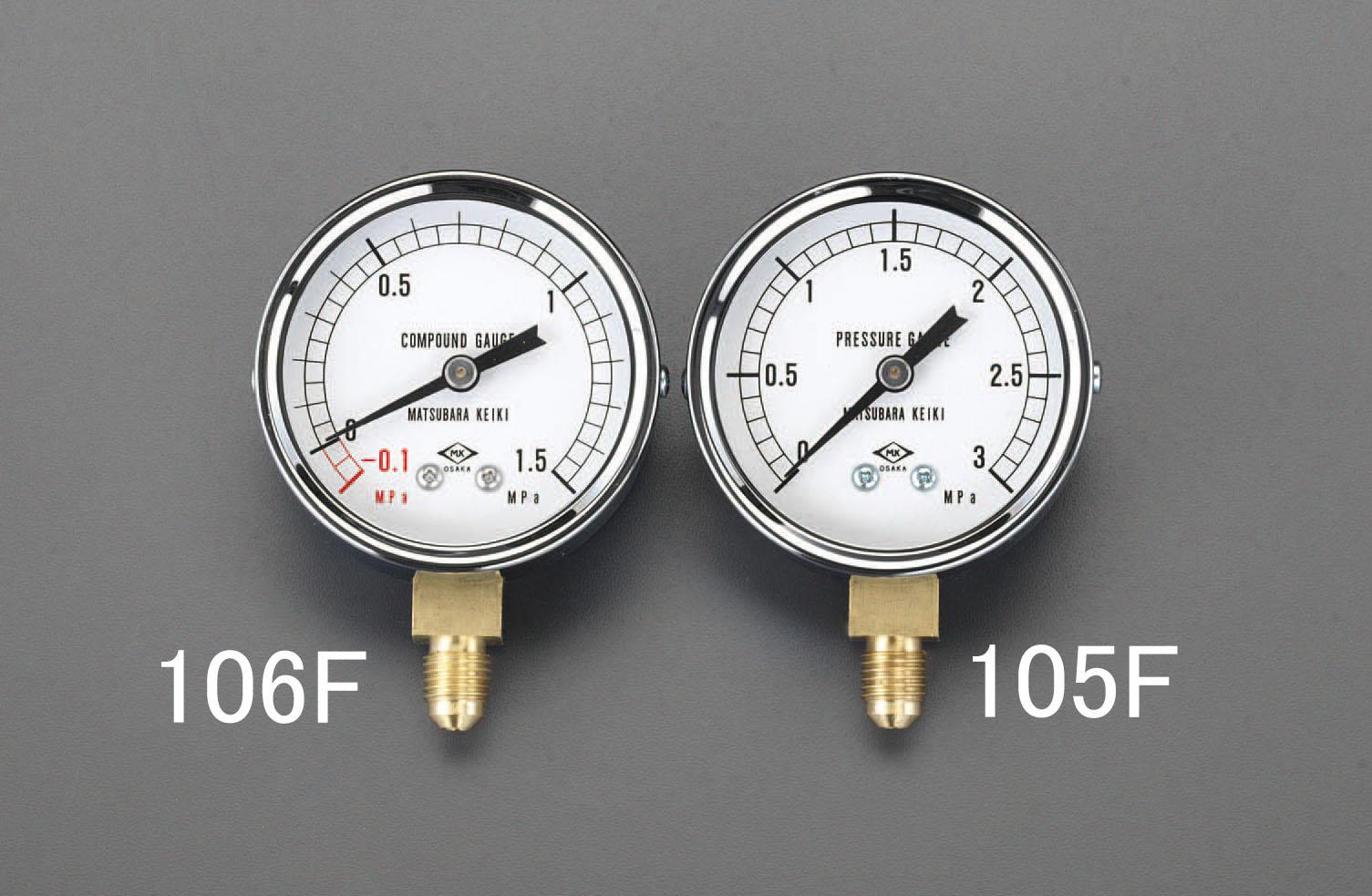

ESCO -0.1/3MPa Flare Type Compound Gauge EA106F-1
JAN
4518340001022
ASIN
B002P3P7A8
Maker
Model No.
EA106F-1
Color
Size
Description
Description
Type: Bourdon tube, flare type
Pressure range: -0.1/3MPa
Mounting thread: 1/4“ flare (UNF 7/16”)
Pressure gauge scale: 30 divisions
Material: Brass: Brass, Case: Alloy, Bourdon Tube: Aluminum Plus
Gauge Outer Diameter: 63mm diameter
Gauge Thickness: 32mm
Can be installed by flaring a 1/4“ copper tube.
A 1/4” charge hose can also be connected directly.
Does not include a zero adjustment screw. *A Bourdon tube is a tube with an elliptical cross-section bent into a circular shape, with one end fixed and the other end closed. It is widely used for safety and process control applications.
Brand Name: Esco
Type: Bourdon tube type, flare type
Pressure Range: -0.1/3MPa
Mounting Thread: 1/4“ Flare (UNF 7/16”)
Pressure Gauge Scale: 30 divisions
Material: Alloy Brass: Brass, Case: Alloy, Bourdon Tube: Aluminum Plus
Gauge Outer Diameter: 63mm
Can be mounted by flaring 1/4" copper tubing.
A 1/4" charge hose can also be directly connected.
4518340001022
ESCO -0.1/3MPa Flare Type Compound Gauge EA106F-1
(text created at , 2025-05-10)
Type: Bourdon tube, flare type
Pressure range: -0.1/3MPa
Mounting thread: 1/4“ flare (UNF 7/16”)
Pressure gauge scale: 30 divisions
Material: Brass: Brass, Case: Alloy, Bourdon Tube: Aluminum Plus
Gauge Outer Diameter: 63mm diameter
Gauge Thickness: 32mm
Can be installed by flaring a 1/4“ copper tube.
A 1/4” charge hose can also be connected directly.
Does not include a zero adjustment screw. *A Bourdon tube is a tube with an elliptical cross-section bent into a circular shape, with one end fixed and the other end closed. It is widely used for safety and process control applications.
Brand Name: Esco
Type: Bourdon tube type, flare type
Pressure Range: -0.1/3MPa
Mounting Thread: 1/4“ Flare (UNF 7/16”)
Pressure Gauge Scale: 30 divisions
Material: Alloy Brass: Brass, Case: Alloy, Bourdon Tube: Aluminum Plus
Gauge Outer Diameter: 63mm
Can be mounted by flaring 1/4" copper tubing.
A 1/4" charge hose can also be directly connected.
4518340001022
ESCO -0.1/3MPa Flare Type Compound Gauge EA106F-1
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
68x34x86 mm
Package
Weight (Approx.):
Weight (Approx.):
160 g
4,337 JPY (Including Tax)
Stock :
4
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
