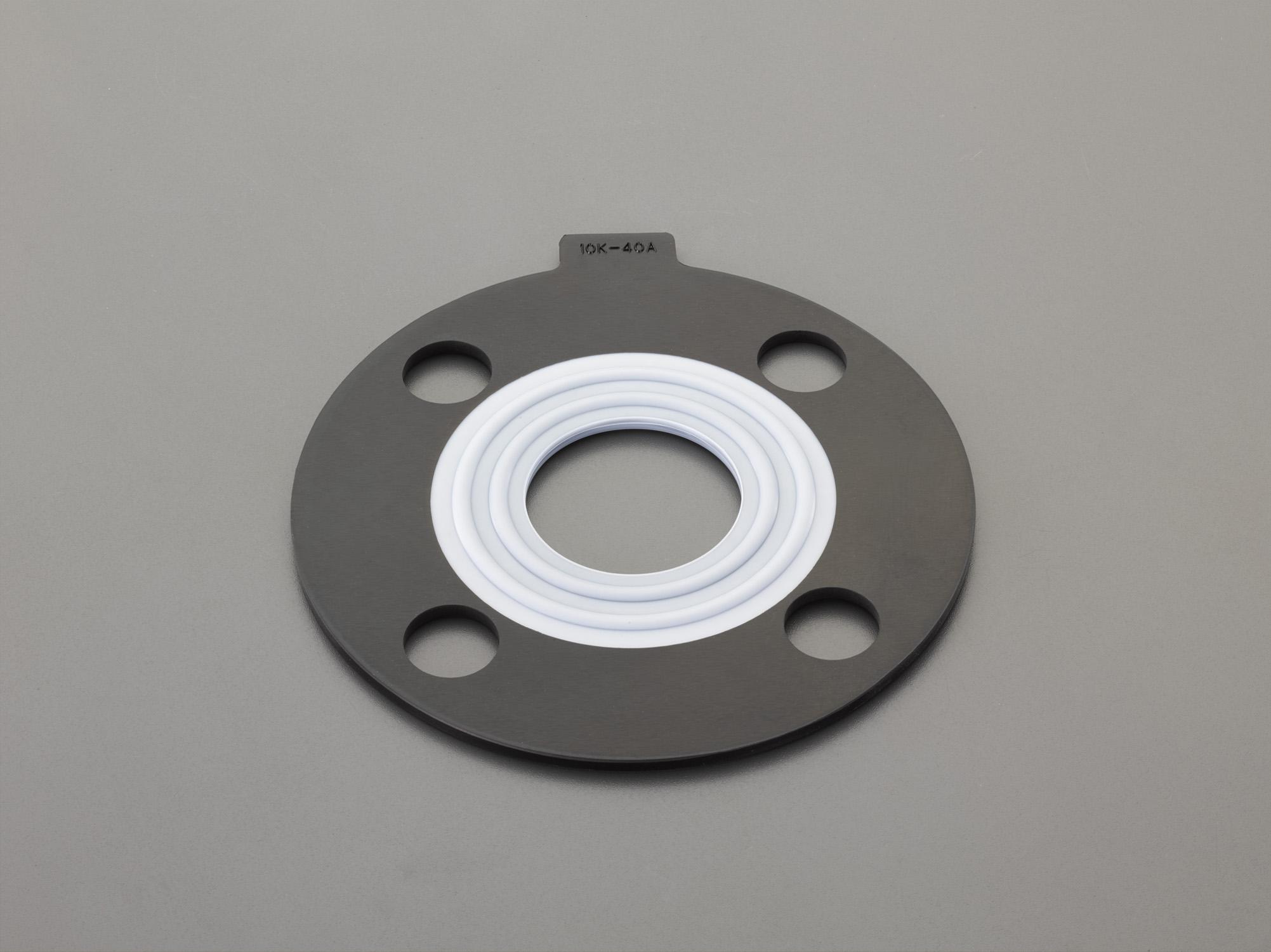

#15 Flange Gasket
JAN
4518340023161
ASIN
B002P967AG
Maker
Model No.
EA471AD-15
Color
Size
d2: 41 mm, d1: 26 mm
Description
Material: Ethylene Propylene Rubber (EPDM) Operating Temperature: -40/100°C Nominal Diameter: 15 (1/2") Maximum Working Pressure: 0.98MPa (10kg/cm²) Inner Diameter (D3): 18mm PCD (D2): 70mm Outer Diameter (D1): 93mm Number of Holes (n): 4mm Hole Diameter (e): 15mm Dimensions: d2: 41mm, d1: 26mm Thickness: 3mm
Brand Name: Esco
Material: Rubber
Material Composition: Ethylene Propylene Rubber (EPDM)
Operating Temperature: -40/100°C
Nominal Diameter: 15 (1/2")
Maximum Working Pressure: 0.98MPa (10kg/cm²)
Inner Diameter (D3): 18mm
PCD (D2): 70mm
Outer Diameter (D1): 93mm
Number of Holes (n): 4mm
Hole Diameter (e): 15mm
4518340023161
#15 Flange Gasket
(text created at , 2025-05-11)
Brand Name: Esco
Material: Rubber
Material Composition: Ethylene Propylene Rubber (EPDM)
Operating Temperature: -40/100°C
Nominal Diameter: 15 (1/2")
Maximum Working Pressure: 0.98MPa (10kg/cm²)
Inner Diameter (D3): 18mm
PCD (D2): 70mm
Outer Diameter (D1): 93mm
Number of Holes (n): 4mm
Hole Diameter (e): 15mm
4518340023161
#15 Flange Gasket
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
375 JPY (Including Tax)
Stock :
25
Scheduled Shipping:
2026-04-07
Quantity :
Reference Price from Other Stores
