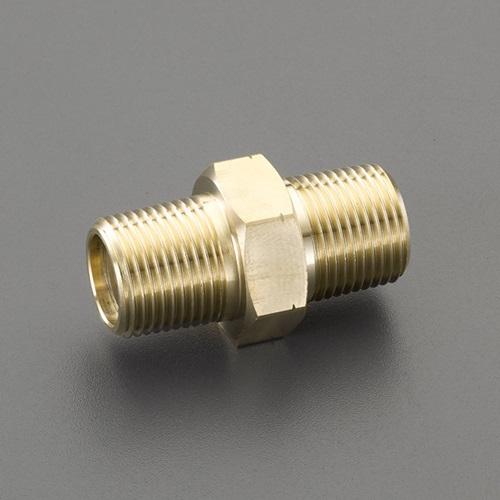

ESCO R1/8 Check Valve (Brass) EA425EC-1
JAN
4518340381988
ASIN
B002P3Z4XI
Maker
Model No.
EA425EC-1
Color
Size
R1/8"
Description
ESCO Check Valve - Brass
Thread Size (PT): 1/8" Operating Pressure: 4.9 MPa (50 kgf/cm²) Material: Brass Cracking Pressure: 7 kPa (0.07 kg/cm²) Maximum Pressure Rating: 7.35 MPa (75 kgf/cm²) O-Ring Material: Viton Applications: Machine tools, cleaning machines, various hydraulic equipment, analyzers, boilers, burners, construction machinery, drip prevention, gas mixers, fluid control systems
Brand Name: Esco
Material: Brass
Thread Size (PT): 1/8”
Working Pressure: 4.9MPa (50kgf/cm²)
Cracking Pressure: 7kPa (0.07kg/cm²)
Working Pressure: 7.35MPa (75kgf/cm²)
O-ring Material: Viton
Applications: Machine tools, cleaning machines, various hydraulic equipment, analyzers, boilers, burners, construction machinery, drip prevention, gas mixers, fluid control systems
4518340381988
Esco R1/8 Check Valve (Brass) EA425EC-1
(text created at , 2025-05-09)
Thread Size (PT): 1/8" Operating Pressure: 4.9 MPa (50 kgf/cm²) Material: Brass Cracking Pressure: 7 kPa (0.07 kg/cm²) Maximum Pressure Rating: 7.35 MPa (75 kgf/cm²) O-Ring Material: Viton Applications: Machine tools, cleaning machines, various hydraulic equipment, analyzers, boilers, burners, construction machinery, drip prevention, gas mixers, fluid control systems
Brand Name: Esco
Material: Brass
Thread Size (PT): 1/8”
Working Pressure: 4.9MPa (50kgf/cm²)
Cracking Pressure: 7kPa (0.07kg/cm²)
Working Pressure: 7.35MPa (75kgf/cm²)
O-ring Material: Viton
Applications: Machine tools, cleaning machines, various hydraulic equipment, analyzers, boilers, burners, construction machinery, drip prevention, gas mixers, fluid control systems
4518340381988
Esco R1/8 Check Valve (Brass) EA425EC-1
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,398 JPY (Including Tax)
Stock :
8
Scheduled Shipping:
2026-07-14
