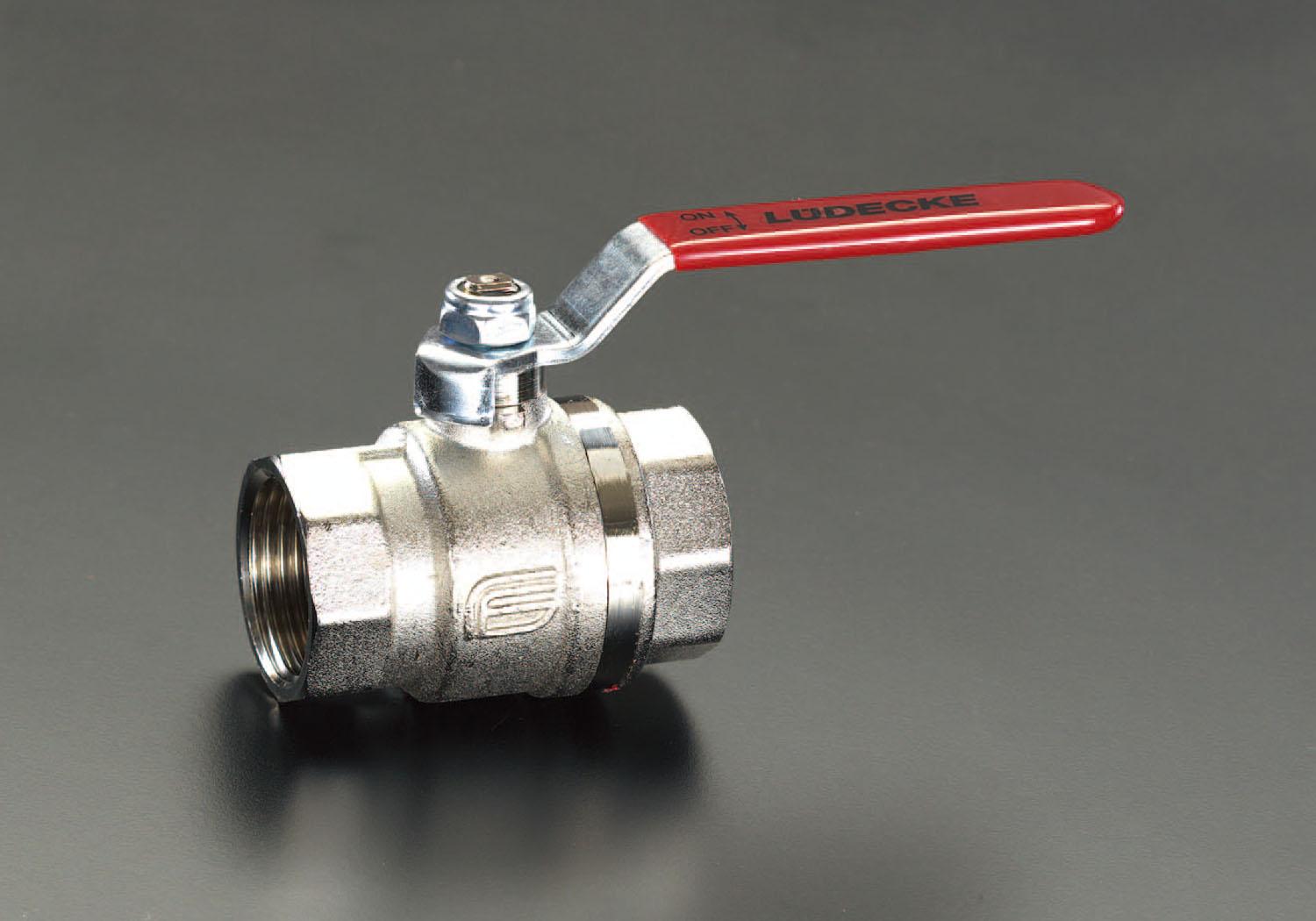

G1/4 Ball Valve (Full Bore)
JAN
4518340546370
ASIN
B002P3V8LU
Maker
Model No.
EA470A-12
Color
Size
1-1/4"
Description
Description
Thread Size (PF): 1-1/4"
Maximum Pressure Rating: 2MPa
Operating Temperature (Water): -10°C to 100°C
Pressure rating at water temperatures 0°C to 20°C
For air use, operate at 40°C or below and 0.9MPa or less.
Material: Brass (Nickel Plated)
Full Bore Type
Brand Name: Esco
▪️ Thread Size (G): 1-1/4"
▪️ Maximum Pressure Rating: 2MPa
▪️Operating Temperature (Water): -15°C to 120°C▪️Material: Body／Brass (Nickel Plated) Spindle, Nut, Ball／MS58 Brass (Nickel Plated) Ball Seal／PTFE Spindle Seal／Fluororubber O-Ring Handle／Steel (Zinc Plated, PVC Coated)
▪️Weight (g): 813
▪️Pressure rating at water temperatures 0°C to 20°C
▪️Full bore type
▪️For construction, industrial, craft, agricultural, or civil engineering equipment
4518340546370
“G1/4” “Ball Valve (Full Bore)”
(text created at , 2025-05-10)
Thread Size (PF): 1-1/4"
Maximum Pressure Rating: 2MPa
Operating Temperature (Water): -10°C to 100°C
Pressure rating at water temperatures 0°C to 20°C
For air use, operate at 40°C or below and 0.9MPa or less.
Material: Brass (Nickel Plated)
Full Bore Type
Brand Name: Esco
▪️ Thread Size (G): 1-1/4"
▪️ Maximum Pressure Rating: 2MPa
▪️Operating Temperature (Water): -15°C to 120°C▪️Material: Body／Brass (Nickel Plated) Spindle, Nut, Ball／MS58 Brass (Nickel Plated) Ball Seal／PTFE Spindle Seal／Fluororubber O-Ring Handle／Steel (Zinc Plated, PVC Coated)
▪️Weight (g): 813
▪️Pressure rating at water temperatures 0°C to 20°C
▪️Full bore type
▪️For construction, industrial, craft, agricultural, or civil engineering equipment
4518340546370
“G1/4” “Ball Valve (Full Bore)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
265x60x300 mm
Package
Weight (Approx.):
Weight (Approx.):
820 g
9,545 JPY (Including Tax)
Stock :
14
Scheduled Shipping:
2026-02-24
Quantity :
Reference Price from Other Stores
