Sun Electronics Splitter 2SPA-K77-20BP
JAN
4534022733081
ASIN
B06X9SQ7DS
Maker
Model No.
2SPA-K77-20BP
Color
Size
Description

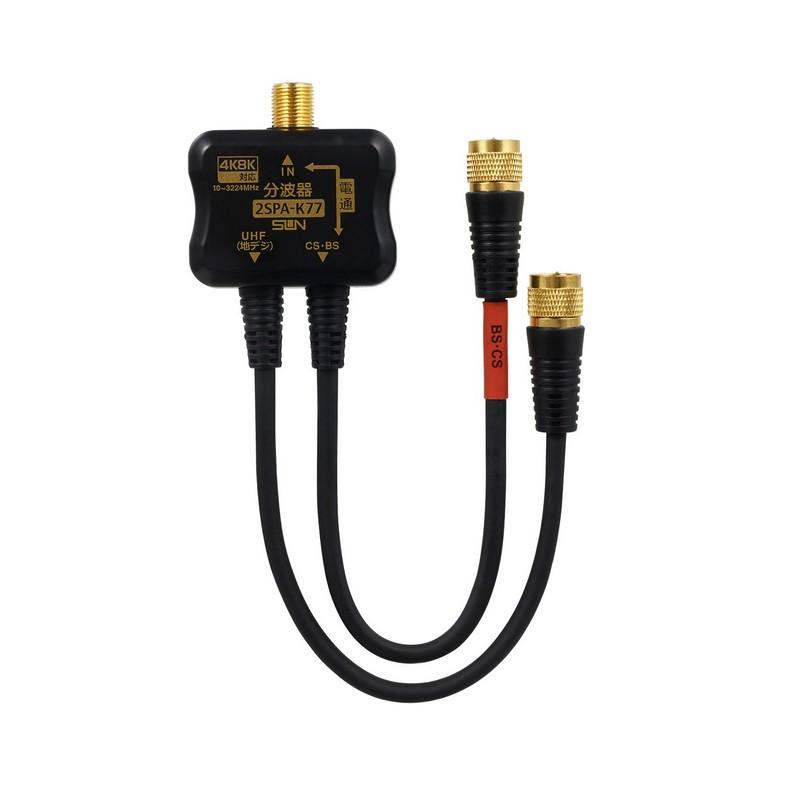

Sun Electronics - 4K/8K Satellite Broadcast Compatible - Knurled Plug Type - Splitter with Cable - 2SPA-K77-20BP
:High-performance filter circuitry separates mixed radio waves into CS/BS (new 4K/8K satellite broadcast compatible) and UHF (terrestrial digital) signals. Features triple-shielded coaxial cable for enhanced resistance to external noise interference. The F-type connector with knurled finish at the output cable end ensures secure connection. Gold-plated specification delivers high reliability.
The use of 2.5C cable allows for easy cable routing. Includes 2m input cable and 0.2m output cable. Unit and cable color: Black.
Brand Name: SUN
CE: Frequency Bands (MHz): 10–76, 76–770, 1032–1489, 1489–2150, 2150–2681, 2681–3224
CE: Passband Loss (dB or less): 10–76 1.0, 76–770 1.5, 1032–1489 2.0, 1489–2150 2.5, 2150–2681 3.0, 2681–3224 3.5
CE: Stopband Attenuation (dB or more): 10–76 13, 76–770 15, 1032–1489 20, 1489–2150 18, 2150–2681 18, 2681–3224 18
CE: V.S.W.R.: 10–76 1.8, 76–770 1.8, 1032–1489 2.0, 1489–2150 2.5, 2150–2681 2.5, 2681–3224 2.5
4534022733081
Sun Electronics Splitter 2SPA-K77-20BP
(text created at , 2025-07-01)
:High-performance filter circuitry separates mixed radio waves into CS/BS (new 4K/8K satellite broadcast compatible) and UHF (terrestrial digital) signals. Features triple-shielded coaxial cable for enhanced resistance to external noise interference. The F-type connector with knurled finish at the output cable end ensures secure connection. Gold-plated specification delivers high reliability.
The use of 2.5C cable allows for easy cable routing. Includes 2m input cable and 0.2m output cable. Unit and cable color: Black.
Brand Name: SUN
CE: Frequency Bands (MHz): 10–76, 76–770, 1032–1489, 1489–2150, 2150–2681, 2681–3224
CE: Passband Loss (dB or less): 10–76 1.0, 76–770 1.5, 1032–1489 2.0, 1489–2150 2.5, 2150–2681 3.0, 2681–3224 3.5
CE: Stopband Attenuation (dB or more): 10–76 13, 76–770 15, 1032–1489 20, 1489–2150 18, 2150–2681 18, 2681–3224 18
CE: V.S.W.R.: 10–76 1.8, 76–770 1.8, 1032–1489 2.0, 1489–2150 2.5, 2150–2681 2.5, 2681–3224 2.5
4534022733081
Sun Electronics Splitter 2SPA-K77-20BP
(text created at , 2025-07-01)
Package
Size (Approx.):
Size (Approx.):
53x46x200 mm
Package
Weight (Approx.):
Weight (Approx.):
170 g
6,073 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-06-24
Quantity :
Reference Price from Other Stores
