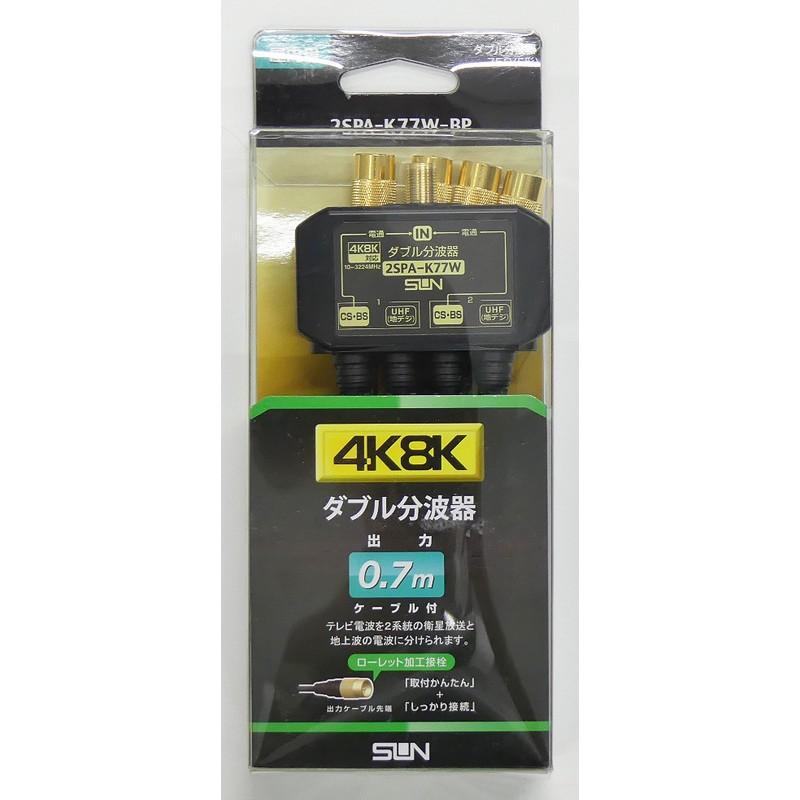

Sun Electronics Double Splitter 2SPA-K77W-BP
JAN
4534022733166
ASIN
B07B3XLP8H
Maker
Model No.
2SPA-K77W-BP
Color
Size
Description
Sandenshi-2SPA-K77W-BP-4K8K Compatible-Double Splitter
:High-performance filter circuitry separates mixed radio waves into two systems: CS/BS (compatible with new 4K8K satellite broadcasts) and UHF (terrestrial digital broadcasts).
Features triple-shielded coaxial cable for enhanced resistance to external noise interference.
F-type connectors with knurled tips on output cables ensure secure connections. Gold-plated specifications deliver high reliability.
The use of 2.5C cable allows for easy cable routing. Includes 2m input cable and 0.2m output cable. Unit and cable color: Black.
Brand Name: SUN
CE: Frequency Bands (MHz): 10–300, 300–770, 1032–1489, 1489–2150, 2150–2681, 2681–3224
CE: Passband Loss (dB or less): 10–300 5.0, 300–770 5.8, 1032–1489 7.0, 1489–2150 9.0, 2150–2681 11.0, 2681–3224 14.0
CE: Stopband attenuation (dB or more): 10–300 25, 300–770 20, 1032–1489 18, 1489–2150 18, 2150–2681 18, 2681–3224 18
CE: Inter-terminal coupling loss (dB or more): 10 to 300 15, 300 to 770 18, 1032 to 1489 15, 1489 to 2150 15, 2150 to 2681 15, 2681 to 3224 15
CE: V.S.W.R.: 10 to 300 1.8, 300 to 770 1.8, 1032 to 1489 2.0, 1489 to 2150 2.5, 2150 to 2681 2.5, 2681 to 3224 2.5
CE :Impedance (Ω): 75 (F-type)
CE :Notes: Current flow between CS/BS output terminals and input terminals: DC 15V, 0.5A or less (both systems)
4534022733166
Sun Electronics Double Splitter 2SPA-K77W-BP
(text created at , 2025-06-30)
:High-performance filter circuitry separates mixed radio waves into two systems: CS/BS (compatible with new 4K8K satellite broadcasts) and UHF (terrestrial digital broadcasts).
Features triple-shielded coaxial cable for enhanced resistance to external noise interference.
F-type connectors with knurled tips on output cables ensure secure connections. Gold-plated specifications deliver high reliability.
The use of 2.5C cable allows for easy cable routing. Includes 2m input cable and 0.2m output cable. Unit and cable color: Black.
Brand Name: SUN
CE: Frequency Bands (MHz): 10–300, 300–770, 1032–1489, 1489–2150, 2150–2681, 2681–3224
CE: Passband Loss (dB or less): 10–300 5.0, 300–770 5.8, 1032–1489 7.0, 1489–2150 9.0, 2150–2681 11.0, 2681–3224 14.0
CE: Stopband attenuation (dB or more): 10–300 25, 300–770 20, 1032–1489 18, 1489–2150 18, 2150–2681 18, 2681–3224 18
CE: Inter-terminal coupling loss (dB or more): 10 to 300 15, 300 to 770 18, 1032 to 1489 15, 1489 to 2150 15, 2150 to 2681 15, 2681 to 3224 15
CE: V.S.W.R.: 10 to 300 1.8, 300 to 770 1.8, 1032 to 1489 2.0, 1489 to 2150 2.5, 2150 to 2681 2.5, 2681 to 3224 2.5
CE :Impedance (Ω): 75 (F-type)
CE :Notes: Current flow between CS/BS output terminals and input terminals: DC 15V, 0.5A or less (both systems)
4534022733166
Sun Electronics Double Splitter 2SPA-K77W-BP
(text created at , 2025-06-30)
Package
Size (Approx.):
Size (Approx.):
80x40x201 mm
Package
Weight (Approx.):
Weight (Approx.):
220 g
9,230 JPY (Including Tax)
