TOMIX N Gauge Wide PC Curved Track C317-45-WP F 4-Piece Set 1772 Railroad Model Accessories

4543736017721

B00TS4SKO2

1772

TOMIX N Gauge Curved Track. Wide-curve cant track with a radius of 317mm, a curve angle of 45°, and a width of 37mm. Set of 4 pieces (180°). Features cant where the outer rail is higher than the inner rail, allowing trains to lean inward while running just like the real thing (cant slope angle is approximately 4 degrees).
Compatible with existing TOMIX track.
Optional fences, handrails, and side walls can be attached to the rail sides.
Compatible with single-track bridge piers by attaching the optional single-track pier base to the underside.
Can be used as double-track rail by connecting the optional C280-45-WP to the inside or the optional C354-45-WP to the outside.
When used as double track, attach a coupling for wide rail cant sections to the underside to accommodate double track elevated bridge piers.
Power is supplied by attaching a feeder for wide rails/slab rails to the underside (slab rail feeders can also be attached; conventional feeders cannot be attached).
Sensors for wide rails/slab rails can be attached with user modifications (Slab rail sensors and one-touch installation sensors cannot be attached).
The C317-45° is a curved track section. Eight pieces form a circle with a track center radius of 317mm. Compared to the standard C280, it is a double-track curved section positioned one track outward.

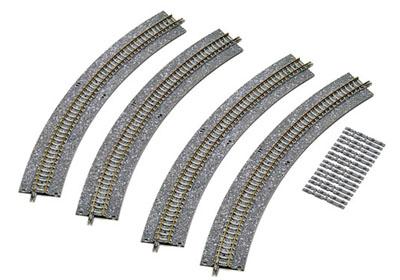

[Set Contents] Wide PC Curve Rail C317-45-WP (F) ×4, Wide Rail Joint Runner ×8
Brand Name: TOMYTEC
Unisex
Main Unit
Material: Plastic
Recommended Age: 15 years and older
4543736017721
TOMIX N Gauge Wide PC Curve Rail C317-45-WP F 4-Piece Set 1772 Model Railroad Supplies
(text created at , 2025-05-11)

63x23x283 mm

102 g
