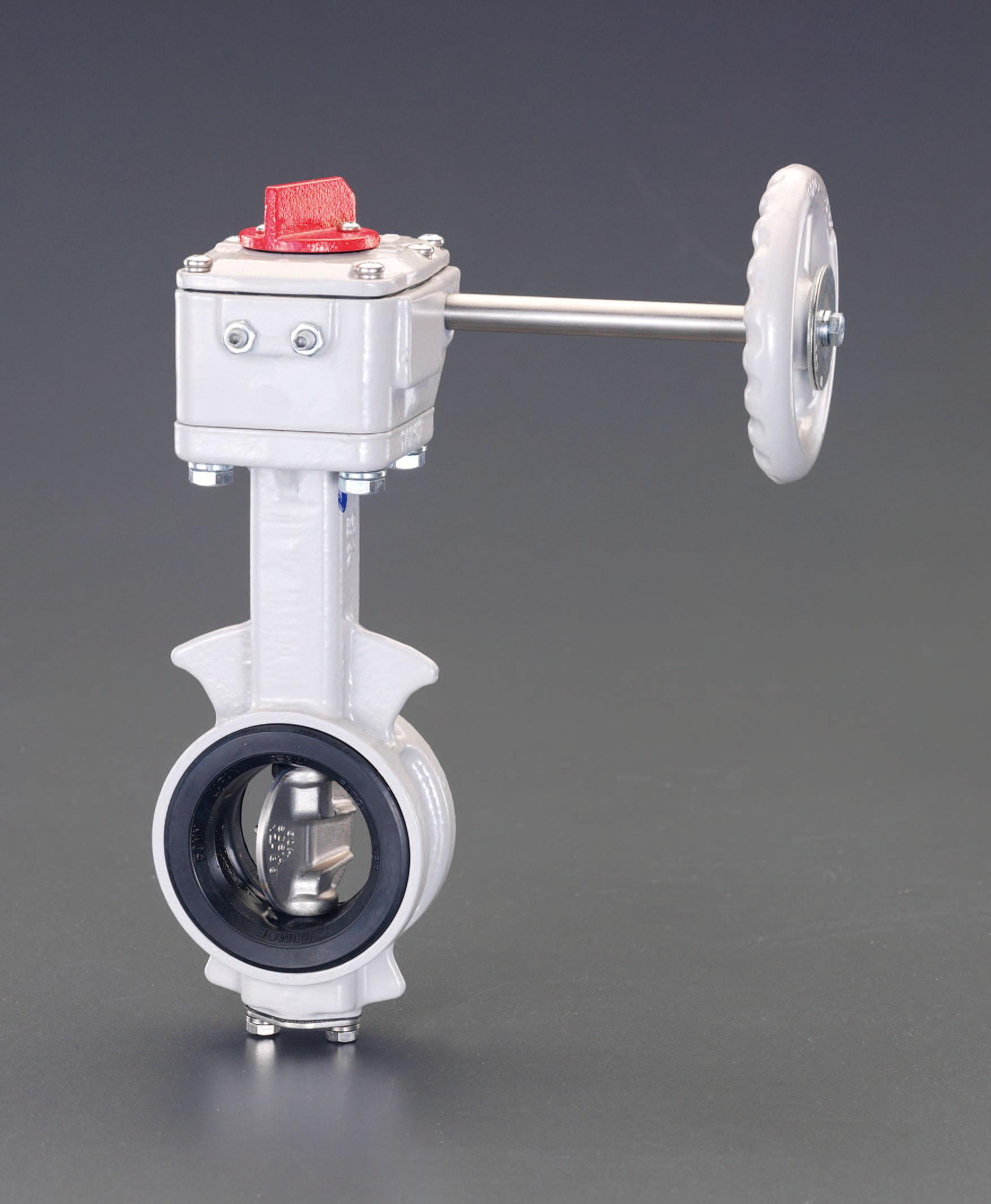

ESCO 2-1/2 Warm Gear Damper EA470EC-24
JAN
4548745163315
ASIN
B004ORGXPQ
Maker
Model No.
EA470EC-24
Color
Size
JIS B2002 (46 series)
Description
ESCO Damper EA470EC
Worm Gear Type\
Nominal Diameter: 65A (2-1/2")\
Maximum Temperature Range: -10/80°C\
Material: Body: FCD450, Valve Body: SCS14\
Maximum Working Pressure: 1.0MPa\
Applicable Flange: 5K/10K (JIS), 125lb/150lb (ANSI)
Brand Name: Esco
Material: Body: FCD450
Worm Gear Type
Nominal Diameter: 65A (2-1/2")
Maximum Temperature Range: -10/80°C
Material: Body: FCD450, Disc: SCS14
Maximum Working Pressure: 1.0MPa
4548745163315\ nB004ORGXPQ
ESCO 2-1/2" Worm Gear Damper EA470EC-24
(text created at , 2025-11-12)
Worm Gear Type\
Nominal Diameter: 65A (2-1/2")\
Maximum Temperature Range: -10/80°C\
Material: Body: FCD450, Valve Body: SCS14\
Maximum Working Pressure: 1.0MPa\
Applicable Flange: 5K/10K (JIS), 125lb/150lb (ANSI)
Brand Name: Esco
Material: Body: FCD450
Worm Gear Type
Nominal Diameter: 65A (2-1/2")
Maximum Temperature Range: -10/80°C
Material: Body: FCD450, Disc: SCS14
Maximum Working Pressure: 1.0MPa
4548745163315\ nB004ORGXPQ
ESCO 2-1/2" Worm Gear Damper EA470EC-24
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
23,779 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
