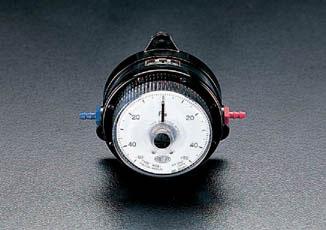

ESCO 0-50Pa Low Differential Pressure Gauge EA729SB-5A
JAN
4548745508666
ASIN
B006Y4BND4
Maker
Model No.
EA729SB-5A
Color
Size
80 (W) × 85 (D) × 26 (H) mm
Description
ESCO-ESCO-EA729SB-5A-0-50Pa Low Differential Pressure Gauge
Compact and lightweight design for flexible installation\
Unique mechanism resistant to abnormal high-pressure surges\
High-performance silicone diaphragm with low hysteresis\
Band-link mechanism for stable pointer movement\\ nScale Range: 0/50Pa\
Pressure Unit: Pa\
Pressure Measurement Method: Differential Pressure\
Pressure Receiving Element: Diaphragm\
Measured Gas: Air and Non-Corrosive Gases (Liquids Not Permitted)\
Scale Shape: Edgewise Type (Scale Length: Approx. 45mm) n Operating ambient temperature: -10/50°C (no freezing)\
Operating ambient humidity: 90% RH or less (no condensation)\
Instrument body pressure resistance: 50 kPa\
Housing material: Acrylic resin, PVC\
Durability vibration: 5/10 Hz full amplitude: 10 mm, 10/50Hz acceleration full amplitude: 39m/s² (2h each on 3 axes) \
Durability shock: 100m/s² (6 times each on 3 axes) \\ nSuitable piping: Vinyl or rubber tubing (ID 4)\
Connector: Integral molded with main body\
Connector polarity: Marked “H” for high-pressure side, “L” for low-pressure side on connector\
Dimensions: 80(W) × 85(D) × 26(H) mm\
Weight: 90 g\\ nStandard Mounting Position: Vertical (specified) \
Accuracy: Within ±2.5% F.S. (at 23°C) \
Receiving Element Material: Silicone Rubber \
Receiving Element Pressure Resistance: 20 kPa \
Brand Name: Esco \
Compact, lightweight type requiring minimal installation space \
Unique mechanism resistant to abnormal high-pressure surges \\ nHigh-performance silicone diaphragm with low hysteresis
Band-link mechanism for pointer stability
Scale range: 0/50Pa
Pressure unit: Pa
Pressure measurement method: Differential pressure
Pressure sensing element: Diaphragm
Measured gas: Air and non-corrosive gases (liquids not permitted)
4548745508666\ nB006Y4BND4
ESCO 0-50Pa Micro Differential Pressure Gauge EA729SB-5A
(text created at , 2025-11-12)
Compact and lightweight design for flexible installation\
Unique mechanism resistant to abnormal high-pressure surges\
High-performance silicone diaphragm with low hysteresis\
Band-link mechanism for stable pointer movement\\ nScale Range: 0/50Pa\
Pressure Unit: Pa\
Pressure Measurement Method: Differential Pressure\
Pressure Receiving Element: Diaphragm\
Measured Gas: Air and Non-Corrosive Gases (Liquids Not Permitted)\
Scale Shape: Edgewise Type (Scale Length: Approx. 45mm) n Operating ambient temperature: -10/50°C (no freezing)\
Operating ambient humidity: 90% RH or less (no condensation)\
Instrument body pressure resistance: 50 kPa\
Housing material: Acrylic resin, PVC\
Durability vibration: 5/10 Hz full amplitude: 10 mm, 10/50Hz acceleration full amplitude: 39m/s² (2h each on 3 axes) \
Durability shock: 100m/s² (6 times each on 3 axes) \\ nSuitable piping: Vinyl or rubber tubing (ID 4)\
Connector: Integral molded with main body\
Connector polarity: Marked “H” for high-pressure side, “L” for low-pressure side on connector\
Dimensions: 80(W) × 85(D) × 26(H) mm\
Weight: 90 g\\ nStandard Mounting Position: Vertical (specified) \
Accuracy: Within ±2.5% F.S. (at 23°C) \
Receiving Element Material: Silicone Rubber \
Receiving Element Pressure Resistance: 20 kPa \
Brand Name: Esco \
Compact, lightweight type requiring minimal installation space \
Unique mechanism resistant to abnormal high-pressure surges \\ nHigh-performance silicone diaphragm with low hysteresis
Band-link mechanism for pointer stability
Scale range: 0/50Pa
Pressure unit: Pa
Pressure measurement method: Differential pressure
Pressure sensing element: Diaphragm
Measured gas: Air and non-corrosive gases (liquids not permitted)
4548745508666\ nB006Y4BND4
ESCO 0-50Pa Micro Differential Pressure Gauge EA729SB-5A
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
22,679 JPY (Including Tax)
Stock :
3
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
