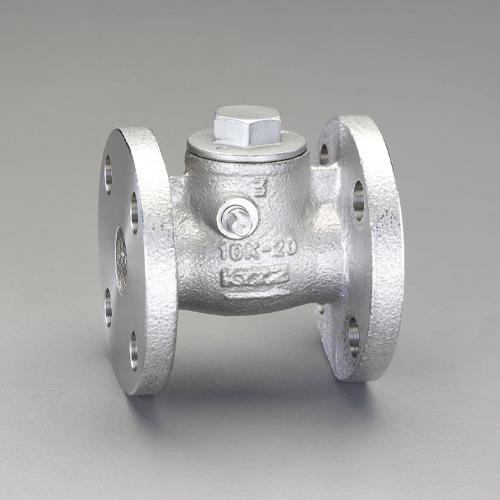

ESCO 2-Swing Check Valve (Flange Type) EA465AB-20
JAN
4548745581256
ASIN
B006Y4AV6O
Maker
Model No.
EA465AB-20
Color
Size
L: 180, H: 81
Description
Material: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos sheet gasket Maximum Pressure: Clean water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa Class: 10K Operation Method: Check Connection: Flange Connection (JIS B2220 10K) Nominal Size: 50 (2") Dimensions (mm): L: 180, H: 81 Weight: 6.4 kg
Brand Name: Esco
Material: Body: SCS13A
Material: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos Sheet Gasket
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam, Air, Non-Flammable Gas, Oil (180°C or below): 1.0MPa
Class: 10K
Operation: Check
Connection: Flange Connection (JIS B2220 10K)
Nominal Size: 50 (2")
Dimensions (mm): L: 180, H: 81
Weight: 6.4 kg
4548745581256
B006Y4AV6O
ESCO 2-Swing Check Valve (Flange Type) EA465AB-20
(text created at , 2025-11-13)
Brand Name: Esco
Material: Body: SCS13A
Material: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos Sheet Gasket
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam, Air, Non-Flammable Gas, Oil (180°C or below): 1.0MPa
Class: 10K
Operation: Check
Connection: Flange Connection (JIS B2220 10K)
Nominal Size: 50 (2")
Dimensions (mm): L: 180, H: 81
Weight: 6.4 kg
4548745581256
B006Y4AV6O
ESCO 2-Swing Check Valve (Flange Type) EA465AB-20
(text created at , 2025-11-13)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
104,273 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
Quantity :
