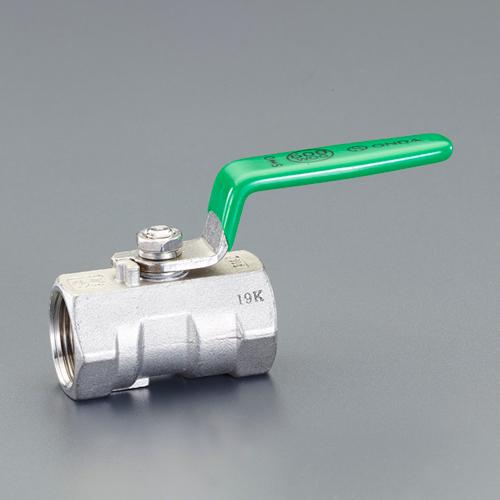

Rc3/8 Ball Valve (Stainless Steel)
JAN
4548745597554
ASIN
B006Y49O12
Maker
Model No.
EA470AF-3
Color
Size
Bore diameter: 6.8, Length: 44, Height: 29, Diameter: 40
Description
Material: Body: Stainless Steel (SCS13A), Stem: SUS316/SUS304, Ball: SUS316, Ball Seat: Glass-Filled PTFE, Packing: Glass-Filled PTFE, Handle: ZDC2 Type: Floating Reduced Bore Type Connection Type: Screw-in: JIS B 0203 Maximum Pressure (Water/Oil/Gas): Ambient: 4.12MPa (42kgf/cm²) Operating Temperature Range: -30℃/230℃ Thread Size (PT): 3/8" Dimensions (mm): Bore Diameter: 6.8, L: 44, H: 29, D: 40 Weight: 0.11kg
Brand Name: Esco
Material: Body: Stainless Steel (SCS13A)
Material: Body: Stainless Steel (SCS13A), Stem: SUS316/SUS304, Ball: SUS316, Ball Seat: Glass-Filled PTFE, Packing: Glass-Filled PTFE, Handle: ZDC2
Type: Floating
Reduced Bore Type
Connection Type: Screw-in: JIS B 0203
Maximum Pressure (Water/Oil/Gas): Ambient: 4.12MPa (42kgf/cm²)
Operating Temperature Range: -30℃/230℃
Thread Size (PT): 3/8"
Dimensions (mm): Bore Diameter: 6.8, L: 44, H: 29, D: 40
Weight: 0.11kg
4548745597554
“Rc3/8” “Ball Valve (Stainless Steel)”
(text created at , 2025-05-11)
Brand Name: Esco
Material: Body: Stainless Steel (SCS13A)
Material: Body: Stainless Steel (SCS13A), Stem: SUS316/SUS304, Ball: SUS316, Ball Seat: Glass-Filled PTFE, Packing: Glass-Filled PTFE, Handle: ZDC2
Type: Floating
Reduced Bore Type
Connection Type: Screw-in: JIS B 0203
Maximum Pressure (Water/Oil/Gas): Ambient: 4.12MPa (42kgf/cm²)
Operating Temperature Range: -30℃/230℃
Thread Size (PT): 3/8"
Dimensions (mm): Bore Diameter: 6.8, L: 44, H: 29, D: 40
Weight: 0.11kg
4548745597554
“Rc3/8” “Ball Valve (Stainless Steel)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,370 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-06-30
Quantity :
