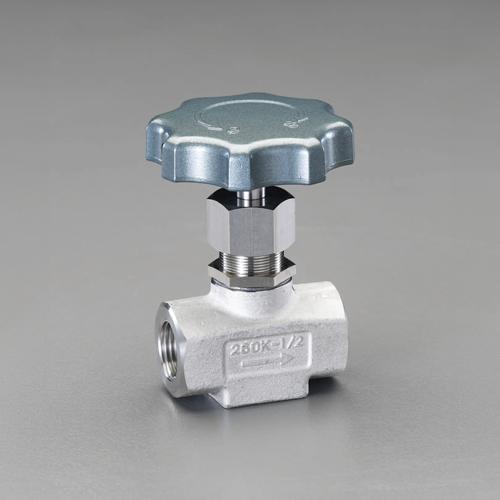

ESCO Rc1/2 Needle Valve (Stainless Steel) EA470CM-4
JAN
4548745597714
ASIN
B006Y4AAW4
Manufacturer
Model Number
EA470CM-4
Color
Size
d2: Rc1/2, H: 79, D1: 50, L: 55, I: 7, D2: 7, D3: 18, h: 20
Description
ESCO Needle Valve - Stainless Steel - EA470CM
Material: Body: SUS316, Stem: SUS630, Gasket: SUS316, Gasket Packing: PTFE, Panel Gasket: Non-asbestos Sheet, Set Screw: SUS304, Front Ferrule: SUS316, Back Ferrule: SUS316, Handle: ZDC\
Service Fluids: Air, Water, Oil, Gas, Chemicals\
Maximum Pressure: -20°C/ Ambient: 3.43MPa, Below 100°C: 2.94MPa, Below 150°C: 2.65MPa\
Panel tap provided at bottom of body for direct panel mounting\
For various equipment panel piping applications\
Mounting Screw (PT): 1/2”\
Size (mm): d2: Rc1/2, H: 79, D1:50, L:55, I:7, D2:7, D3:18, h:20\
Weight: 0.361kg
Brand Name: Esco
Material: Body: SUS316
Materials: Body: SUS316, Stem: SUS630, Gasket: SUS316, Gasket Packing: PTFE, Panel Gasket: Non-asbestos Sheet, Set Screw: SUS304, Front Ferrule: SUS316, Back Ferrule: SUS316, Handle: ZDC
Fluid Used: Air, Water, Oil, Gas, Chemicals
Maximum Pressure: -20℃/ Ambient: 3.43MPa, Below 100°C: 2.94MPa, Below 150°C: 2.65MPa
Panel tap provided at bottom of body for direct panel mounting
For various equipment panel piping
Mounting Screw (PT): 1/2"
Size (mm): d2: Rc1/2, H: 79, D1: 50, L:55, I:7, D2:7, D3:18, h:20
Weight:0.361kg
4548745597714\ nB006Y4AAW4
ESCO Rc1/2 Needle Valve (Stainless Steel) EA470CM-4
(text created at , 2025-11-12)
Material: Body: SUS316, Stem: SUS630, Gasket: SUS316, Gasket Packing: PTFE, Panel Gasket: Non-asbestos Sheet, Set Screw: SUS304, Front Ferrule: SUS316, Back Ferrule: SUS316, Handle: ZDC\
Service Fluids: Air, Water, Oil, Gas, Chemicals\
Maximum Pressure: -20°C/ Ambient: 3.43MPa, Below 100°C: 2.94MPa, Below 150°C: 2.65MPa\
Panel tap provided at bottom of body for direct panel mounting\
For various equipment panel piping applications\
Mounting Screw (PT): 1/2”\
Size (mm): d2: Rc1/2, H: 79, D1:50, L:55, I:7, D2:7, D3:18, h:20\
Weight: 0.361kg
Brand Name: Esco
Material: Body: SUS316
Materials: Body: SUS316, Stem: SUS630, Gasket: SUS316, Gasket Packing: PTFE, Panel Gasket: Non-asbestos Sheet, Set Screw: SUS304, Front Ferrule: SUS316, Back Ferrule: SUS316, Handle: ZDC
Fluid Used: Air, Water, Oil, Gas, Chemicals
Maximum Pressure: -20℃/ Ambient: 3.43MPa, Below 100°C: 2.94MPa, Below 150°C: 2.65MPa
Panel tap provided at bottom of body for direct panel mounting
For various equipment panel piping
Mounting Screw (PT): 1/2"
Size (mm): d2: Rc1/2, H: 79, D1: 50, L:55, I:7, D2:7, D3:18, h:20
Weight:0.361kg
4548745597714\ nB006Y4AAW4
ESCO Rc1/2 Needle Valve (Stainless Steel) EA470CM-4
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
