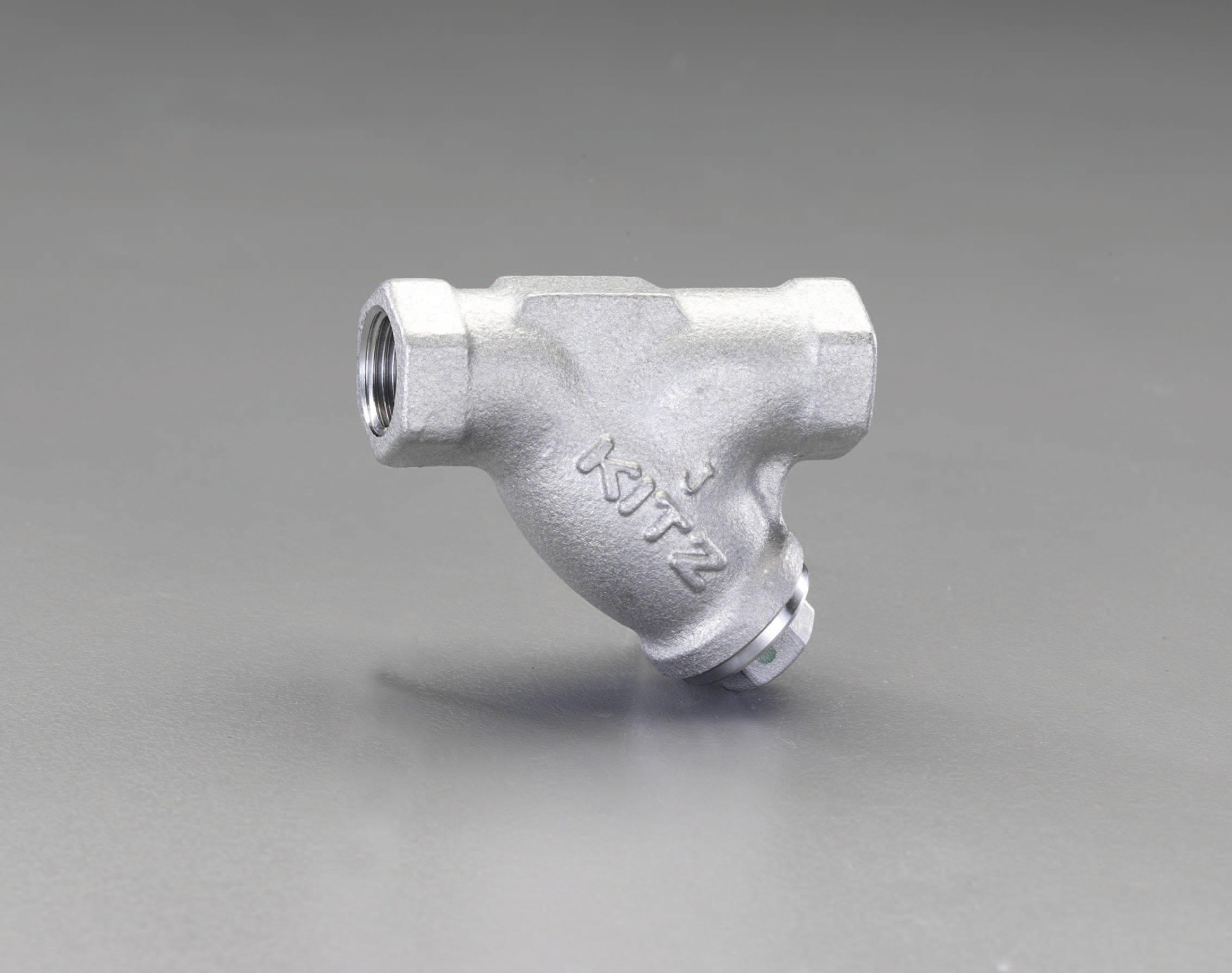

ESCO 1/2 Strainer EA465AK-4
JAN
4548745599442
ASIN
B006Y4B30M
Maker
Model No.
EA465AK-4
Color
Size
L: 85, H: 60, H1: 80, D: 18, l: 43
Description
Brand Name: Esco
Material: Body: SCS13A Cap: SCS13A/SUS304 Gasket: PTFE with filler Screen: SUS304 Plug: SUS304
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304
Maximum Pressure: Clean Water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa
Connection Type: Screw-in: JIS B 0203
Nominal Size: 15 (1/2”)
Dimensions (mm): L: 85, H: 60, H1: 80, D:18, l:43
Weight:0.398kg
4548745599442
B006Y4B30M
ESCO 1/2 Strainer EA465AK-4
(text created at , 2025-11-12)
Material: Body: SCS13A Cap: SCS13A/SUS304 Gasket: PTFE with filler Screen: SUS304 Plug: SUS304
Material: Body: SCS13A, Cap: SCS13A/SUS304, Gasket: PTFE with filler, Screen: SUS304 (40 mesh stainless steel wire mesh reinforced with 304 stainless steel plate), Cover Bolt/Nut: SUS304
Maximum Pressure: Clean Water (120°C or below): 2.0MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.2MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa
Connection Type: Screw-in: JIS B 0203
Nominal Size: 15 (1/2”)
Dimensions (mm): L: 85, H: 60, H1: 80, D:18, l:43
Weight:0.398kg
4548745599442
B006Y4B30M
ESCO 1/2 Strainer EA465AK-4
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
17,098 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
