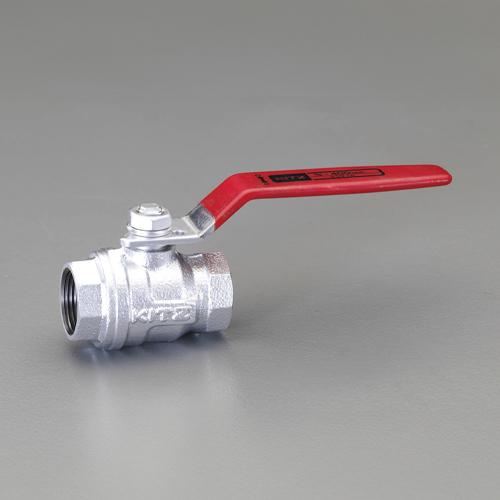

Rc1/4 Ball Valve (Ductile Iron)
JAN
4548745612219
ASIN
B006Y4A0OM
Maker
Model No.
EA470AS-2
Color
Size
L: 46, H: 38, D: 80
Description
ESCO-Ball Valve-Ductile Iron-EA470AS
Material: Body: Ductile Iron (FCD-S) + Electrogalvanized, Body Cap: Ductile Iron (FCD-S) + Electrogalvanized, Stem: Zinc-Resistant Brass Rod + Ni-Cr Plated, Ball: C3771BE + Ni-Cr Plated, Gland: C3604BD, Gland Packing: PTFE, Handle: SUS430, Gasket: PTFE, Ball Seat: Glass-filled PTFE
Type: Floating
Reduced Bore Type
Connection Type: Screw-in: JIS B 0203
Maximum Pressure: Water/Oil/Gas (38°C or below): 2.75MPa (28kgf/cm2), Steam: 0.98MPa (10kgf/cm2)
Thread Size (PT): 1/4”
Dimensions (mm): L: 46, H: 38, D: 80
Weight: 0.154kg
Brand Name: Esco
Material: Body: Ductile Iron (FCD-S) + Electrogalvanized
Material: Body: Ductile Iron (FCD-S) + Electrogalvanized, Body Cap: Ductile Iron (FCD-S) + Electrogalvanized, Stem: Zinc-Resistant Brass Rod + Ni-Cr Plated, Ball: C3771BE + Ni-Cr Plated, Gland: C3604BD, Gland Packing: PTFE, Handle: SUS430, Gasket: PTFE, Ball Seat: Glass-Filled PTFE
Maximum Pressure: Water/Oil/Gas (38°C or below): 2.75MPa (28kgf/cm²), Steam: 0.98MPa (10kgf/cm²)
Thread Size (PT): 1/4"
4548745612219
“Rc1/4” “Ball Valve (Ductile Iron)”
(text created at , 2025-05-11)
Material: Body: Ductile Iron (FCD-S) + Electrogalvanized, Body Cap: Ductile Iron (FCD-S) + Electrogalvanized, Stem: Zinc-Resistant Brass Rod + Ni-Cr Plated, Ball: C3771BE + Ni-Cr Plated, Gland: C3604BD, Gland Packing: PTFE, Handle: SUS430, Gasket: PTFE, Ball Seat: Glass-filled PTFE
Type: Floating
Reduced Bore Type
Connection Type: Screw-in: JIS B 0203
Maximum Pressure: Water/Oil/Gas (38°C or below): 2.75MPa (28kgf/cm2), Steam: 0.98MPa (10kgf/cm2)
Thread Size (PT): 1/4”
Dimensions (mm): L: 46, H: 38, D: 80
Weight: 0.154kg
Brand Name: Esco
Material: Body: Ductile Iron (FCD-S) + Electrogalvanized
Material: Body: Ductile Iron (FCD-S) + Electrogalvanized, Body Cap: Ductile Iron (FCD-S) + Electrogalvanized, Stem: Zinc-Resistant Brass Rod + Ni-Cr Plated, Ball: C3771BE + Ni-Cr Plated, Gland: C3604BD, Gland Packing: PTFE, Handle: SUS430, Gasket: PTFE, Ball Seat: Glass-Filled PTFE
Maximum Pressure: Water/Oil/Gas (38°C or below): 2.75MPa (28kgf/cm²), Steam: 0.98MPa (10kgf/cm²)
Thread Size (PT): 1/4"
4548745612219
“Rc1/4” “Ball Valve (Ductile Iron)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,472 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
