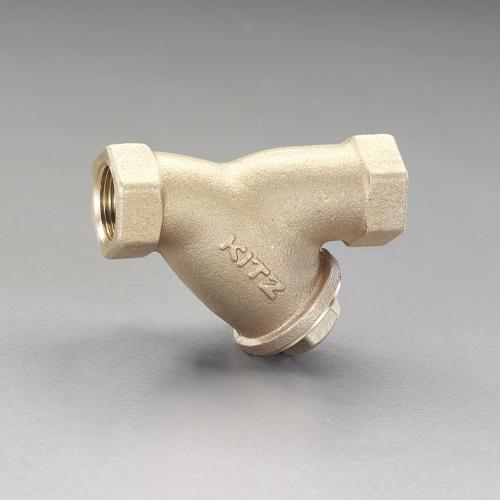

1/2 Y-Type Strainer
JAN
4548745612516
ASIN
B006Y4B9WE
Maker
Model No.
EA465AN-4
Color
Size
L: 80, H: 49, H1: 68
Description
ESCO Strainer EA465AN
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered stainless steel punched plate)
Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm2)
Connection Type: Screw-in: JIS B0203
Thread Size (PT): 1/2"
Size (mm): L: 80, H: 49, H1: 68
Weight: 0.312 kg
Brand Name: Esco
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos sheet, Screen: SUS304
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered punch stainless steel plate)
Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm²)
Connection Type: Screw-in: JIS B 0203
Dimensions (mm): L: 80, H: 49, H1: 68
4548745612516
“1/2” “Y-Type Strainer”
(text created at , 2025-05-12)
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered stainless steel punched plate)
Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm2)
Connection Type: Screw-in: JIS B0203
Thread Size (PT): 1/2"
Size (mm): L: 80, H: 49, H1: 68
Weight: 0.312 kg
Brand Name: Esco
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos sheet, Screen: SUS304
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered punch stainless steel plate)
Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm²)
Connection Type: Screw-in: JIS B 0203
Dimensions (mm): L: 80, H: 49, H1: 68
4548745612516
“1/2” “Y-Type Strainer”
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
5,929 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
