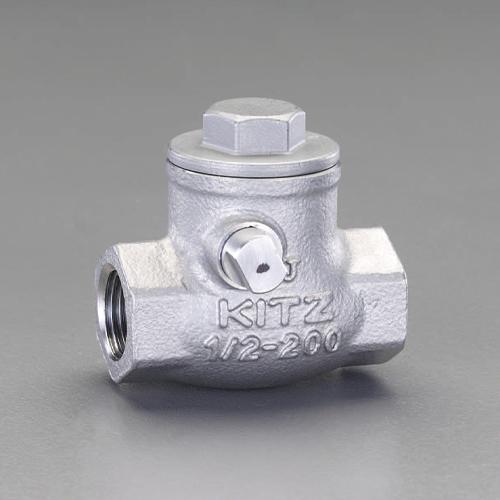

ESCO 1/2 Swing Check Valve EA465AA-4
JAN
4548745612547
ASIN
B006Y4ATCU
Maker
Model No.
EA465AA-4
Color
Size
L: 65, H: 45
Description
Material: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos sheet gasket Maximum Pressure: Clean water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam/Air/Non-flammable Gas/Oil (180°C or below): 1.0MPa Class: 10K Operation Method: Check Connection Type: Screw-in: JIS B 0203 Nominal Size (Size): 15 (1/2”) Size (mm): L: 65, H: 45 Weight: 0.4 kg
Brand Name: Esco
Material: Body: SCS13A
Material: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos Sheet Gasket
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam, Air, Non-Flammable Gas, Oil (180°C or below): 1.0MPa
Class: 10K
Operation: Check
Connection Type: Screw-in: JIS B 0203
Nominal Size: 15 (1/2”)
Size (mm): L: 65, H: 45
Weight: 0.4 kg
4548745612547
B006Y4ATCU
ESCO 1/2 Swing Check Valve EA465AA-4
(text created at , 2025-11-12)
Brand Name: Esco
Material: Body: SCS13A
Material: Body: SCS13A, Cap: SCS13A/SUS304, Disc: SCS13A, Hinge Pin: SUS304, Plug: SUS304, Plug Gasket: Non-asbestos Sheet Gasket
Maximum Pressure: Clean Water (120°C or below): 1.4MPa, Steam/Air/Non-flammable Gas/Oil (150°C or below): 1.1MPa, Steam, Air, Non-Flammable Gas, Oil (180°C or below): 1.0MPa
Class: 10K
Operation: Check
Connection Type: Screw-in: JIS B 0203
Nominal Size: 15 (1/2”)
Size (mm): L: 65, H: 45
Weight: 0.4 kg
4548745612547
B006Y4ATCU
ESCO 1/2 Swing Check Valve EA465AA-4
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
12,635 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
