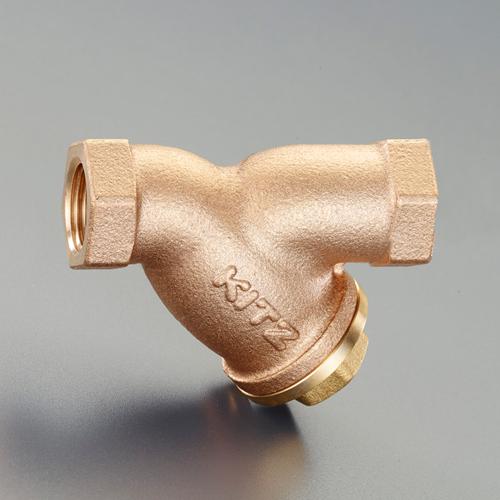

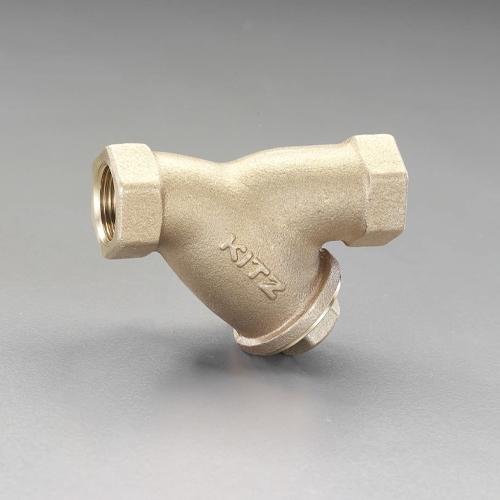

3/4" Y-Strainers
JAN
4548745612738
ASIN
B006Y4BA4G
Maker
Model No.
EA465AN-6
Color
Size
L: 100, H: 57, H1: 83
Description
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered perforated stainless steel plate) Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm²) Connection Type: Screw-in: JIS B 0203 Thread Size (PT): 3/4" Dimensions (mm): L: 100, H: 57, H1: 83 Weight: 0.533 kg
Brand Name: Esco
Material: Body: Bronze (CAC) Cap: C3771BE Gasket: Non-asbestos sheet Screen: SUS304
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered punch stainless steel plate)
Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm²)
Connection Type: Screw-in: JIS B 0203
Thread Size (PT): 3/4"
Dimensions (mm): L: 100, H: 57, H1: 83
Weight: 0.533 kg
4548745612738
“3/4” “Y-Type Strainer”
(text created at , 2025-05-10)
Brand Name: Esco
Material: Body: Bronze (CAC) Cap: C3771BE Gasket: Non-asbestos sheet Screen: SUS304
Material: Body: Bronze (CAC), Cap: C3771BE, Gasket: Non-asbestos, Screen: SUS304 (60° staggered punch stainless steel plate)
Maximum Pressure: Static water (120°C or below): 1.6MPa (16kgf/cm²)
Connection Type: Screw-in: JIS B 0203
Thread Size (PT): 3/4"
Dimensions (mm): L: 100, H: 57, H1: 83
Weight: 0.533 kg
4548745612738
“3/4” “Y-Type Strainer”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
7,565 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
