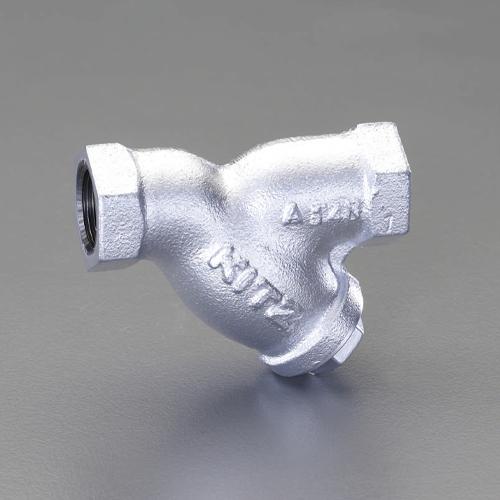

ESCO 1/4 Strainer (Ductile Iron) EA465AM-2
JAN
4548745613742
ASIN
B006Y4B6V8
Maker
Model No.
EA465AM-2
Color
Size
A: φ1.4mm, P: 2.4mm
Description
Description
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos sheet gasket, Screen: SUS304
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm2), Static water (120°C or below): 1.37MPa (14kgf/cm2)
Connection Type: Screw-in: JIS B 0203
Thread Size (PT): 1/4”
Dimensions (mm): L: 65, H: 46, H1: 63
Screen Hole Size: A: Diameter 1.4mm, B: 2.4mm
Weight: 0.23kg
This product uses a copper cap and is therefore not suitable for fluids such as ammonia or amine-based fluids.
Brand Name: Esco
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos Sheet, Screen: SUS304
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos Sheet Gasket, Screen: SUS304
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Screw Size (PT): 1/4"
4548745613742
ESCO 1/4 Strainer (Ductile Iron) EA465AM-2
(text created at , 2025-05-11)
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos sheet gasket, Screen: SUS304
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm2), Static water (120°C or below): 1.37MPa (14kgf/cm2)
Connection Type: Screw-in: JIS B 0203
Thread Size (PT): 1/4”
Dimensions (mm): L: 65, H: 46, H1: 63
Screen Hole Size: A: Diameter 1.4mm, B: 2.4mm
Weight: 0.23kg
This product uses a copper cap and is therefore not suitable for fluids such as ammonia or amine-based fluids.
Brand Name: Esco
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos Sheet, Screen: SUS304
Material: Body: Ductile Iron (FCD-S), Cap: C3771BE, Gasket: Non-asbestos Sheet Gasket, Screen: SUS304
Maximum Pressure: Air, Gas, Oil, Steam, Pulsating Water (220°C or below): 0.98MPa (10kgf/cm²), Static Water (120°C or below): 1.37MPa (14kgf/cm²)
Screw Size (PT): 1/4"
4548745613742
ESCO 1/4 Strainer (Ductile Iron) EA465AM-2
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,144 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
