M10x90 [High Strength/High Tensile] Hex Socket Head Cap Screw

4548745654196

B006Y4AANS

EA949DJ-1090

Minimum: 4.55mm

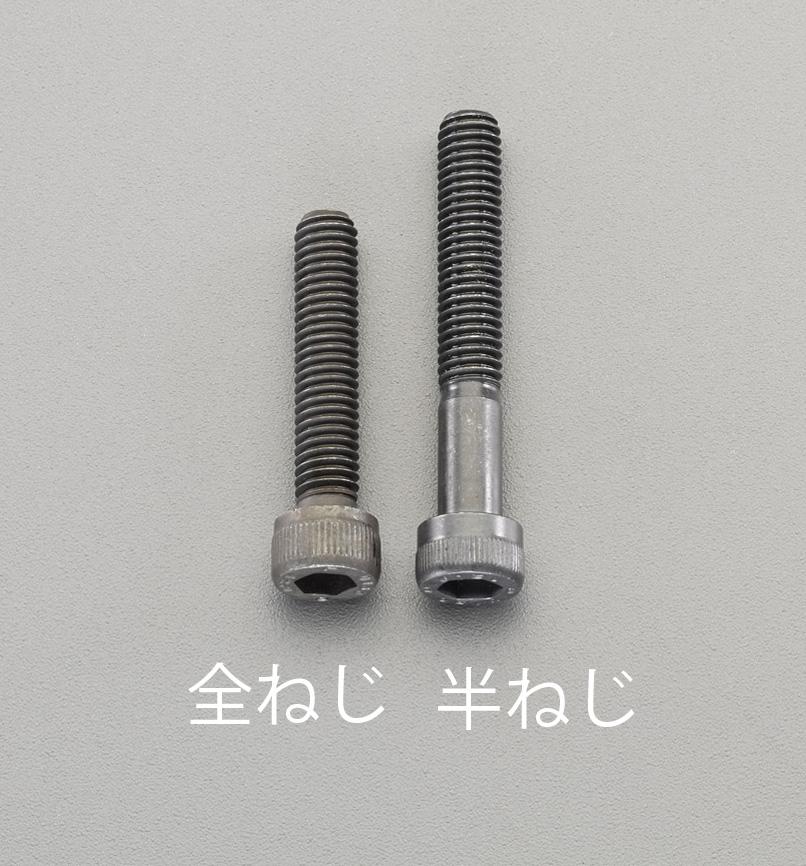

※ This image is representative. Actual parts or similar items may vary. Please verify the model number and product name.
▪️ Half-threaded
▪️ Fine-pitch thread
▪️ Manufactured by Umbraco
▪️ Material: Alloy steel
▪️ Thread standard: ISO 261, 262, JIS B 0205, ANSI B1.13M
▪️ Product Grade…12.9 ISO898/1, JIS G 1051
▪️ Hardness…HRC38-43
▪️ Tensile Strength…1300 N/mm²
▪️ Yield Strength…1170 N/mm²
▪️ Shear Strength…780 N/mm²
▪️ Elongation…9%
▪️ Surface Treatment…Black Oxide Coating
▪️Operating Temperature Range…-50℃ to +300℃
▪️Size…M10×90
▪️Pitch…1.5mm
▪️Head Diameter (A)…Max: 16mm, Min: 15.73mm
▪️Shank Diameter (D)…Max: 10mm, Min: 9.78mm
▪️Head Height (H)…Max: 10mm, Min: 9.64mm
▪️Socket Width (J)…Min: 8mm
▪️Size (G)…Min: 4.55mm
▪️Socket Depth (T)…Min: 5mm
▪️Fillet Depth (F)…Max: 11.2mm
▪️ Effective cross-sectional area…58mm²
▪️ Breaking load…75.4kN
▪️ Yield load…67.9kN
▪️ Body single shear load…61kN
▪️ Weight…66g
▪️ Quantity per pack…1 piece

Material: Alloy Steel
4548745654196
M10x90 [High Strength/High Tensile] Hex Socket Head Cap Screw
