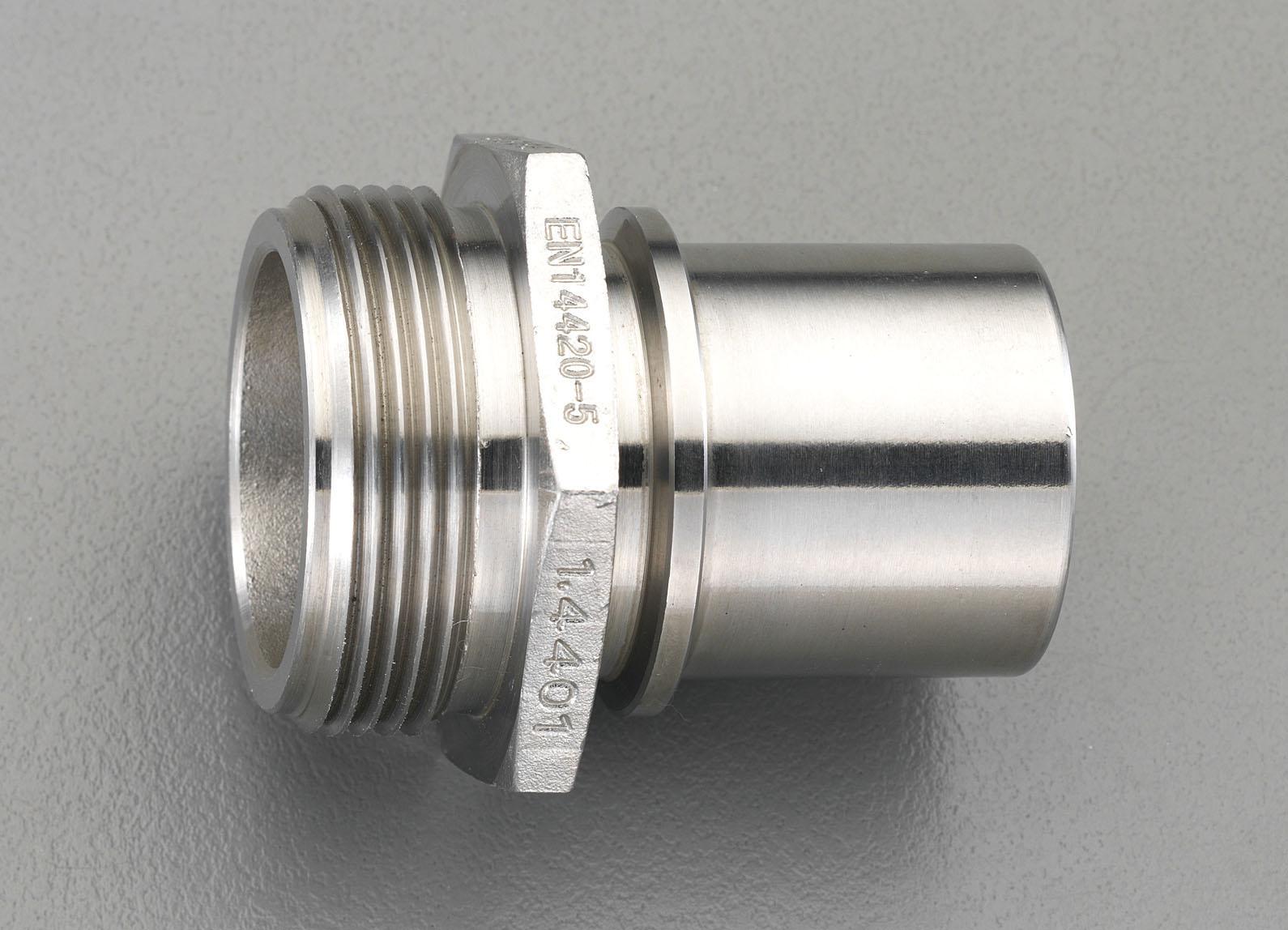

G1 Male Thread Hose Stem (Stainless Steel)
JAN
4548745729313
ASIN
B00AXUKLVK
Maker
Model No.
EA462EC-10
Color
Size
G (PF) 1"
Description
Material: Stainless Steel (SUS316)
Operating Temperature: -40°C/95°C\ Working Pressure: 2.5MPa (25kgf/cm²) Electropolished Finish Safety Flange Compatible Clamp: EA462EE-10 Thread Size: G(PF) 1" Compatible Hose ID: 25mm Hexagon Flange Diameter: 36mm Overall Height: 63mm Weight: Approx. 148g
Brand Name: Esco
Operating Temperature: -40℃/95℃
Pressure Rating: 2.5MPa (25kgf/cm²)
Electropolished Finish
Safety Flange
Compatible Clamp: EA462EE-10
Thread Size: G(PF)1"
Compatible Hose ID: 25mm
Hexagon Diagonal: 36mm
Overall Height: 63mm
4548745729313
“G1” “Male Thread Hose Stem (Stainless Steel)”
(text created at , 2025-05-10)
Operating Temperature: -40°C/95°C\ Working Pressure: 2.5MPa (25kgf/cm²) Electropolished Finish Safety Flange Compatible Clamp: EA462EE-10 Thread Size: G(PF) 1" Compatible Hose ID: 25mm Hexagon Flange Diameter: 36mm Overall Height: 63mm Weight: Approx. 148g
Brand Name: Esco
Operating Temperature: -40℃/95℃
Pressure Rating: 2.5MPa (25kgf/cm²)
Electropolished Finish
Safety Flange
Compatible Clamp: EA462EE-10
Thread Size: G(PF)1"
Compatible Hose ID: 25mm
Hexagon Diagonal: 36mm
Overall Height: 63mm
4548745729313
“G1” “Male Thread Hose Stem (Stainless Steel)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,590 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
