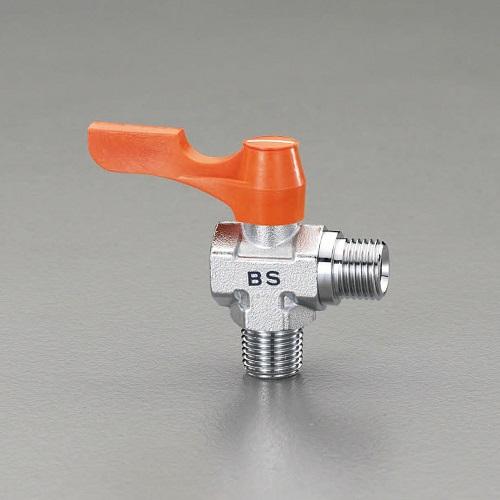

R 3/8“ x G 3/8” Mini Ball Valve
JAN
4548745765625
ASIN
B00AXUKDP4
Maker
Model No.
EA425BS-333
Color
Size
Description
ESCO Mini Ball Valve
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8“
Mounting Thread (D): G(PF) 3/8”
Size (R): Diameter 6mm
Weight: 86g
Angle Type
Brand Name: Esco
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"
4548745765625
R 3/8“ x G 3/8” Mini Ball Valve
(text created at , 2025-05-10)
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing points)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8“
Mounting Thread (D): G(PF) 3/8”
Size (R): Diameter 6mm
Weight: 86g
Angle Type
Brand Name: Esco
Material: Brass
Pressure: 0.98MPa (10kgf/cm²) or less
Temperature: -10/80°C (excluding freezing locations)
Fluid: Air, Water, Oil
Mounting Thread (A): R(PT) 3/8"
4548745765625
R 3/8“ x G 3/8” Mini Ball Valve
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
1,972 JPY (Including Tax)
