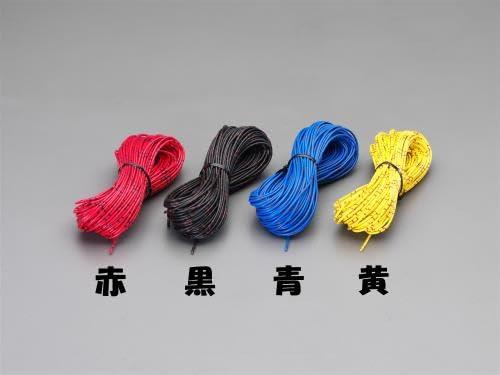

ESCO 0.5mm² x 25m [AVS/Blue] Automotive Wire EA812JY-103
JAN
4548745779196
ASIN
B00AXV8RLU
Maker
Model No.
EA812JY-103
Color
Blue
Size
Description
Brand Name: Esco
Color: Blue
Length: 25m
Nominal Cross-sectional Area: 0.5mm²
Rated Current: 12A
Conductor: Stranded/Solid Wire Diameter: 7 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 0.5629mm², Outer Diameter: Approx. 1.0mm
Insulation Standard Thickness: 0.5mm
Standard Finish Outer Diameter: 2.0mm
Maximum Conductor Resistance: 0.0327Ω/m (20℃)
Rated Temperature: 80℃ (Continuous Heat Resistance Temperature)
4548745779196
ESCO 0.5mm² x 25m [AVS/Blue] Automotive Cord EA812JY-103
(text created at , 2025-05-11)
Color: Blue
Length: 25m
Nominal Cross-sectional Area: 0.5mm²
Rated Current: 12A
Conductor: Stranded/Solid Wire Diameter: 7 strands/0.32mm, Shape: Stranded, Calculated Cross-sectional Area: 0.5629mm², Outer Diameter: Approx. 1.0mm
Insulation Standard Thickness: 0.5mm
Standard Finish Outer Diameter: 2.0mm
Maximum Conductor Resistance: 0.0327Ω/m (20℃)
Rated Temperature: 80℃ (Continuous Heat Resistance Temperature)
4548745779196
ESCO 0.5mm² x 25m [AVS/Blue] Automotive Cord EA812JY-103
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
2,355 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
