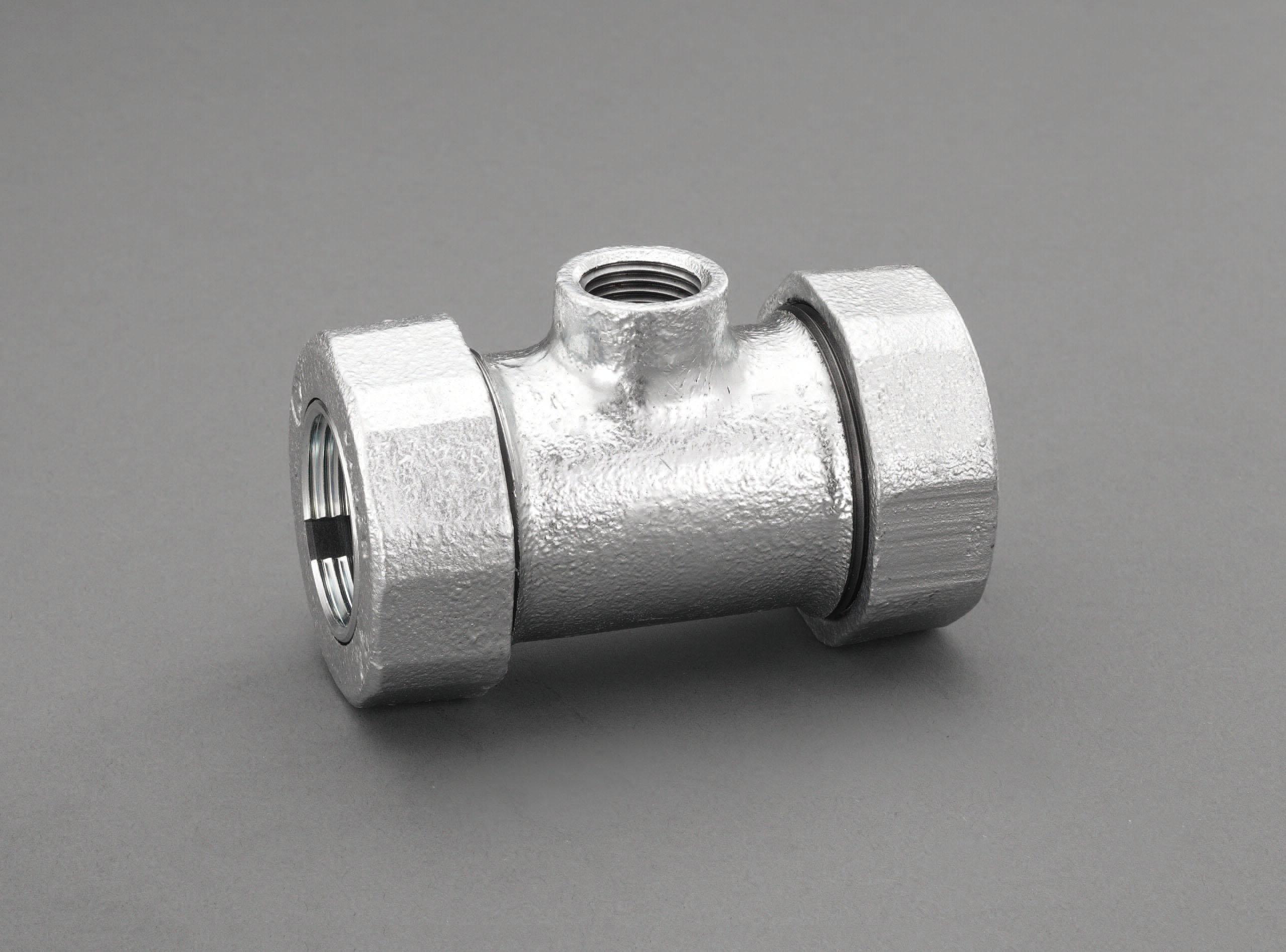

ESCO 50Ax32AxRc1・1/4" Diameter Difference Female Thread Cheese/Mechanical Fitting EA469HH-14

4548745783964

B00AXUKRSM

EA469HH-14

B: 57mm, X: 58mm, A: 68.5mm

Nominal: 50A × 32A Thread Size (D): Rc(PT) 1-1/4 Nut Face-to-Face Width: 89 × 67 mm Nut Height: 24 × 21 mm Face-to-Center Size: B: 57 mm, X: 58mm, A: 68.5mm Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR Weight: 1800g Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm²) The maximum operating pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for hydraulic fluids containing additives. Operating temperature range: -10°C/60°C (0°C/40°C for water). For use exceeding 60°C, replace the packing with a heat-resistant type. Applicable pipe types: JIS G3452: Carbon steel pipes for piping, JIS G3442: Galvanized steel pipes for water piping, JWWAK116: Rigid vinyl chloride lined steel pipes for water supply (VA, VB), JWWAK132: Polyethylene Powder-Lined Steel Pipes for Water Supply (PA, PB), JIS K6741: Rigid Polyvinyl Chloride Pipes (VP) ※Replacement of gasket set required for nominal sizes 25 and 30 ※Not usable for nominal sizes 65×50 and 80×50, JIS K6742: Rigid PVC Pipes for Water Supply (VP, HIVP for Water Supply) ※Packing set replacement required for sizes 25 and 30 ※Cannot be used for sizes 65×50 and 80×50, JIS K6762: Polyethylene Two-Layer Pipes for Water Supply (Type 1) ※ Size 30, 40, 50 requires an insert ※Cannot be used with sizes 65×50 or 80×50

Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Size: 50A×32A
Thread Size (D): Rc(PT) 1-1/4
Nut Face Width: 89×67mm
Nut Height: 24×21mm
End Face/Center-to-Center Size: B: 57mm, X: 58mm, A: 68.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1800g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipe is 0.75MPa (7.6kgf/cm²).
4548745783964
ESCO 50Ax32AxRc1・1/4" Reducing Female Thread Cheese/Mechanical Fitting EA469HH-14
(text created at , 2025-08-11)

250x100x250 mm

2000 g
