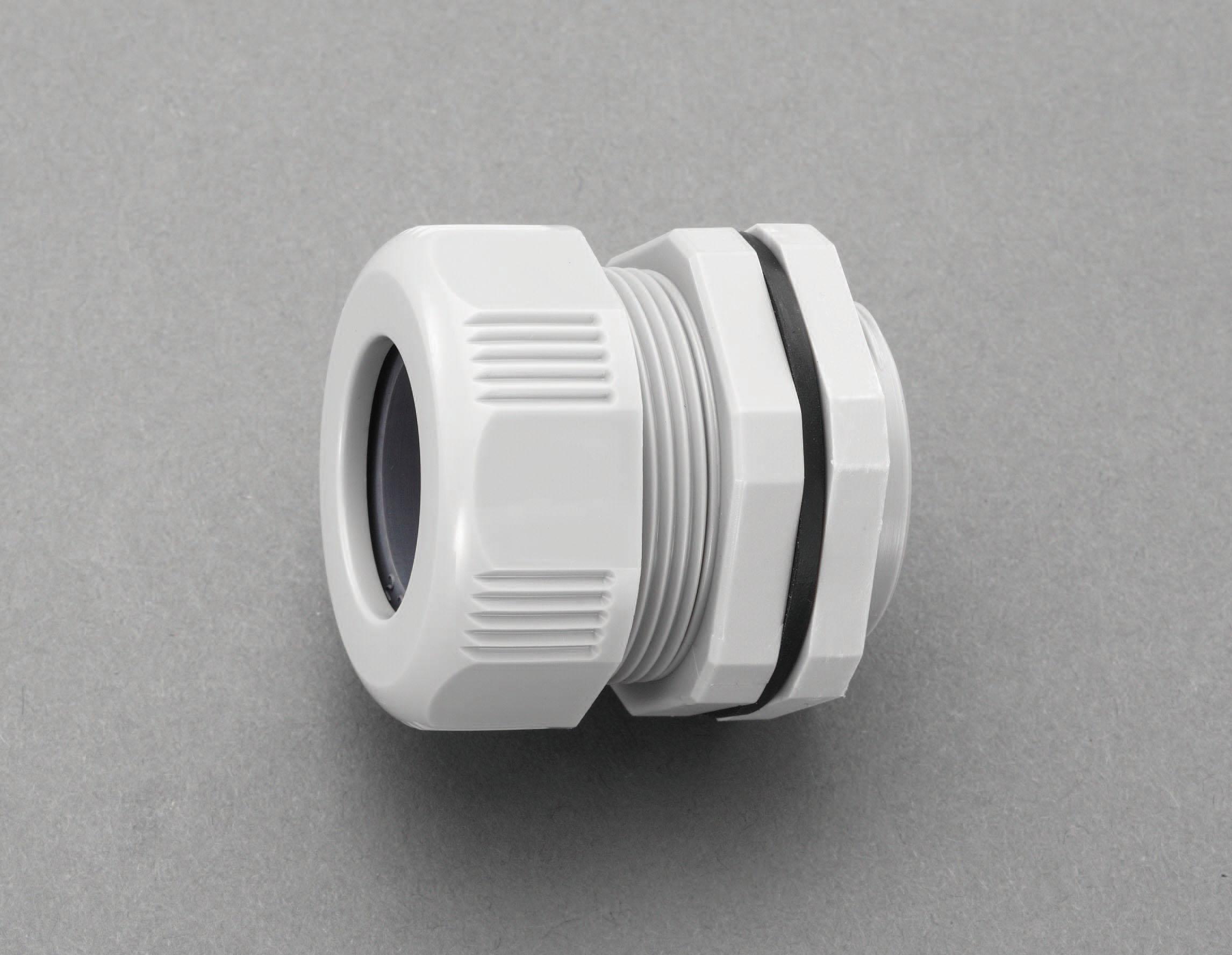

10.5-12.5mm/G1/2" Cable Gland (Flame-Retardant) EA948HS-5
JAN
4548745785715
ASIN
B00AXVB3KM
Maker
Model No.
EA948HS-5
Color
Gray
Size
Description
ESCO Cable Ground - Flame Retardant Type - 10-5-12-5mm - EA948HS-5
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Suitable Cable Diameter: 10.5/12.5mm
Mounting Screw: Pipe Parallel Thread: G1/2, Thick Steel Conduit Thread: CTG16
Mounting Hole Diameter: 22mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 37.0, B(max): 27.5, C: 14.0, Diameter D: 15.5, Diameter E: 32.0, F: 30, Diameter K (OD): 21.
Brand Name: Esco
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Applicable Cable Diameter: 10.5/12.5mm
Mounting Screw: Pipe Parallel Thread: G1/2, Thick Steel Conduit Thread: CTG16
Mounting Hole Diameter: 22mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 37.0, B(max): 27.5, C: 14.0, Diameter D: 15.5, Diameter E: 32.0, F: 30, Diameter K (OD): 21.
4548745785715
10.5-12.5mm/G1/2" Cable Gland (Flame Retardant) EA948HS-5
(text created at , 2025-05-11)
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Suitable Cable Diameter: 10.5/12.5mm
Mounting Screw: Pipe Parallel Thread: G1/2, Thick Steel Conduit Thread: CTG16
Mounting Hole Diameter: 22mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 37.0, B(max): 27.5, C: 14.0, Diameter D: 15.5, Diameter E: 32.0, F: 30, Diameter K (OD): 21.
Brand Name: Esco
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Black
Applicable Cable Diameter: 10.5/12.5mm
Mounting Screw: Pipe Parallel Thread: G1/2, Thick Steel Conduit Thread: CTG16
Mounting Hole Diameter: 22mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 37.0, B(max): 27.5, C: 14.0, Diameter D: 15.5, Diameter E: 32.0, F: 30, Diameter K (OD): 21.
4548745785715
10.5-12.5mm/G1/2" Cable Gland (Flame Retardant) EA948HS-5
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
54x34x113 mm
Package
Weight (Approx.):
Weight (Approx.):
20 g
443 JPY (Including Tax)
Stock :
133
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
