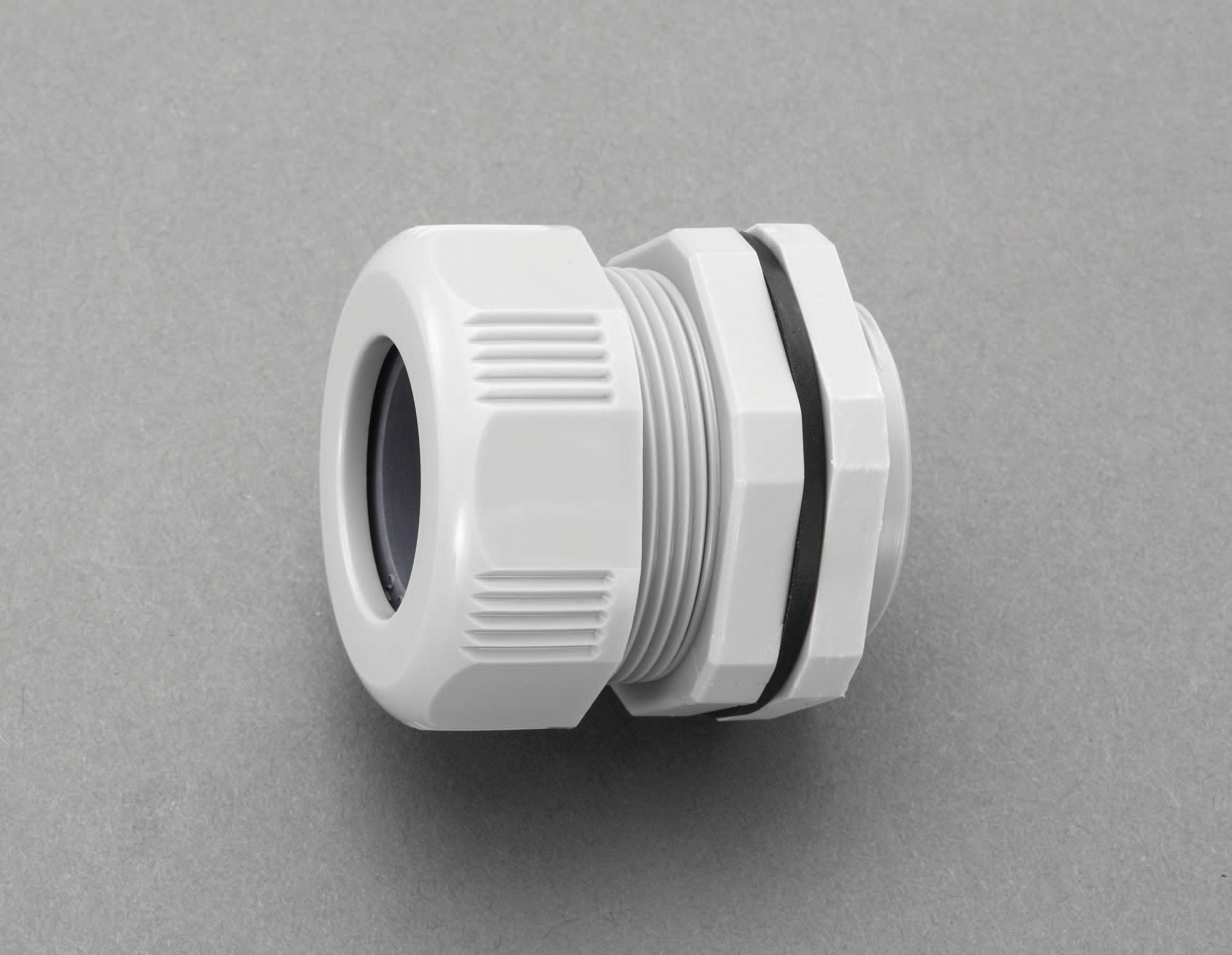

20.5–22.5 mm / G1 Cable Gland (Flame-Retardant Type)
JAN
4548745785760
ASIN
B00AXVB4WY
Maker
Model No.
EA948HS-10
Color
Gray
Size
Description
ESCO Cable Ground - Flame Retardant Type - 20-5-22-5mm - EA948HS-10
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Gray
Suitable Cable Diameter: 20.5/22.5mm
Mounting Screw: Pipe Parallel Thread: G1, Thick Steel Conduit Thread: CTG28
Mounting Hole Diameter: 34mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 43.0, B(max): 32.5, C: 16.7, Diameter D: 24.0, Diameter E: 43.0, F: 41, Diameter K (OD): 33.
Brand Name: Esco
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Gray
Applicable Cable Diameter: 20.5/22.5mm
Mounting Screw: Pipe Parallel Thread: G1, Thick Steel Conduit Thread: CTG28
Mounting Hole Diameter: 34mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 43.0, B(max): 32.5, C: 16.7, Diameter D: 24.0, Diameter E: 43.0, F: 41, Diameter K (OD): 33.
4548745785760
“20.5-22.5mm / G1” “Cable Gland (Flame Retardant Type)”
(text created at , 2025-05-10)
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Gray
Suitable Cable Diameter: 20.5/22.5mm
Mounting Screw: Pipe Parallel Thread: G1, Thick Steel Conduit Thread: CTG28
Mounting Hole Diameter: 34mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 43.0, B(max): 32.5, C: 16.7, Diameter D: 24.0, Diameter E: 43.0, F: 41, Diameter K (OD): 33.
Brand Name: Esco
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Material: Body/Cap/Lock Nut: Polyamide (Flame Retardant Grade: 94V-0), Rubber Sleeve: NBR (Flame Retardant), Rubber Gasket: Chloroprene Rubber
Color: Gray
Rubber Sleeve Color: Gray
Applicable Cable Diameter: 20.5/22.5mm
Mounting Screw: Pipe Parallel Thread: G1, Thick Steel Conduit Thread: CTG28
Mounting Hole Diameter: 34mm
Maximum Mounting Plate Thickness: 4mm
Body/Cap Size (mm): A(max): 43.0, B(max): 32.5, C: 16.7, Diameter D: 24.0, Diameter E: 43.0, F: 41, Diameter K (OD): 33.
4548745785760
“20.5-22.5mm / G1” “Cable Gland (Flame Retardant Type)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
50x50x50 mm
Package
Weight (Approx.):
Weight (Approx.):
100 g
