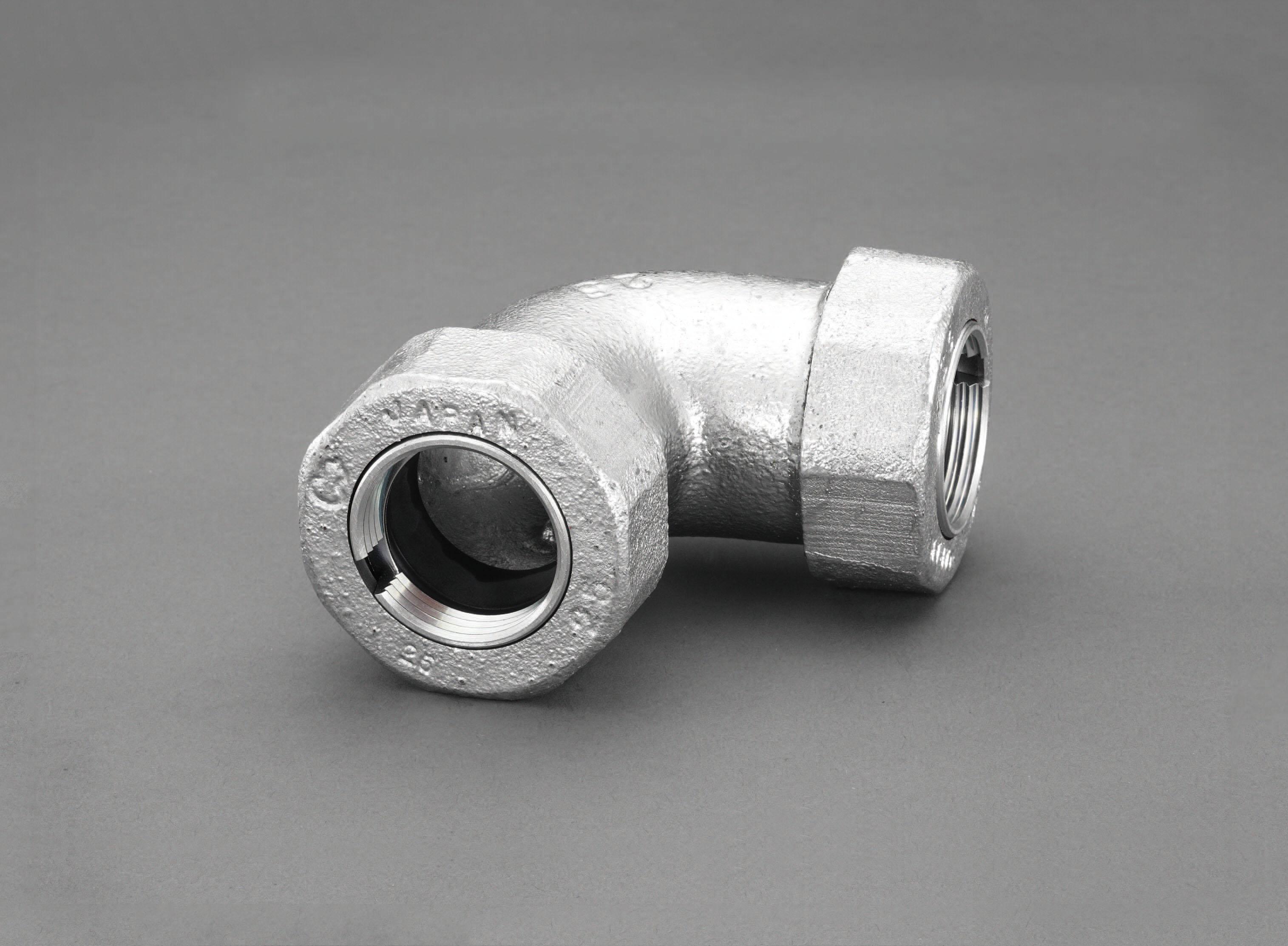

ESCO 50A Elbow (Mechanical Fitting for 3 Pipe Types) EA469HB-50
JAN
4548745786088
ASIN
B00AXUKKWU
Maker
Model No.
EA469HB-50
Color
Size
X: 75mm, A: 85.5mm
Description
ESCO-ESCO-EA469HB-50-50A Elbow-3 Pipe Type Mechanical Joint
Nominal Size: 50A\
Nut Face-to-Face Width: 89mm\
Nut Height: 24mm\
Face-to-Face/Center-to-Center Size: X: 75mm, A: 85.5mm\
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR\
Weight: 1865g\
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)\
Maximum operating pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).\
Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for use with additive-containing hydraulic fluids. \
Operating temperature range: -10°C/60°C (0°C/40°C for water)\
For use above 60°C, replace the packing with heat-resistant packing. \
Applicable pipe types: JIS G3452: Carbon steel pipes for piping, JIS G3442: Galvanized steel pipes for water piping, JWWAK116: Rigid vinyl chloride lined steel pipes for water supply (VA, VB), JWWAK132: Polyethylene Powder-Lined Steel Pipes for Water Supply (PA, PB), JIS K6741: Rigid Polyvinyl Chloride Pipes (VP) ※Replacement of gasket set required for nominal sizes 25, 30 ※Not usable for nominal sizes 65, 80, JIS K6742: Rigid PVC Pipes for Water Supply (VP, HIVP for Water Supply) ※Replacement of packing set required for sizes 25 and 30 ※Not usable for sizes 65 and 80, JIS K6762: Sizes 30, 40, 50 require an insert※Not usable for sizes 65, 80
Brand Name: Esco
Material: Body/ Nut: Malleable cast iron (hot-dip galvanized)
Nominal size: 50A
Nut face-to-face width: 89mm
Nut height: 24mm
Face-to-center size: X: 75mm, A: 85.5mm
Material: Body/Nut: Malleable cast iron (hot-dip galvanized), Lock ring/Collars: Steel, Packing: NBR
Weight: 1865g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
The maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. It cannot be used with hydraulic fluid containing additives.
4548745786088
B00AXUKKWU
ESCO 50A Elbow (Mechanical Fitting for 3 Pipe Types) EA469HB-50
(text created at , 2025-11-12)
Nominal Size: 50A\
Nut Face-to-Face Width: 89mm\
Nut Height: 24mm\
Face-to-Face/Center-to-Center Size: X: 75mm, A: 85.5mm\
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR\
Weight: 1865g\
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)\
Maximum operating pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).\
Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. Not suitable for use with additive-containing hydraulic fluids. \
Operating temperature range: -10°C/60°C (0°C/40°C for water)\
For use above 60°C, replace the packing with heat-resistant packing. \
Applicable pipe types: JIS G3452: Carbon steel pipes for piping, JIS G3442: Galvanized steel pipes for water piping, JWWAK116: Rigid vinyl chloride lined steel pipes for water supply (VA, VB), JWWAK132: Polyethylene Powder-Lined Steel Pipes for Water Supply (PA, PB), JIS K6741: Rigid Polyvinyl Chloride Pipes (VP) ※Replacement of gasket set required for nominal sizes 25, 30 ※Not usable for nominal sizes 65, 80, JIS K6742: Rigid PVC Pipes for Water Supply (VP, HIVP for Water Supply) ※Replacement of packing set required for sizes 25 and 30 ※Not usable for sizes 65 and 80, JIS K6762: Sizes 30, 40, 50 require an insert※Not usable for sizes 65, 80
Brand Name: Esco
Material: Body/ Nut: Malleable cast iron (hot-dip galvanized)
Nominal size: 50A
Nut face-to-face width: 89mm
Nut height: 24mm
Face-to-center size: X: 75mm, A: 85.5mm
Material: Body/Nut: Malleable cast iron (hot-dip galvanized), Lock ring/Collars: Steel, Packing: NBR
Weight: 1865g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
The maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2). Oil refers to kerosene, heavy oil, lubricating oil, hydraulic fluid, etc. It cannot be used with hydraulic fluid containing additives.
4548745786088
B00AXUKKWU
ESCO 50A Elbow (Mechanical Fitting for 3 Pipe Types) EA469HB-50
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
13,436 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
