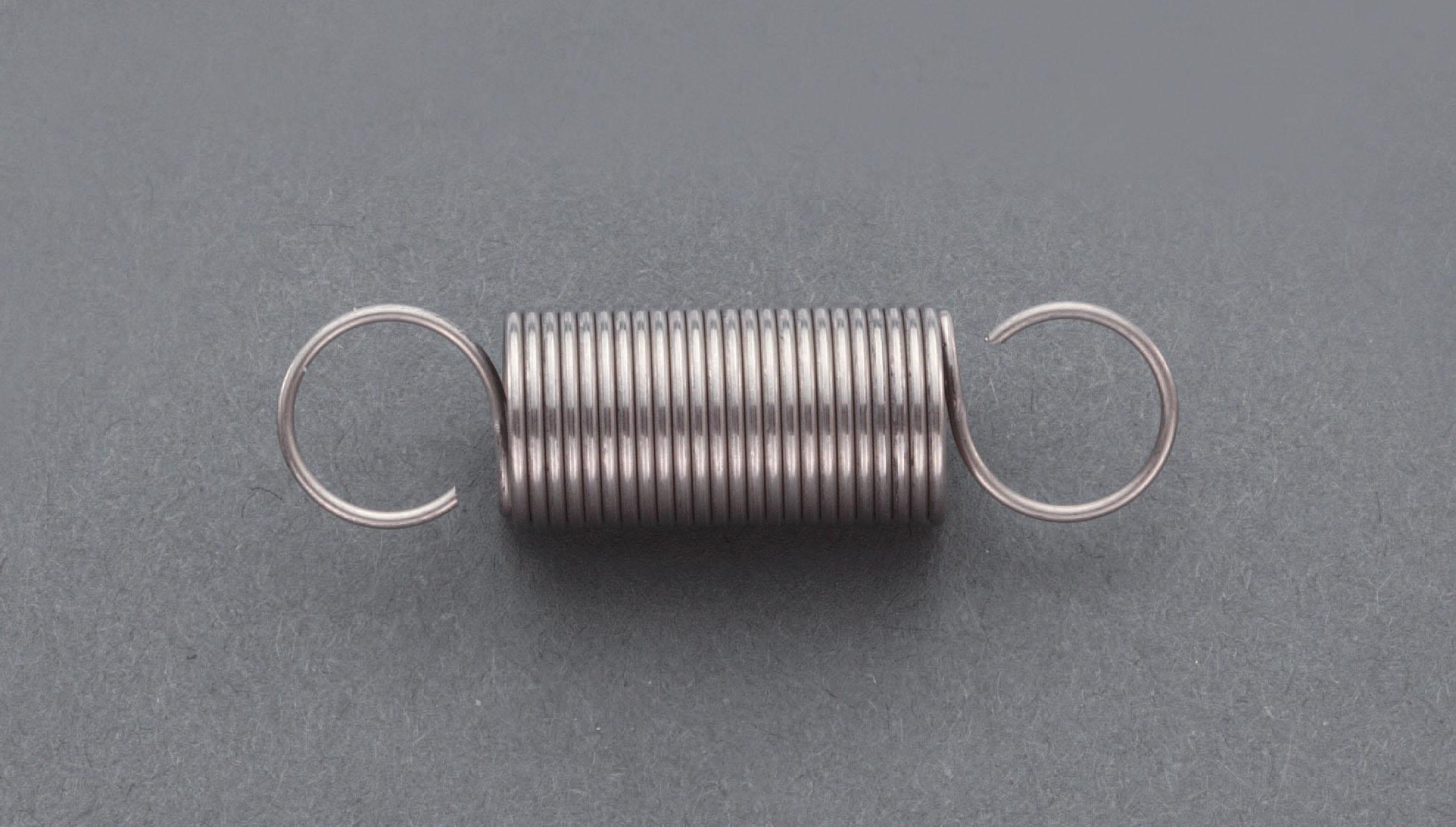

5.0 x 0.6 / 18.3mm Pull Spring (Stainless Steel / 5 pcs) EA952SG-125
JAN
4548745790719
ASIN
B00AXVE6HO
Maker
Model No.
EA952SG-125
Color
Size
Description
ESCO-Pull Spring-Stainless Steel-5 Pieces
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…9.17N
▪️Length at Rated Load…26.7mm
▪️Wire Diameter…φ0.6mm
▪️Outer Diameter…φ5mm
▪️Free Length…18.3mm
▪️Spring Constant…0.816 N/mm
▪️Initial Tension…2.314 N
▪️Hook Shape…Reverse Round Hook
▪️Hook Opposite Angle…180°
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil direction…Right-hand coil
Allowable load…9.17N, Length at allowable load…26.7mm
Wire diameter…0.6mm diameter, Outer diameter…5mm diameter, Height…18.3mm
Spring constant…0.816 N/mm
Initial tension…2.314 N
4548745790719
5.0x0.6 / 18.3mm Pull Spring (Stainless Steel/5 pcs) EA952SG-125
(text created at , 2025-05-09)
▪️Material…SUS304
▪️Coil Direction…Right-hand
▪️Rated Load…9.17N
▪️Length at Rated Load…26.7mm
▪️Wire Diameter…φ0.6mm
▪️Outer Diameter…φ5mm
▪️Free Length…18.3mm
▪️Spring Constant…0.816 N/mm
▪️Initial Tension…2.314 N
▪️Hook Shape…Reverse Round Hook
▪️Hook Opposite Angle…180°
▪️Quantity…5 pieces
▪️RoHS Compliant
Brand Name: Esco
Material…SUS304, Coil direction…Right-hand coil
Allowable load…9.17N, Length at allowable load…26.7mm
Wire diameter…0.6mm diameter, Outer diameter…5mm diameter, Height…18.3mm
Spring constant…0.816 N/mm
Initial tension…2.314 N
4548745790719
5.0x0.6 / 18.3mm Pull Spring (Stainless Steel/5 pcs) EA952SG-125
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
100x100x100 mm
Package
Weight (Approx.):
Weight (Approx.):
500 g
685 JPY (Including Tax)
Stock :
7
Scheduled Shipping:
2026-07-13
Quantity :
