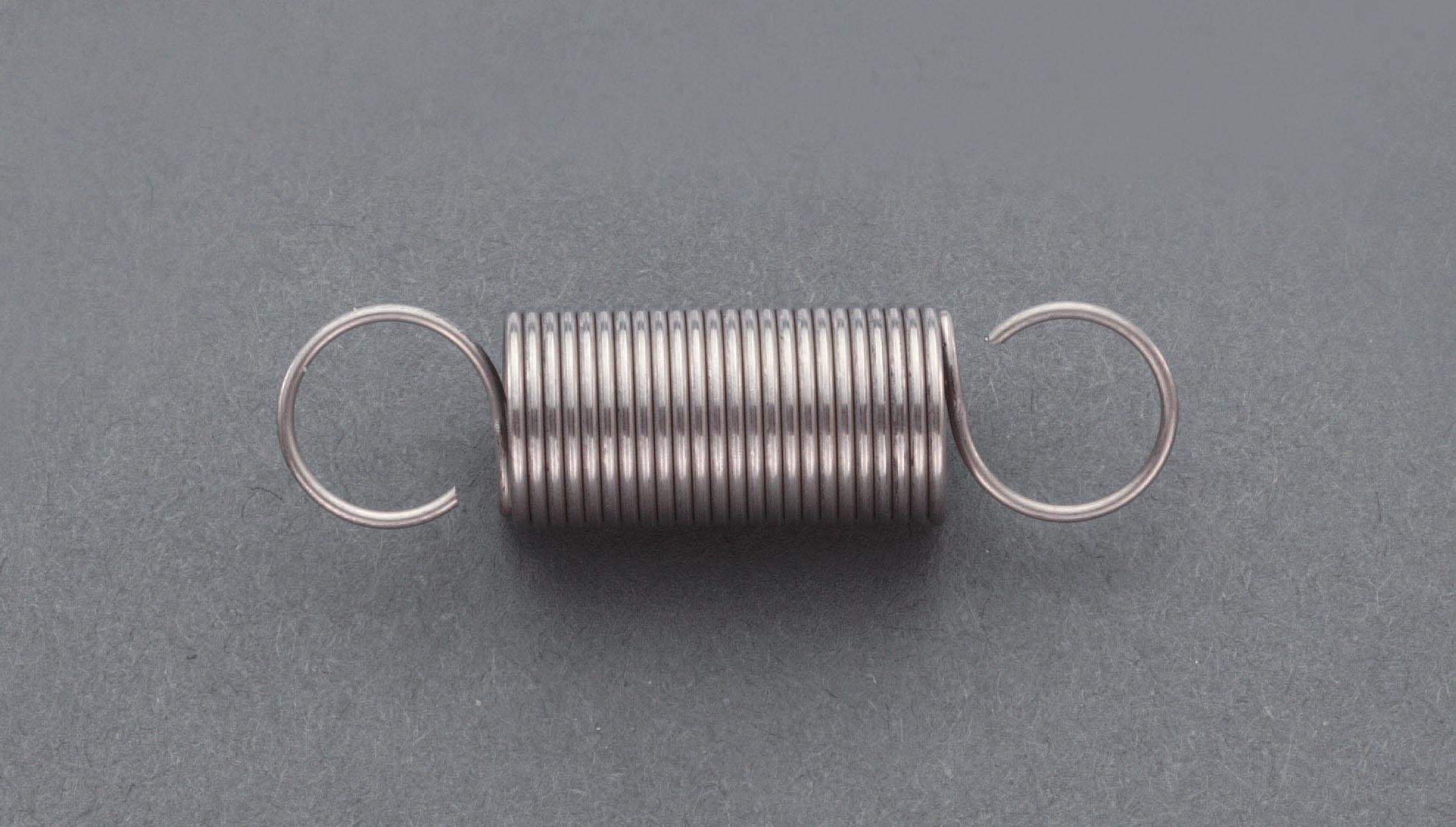

3.2 x 0.23 / 20.6mm Pull Spring (Stainless Steel / 5 pcs) EA952SG-38
JAN
4548745794601
ASIN
B00AXVF9HK
Maker
Model No.
EA952SG-38
Color
Size
Description
ESCO-Pull Spring-Stainless Steel-5 Pieces
RoHS Compliant
Brand Name: Esco
Material: SUS304, Coil Direction: Right-Hand Coil
Rated Load: 0.78N, Length at Rated Load: 66.6mm
Wire Diameter...Diameter 0.23mm, Outer Diameter...Diameter 3.2mm, Height...20.6mm
Spring Constant...0.015N/mm
Initial Tension...0.108N
Hook Shape...Reverse Round Hook
Hook Opposite Angle...180°
Quantity...5 pieces
4548745794601
3.2x0.23/ 20.6mm Pull Spring (Stainless Steel/5 pcs) EA952SG-38
(text created at , 2025-05-09)
RoHS Compliant
Brand Name: Esco
Material: SUS304, Coil Direction: Right-Hand Coil
Rated Load: 0.78N, Length at Rated Load: 66.6mm
Wire Diameter...Diameter 0.23mm, Outer Diameter...Diameter 3.2mm, Height...20.6mm
Spring Constant...0.015N/mm
Initial Tension...0.108N
Hook Shape...Reverse Round Hook
Hook Opposite Angle...180°
Quantity...5 pieces
4548745794601
3.2x0.23/ 20.6mm Pull Spring (Stainless Steel/5 pcs) EA952SG-38
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
100x100x100 mm
Package
Weight (Approx.):
Weight (Approx.):
500 g
685 JPY (Including Tax)
Stock :
10
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
