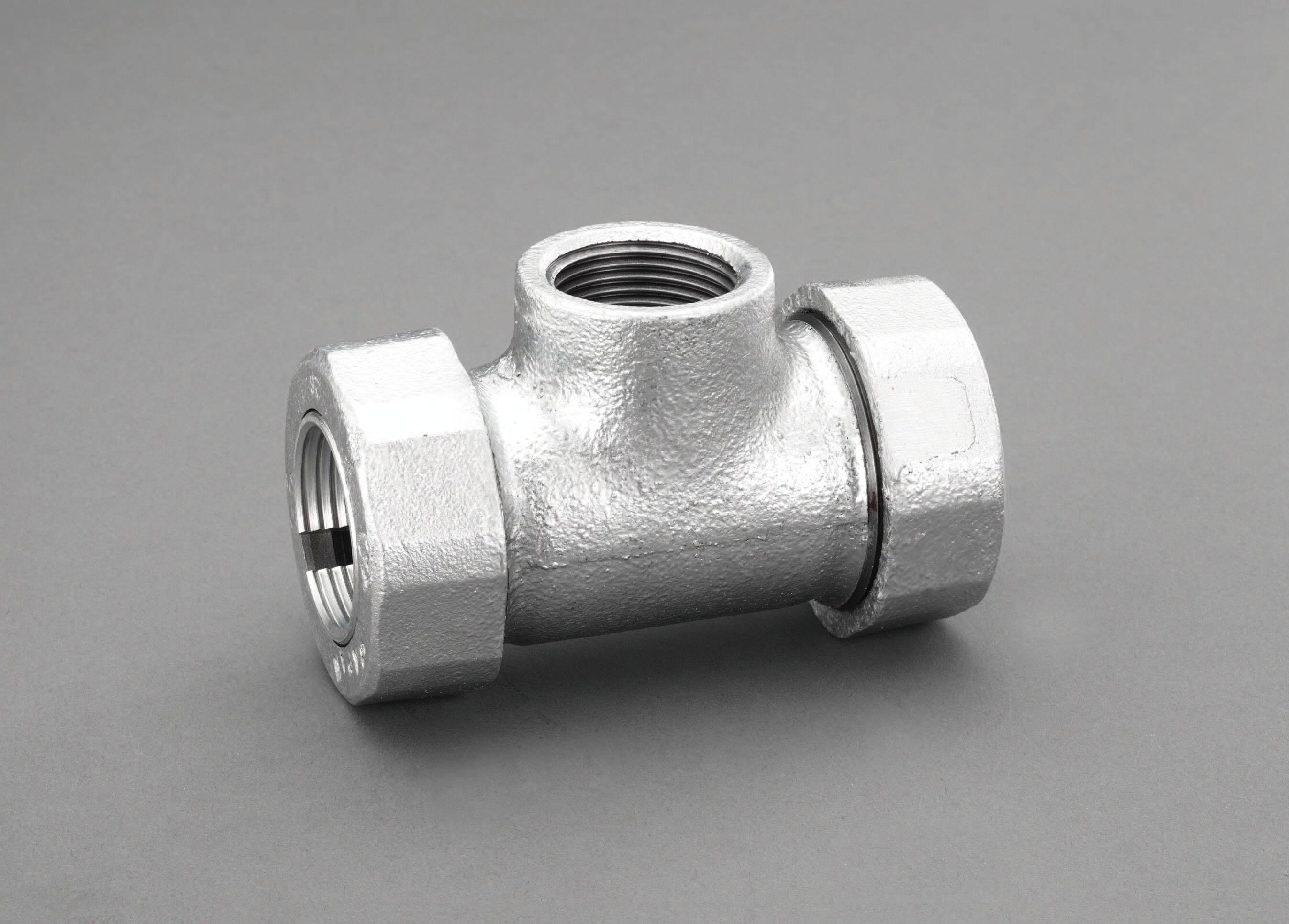

15AxRc1/2 Female Threaded Tee (Mechanical Fitting for 3 Pipe Types)
JAN
4548745804843
ASIN
B00AXUKPE8
Maker
Model No.
EA469HG-15
Color
Size
B: 30mm, X: 40mm, A: 48.5mm
Description
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Rated: 15A
Thread Size (D): Rc(PT) 1/2
Nut Face-to-Face Width: 44mm
Nut Height: 19mm
End Face/Center Distance: B: 30mm, X: 40mm, A: 48.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 443g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
4548745804843
“15AxRc1/2” “Female Thread Tee (Mechanical Fitting for 3 Pipe Types)”
(text created at , 2025-05-10)
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Rated: 15A
Thread Size (D): Rc(PT) 1/2
Nut Face-to-Face Width: 44mm
Nut Height: 19mm
End Face/Center Distance: B: 30mm, X: 40mm, A: 48.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 443g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
4548745804843
“15AxRc1/2” “Female Thread Tee (Mechanical Fitting for 3 Pipe Types)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
