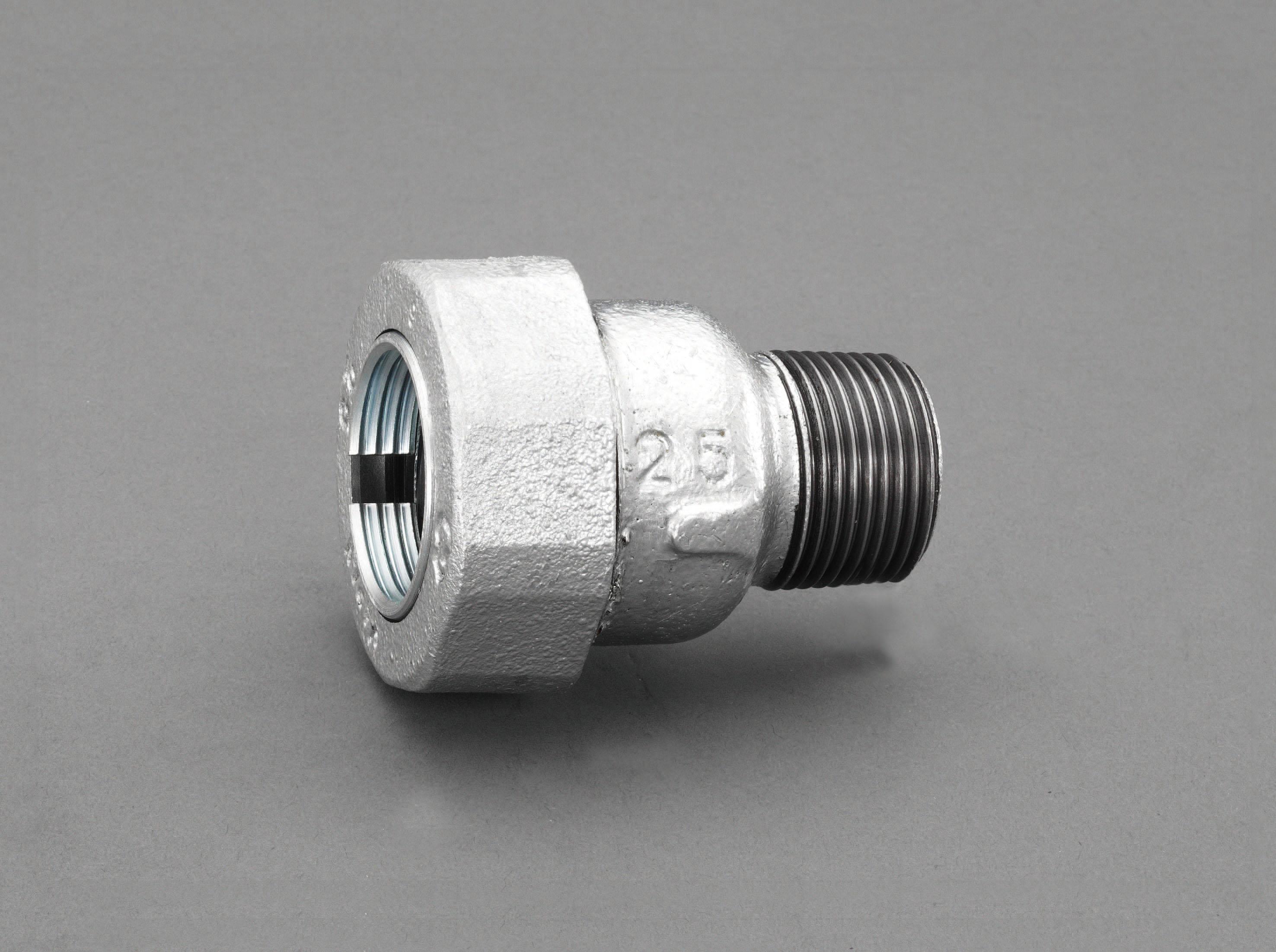

15AxR1/2 Male Threaded Socket (Mechanical Joint for 3 Pipe Types)
JAN
4548745826593
ASIN
B00AXUKMQE
Maker
Model No.
EA469HE-15
Color
Size
X: 55mm, A: 63.5mm
Description
ESCO Screw Socket - 3 Pipe Types Mechanical Joint
Nominal Size: 15A
Thread Size (D): R(PT) 1/2
Nut Face-to-Face Width: 44mm
Nut Height: 19mm
Face-to-Face Size: X: 55mm, A: 63.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Packing: NBR
Weight: 220g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
Brand Name: Esco
Nominal Size: 15A
Thread Size (D): R(PT) 1/2
Nut Face-to-Face Width: 44mm
Nut Height: 19mm
Face-to-Face Size: X: 55mm, A: 63.5mm
4548745826593
15AxR1/2 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-06-30)
Nominal Size: 15A
Thread Size (D): R(PT) 1/2
Nut Face-to-Face Width: 44mm
Nut Height: 19mm
Face-to-Face Size: X: 55mm, A: 63.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Packing: NBR
Weight: 220g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
Brand Name: Esco
Nominal Size: 15A
Thread Size (D): R(PT) 1/2
Nut Face-to-Face Width: 44mm
Nut Height: 19mm
Face-to-Face Size: X: 55mm, A: 63.5mm
4548745826593
15AxR1/2 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-06-30)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
