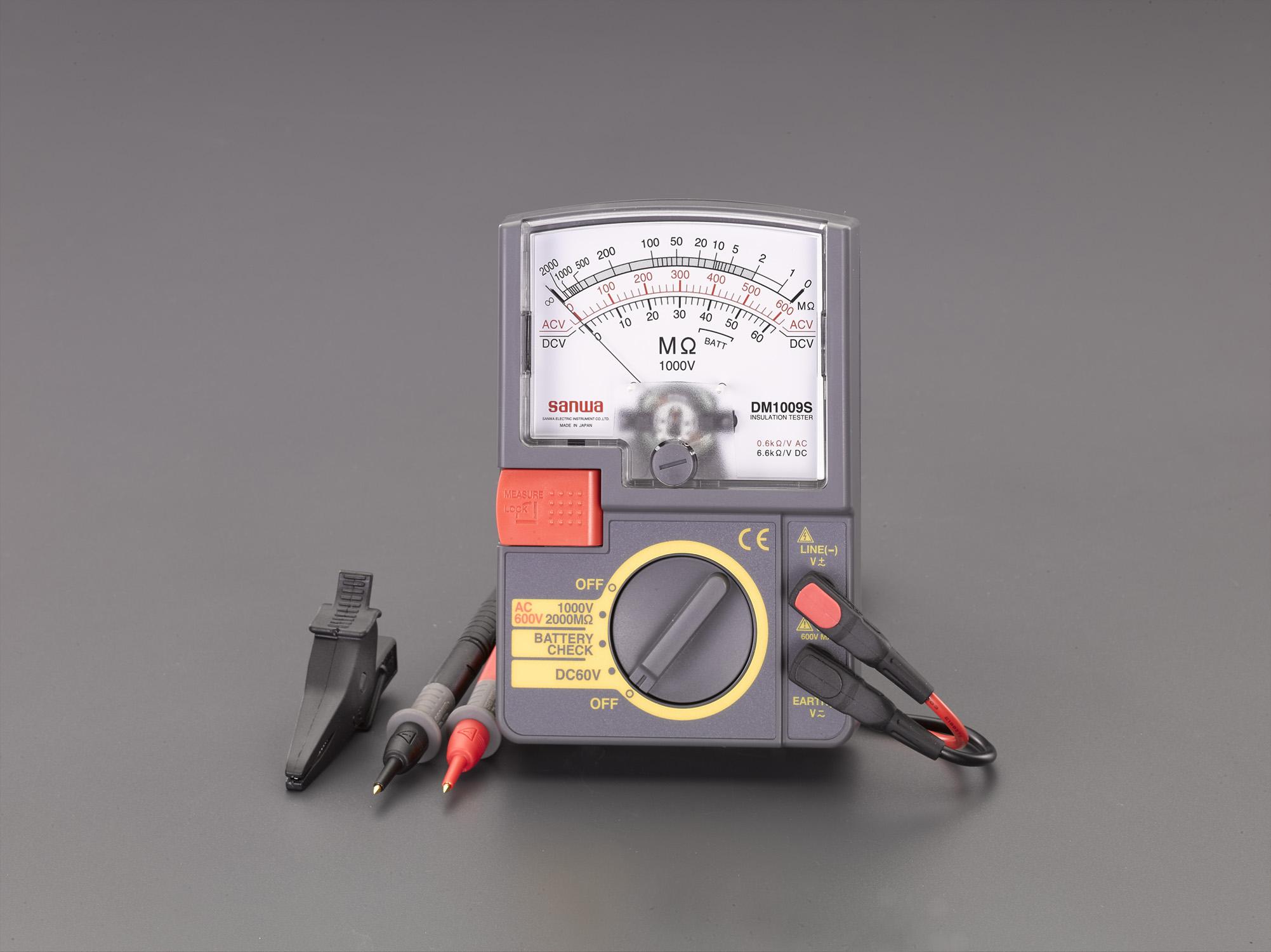

ESCO (Analog) Insulation Resistance Tester EA709G-16A

4548745894370

B01N7RTG4L

EA709G-16A

99 (W) × 43 (D) × 144 (H) mm

AC Rectification Method: Half-wave rectification (average value indication, converted to RMS value) Meter Specifications: Internal magnetism type, tote band method, 24μA battery consumption Display: Confirm via BATTERYCHECK range Guaranteed Tolerance Range Temperature and Humidity Range: 23±5°C, 75% RH or less, no condensation Operating Temperature and Humidity Range: 0/43°C, 80% RH or less, no condensation Storage Temperature and Humidity Range: -10/50°C, 70% RH or less, no condensation Operating Environment Conditions: Altitude 2000m or less, Environmental Pollution Degree 2 Maximum Power Consumption: 2.0W/2.8W (at MΩ range) IP Protection Rating: IP20 Power Supply: 9V Alkaline Battery × 1 (included) Dimensions: 99(W) × 43(D) × 144(H) mm Weight: Approx. 310g Accessories: Test leads, carrying case Scale: 1/2/1000/2000MΩ Rated measurement voltage: 1000V Rated resistance: 2000MΩ Measurement range: 0/2000MΩ Voltage: ACV: 600V, DCV: 60V Tolerance: First valid measurement range: Within ±5% of indicated value Second valid measurement range: Within ±10% of indicated value 0, ∞ Scale: Within ±0.7% of scale length No-load voltage: Within -0%/+25% of rated measurement voltage Rated current: Within 1/1.2mA Short-circuit current: 2.9mA or less Within ±5% of maximum scale value (Sine wave AC: 50/60Hz) Within ±5% of maximum scale value. CE Mark certified for international safety standards. Insulation resistance measurement switch enables single and continuous measurements. Equipped with discharge function to release charged voltage after measurement. Inner battery check function measures internal battery capacity. DC voltage measurement range (60V) included. AC voltage measurement function identifies live wiring conditions. Convenient detachable probe tips for measurements. Included case features a neck strap for hands-free operation during measurement. Brand Name: Esco
Includes test leads, carrying case, pin caps, and one 9V alkaline battery\ nAC Rectification Method: Half-wave rectification (average value indication, converted to RMS)
Meter Specification: Internal magnet type, tote band method, 24μA
Battery depletion indication: Check using the BATTERYCHECK range
Guaranteed tolerance temperature/humidity range: 23±5℃, 75%RH or less, no condensation
Operating temperature/humidity range: 0/43℃, 80%RH or less, no condensation\ n4548745894370
B01N7RTG4L
ESCO (Analog) Insulation Resistance Tester EA709G-16A
(text created at , 2025-11-12)

300x200x300 mm

1000 g
