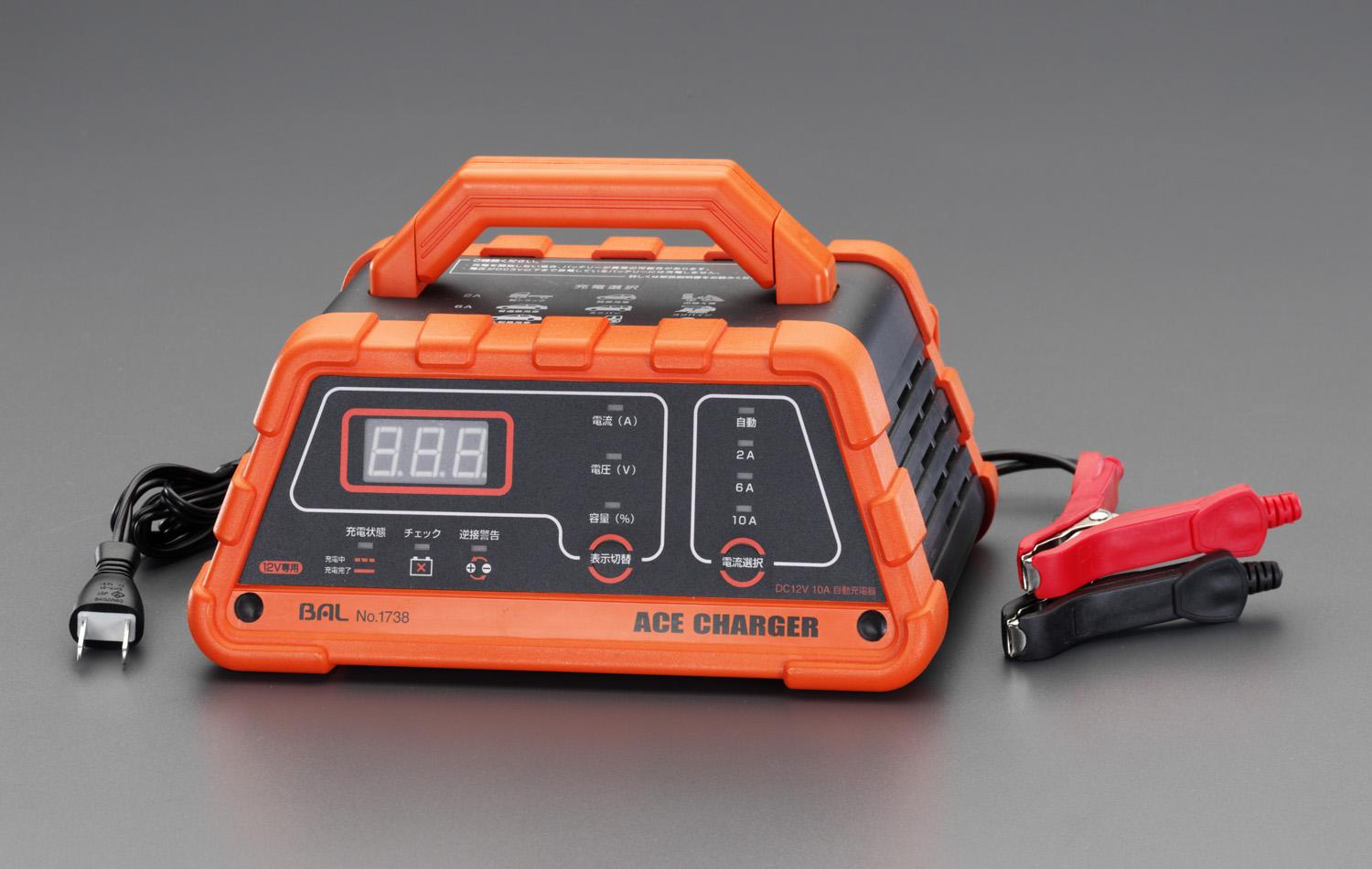

ESCO Automatic Charger AC100V EA815YA-6A
JAN
4548745895216
ASIN
Maker
Model No.
EA815YA-6A
Color
Size
223 (W) × 177 (D) × 132 (H) mm
Description
Brand Name: Esco
▪️ Open/Sealed Type
▪️ Input Voltage: AC100V 50/60Hz
▪️Output Voltage: Rated Voltage: DC14.8V, Charge Complete Voltage: DC13.6V▪️Maximum Output Current: 10A▪️Power Consumption: 200VA▪️Compatible Battery: DC12V▪️Compatible Battery Capacity: 6Ah/240Ah▪️Charging Cable Length: 1.8m▪️Power Cord Length: 1.8m
▪️ Dimensions: 223(W) × 177(D) × 132(H) mm
▪️ Weight: 1.23 kg
▪️ Digital display for current/voltage/capacity.
▪️
Supports a wide range of battery capacities, from light passenger vehicles to agricultural and construction machinery.
▪️Equipped with protection circuits, including indication when charging clips are reversed.
▪️Automatically selects the appropriate charging current for the battery.
▪️Charging current can be set to Auto, 2A, 6A, or 10A using the charging selection button.
▪️After charging is complete, switches to float charging (maintains DC 13.6V).
▪️Charging clips, charging cable, and power cord can be stored by winding them onto the hooks on the bottom of the unit.
▪️Part Number: EA815YA-6A
4548745895216
ESCO Automatic Charger AC100V EA815YA-6A
(text created at , 2025-08-11)
▪️ Open/Sealed Type
▪️ Input Voltage: AC100V 50/60Hz
▪️Output Voltage: Rated Voltage: DC14.8V, Charge Complete Voltage: DC13.6V▪️Maximum Output Current: 10A▪️Power Consumption: 200VA▪️Compatible Battery: DC12V▪️Compatible Battery Capacity: 6Ah/240Ah▪️Charging Cable Length: 1.8m▪️Power Cord Length: 1.8m
▪️ Dimensions: 223(W) × 177(D) × 132(H) mm
▪️ Weight: 1.23 kg
▪️ Digital display for current/voltage/capacity.
▪️
Supports a wide range of battery capacities, from light passenger vehicles to agricultural and construction machinery.
▪️Equipped with protection circuits, including indication when charging clips are reversed.
▪️Automatically selects the appropriate charging current for the battery.
▪️Charging current can be set to Auto, 2A, 6A, or 10A using the charging selection button.
▪️After charging is complete, switches to float charging (maintains DC 13.6V).
▪️Charging clips, charging cable, and power cord can be stored by winding them onto the hooks on the bottom of the unit.
▪️Part Number: EA815YA-6A
4548745895216
ESCO Automatic Charger AC100V EA815YA-6A
(text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
350x300x400 mm
Package
Weight (Approx.):
Weight (Approx.):
7000 g
10,123 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
