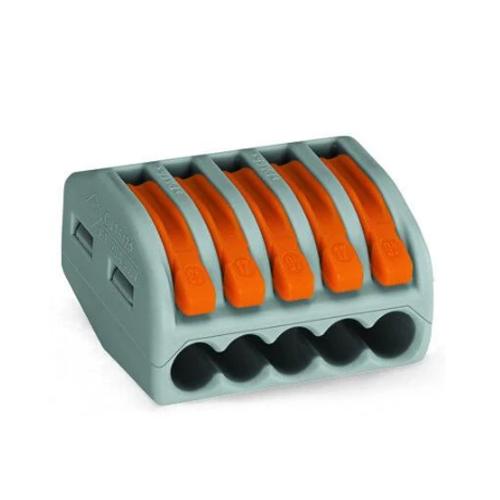

Plug-in Wire Connector (5-pin/5 pcs) 26.6(W)×20.5(D)×14.5(H)mm
JAN
4548745977547
ASIN
B00IW4QUVE
Maker
Model No.
EA538WA-5
Color
Size
26.6 (W) × 20.5 (D) × 14.5 (H) mm
Description
Poles: 5-pole Suitable wire: Solid wire: Diameter 0.65/2.0 mm², Stranded: 0.08/4.0mm², IV 7-strand: 0.08/2.5mm²
Rated: 32A 400V
Wire Stripping Length: 9/10mm
Maximum Cover Outer Diameter: Diameter 4.1mm
Maximum Continuous Operating Temperature: 85℃
Material: Heat-resistant nylon 66 (housing)
Size: 26.6×20.5×14.5(H)mm
For joint boxes or panel internal connections
Brand Name: Esco
Poles: 5-pole
Suitable Wire: Solid wire: Diameter 0.65/2.0, Stranded: 0.08/4.0mm², IV 7-strand: 0.08/2.5mm²
Rated: 32A 400V
Wire Stripping Length: 9/10mm
Maximum Outer Sheath Diameter: 4.1mm
Maximum Continuous Operating Temperature: 85°C
Material: Heat-resistant nylon 66 (housing)
Size: 26.6×20.5×14.5(H)mm
For junction boxes or panel internal connections
4548745977547
Plug-in Wire Connector (5-pole/5 pcs) 26.6(W)×20.5(D)×14.5(H)mm
(text created at , 2025-05-13)
Rated: 32A 400V
Wire Stripping Length: 9/10mm
Maximum Cover Outer Diameter: Diameter 4.1mm
Maximum Continuous Operating Temperature: 85℃
Material: Heat-resistant nylon 66 (housing)
Size: 26.6×20.5×14.5(H)mm
For joint boxes or panel internal connections
Brand Name: Esco
Poles: 5-pole
Suitable Wire: Solid wire: Diameter 0.65/2.0, Stranded: 0.08/4.0mm², IV 7-strand: 0.08/2.5mm²
Rated: 32A 400V
Wire Stripping Length: 9/10mm
Maximum Outer Sheath Diameter: 4.1mm
Maximum Continuous Operating Temperature: 85°C
Material: Heat-resistant nylon 66 (housing)
Size: 26.6×20.5×14.5(H)mm
For junction boxes or panel internal connections
4548745977547
Plug-in Wire Connector (5-pole/5 pcs) 26.6(W)×20.5(D)×14.5(H)mm
(text created at , 2025-05-13)
Package
Size (Approx.):
Size (Approx.):
77x25x123 mm
Package
Weight (Approx.):
Weight (Approx.):
20 g
1,449 JPY (Including Tax)
Stock :
7
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
