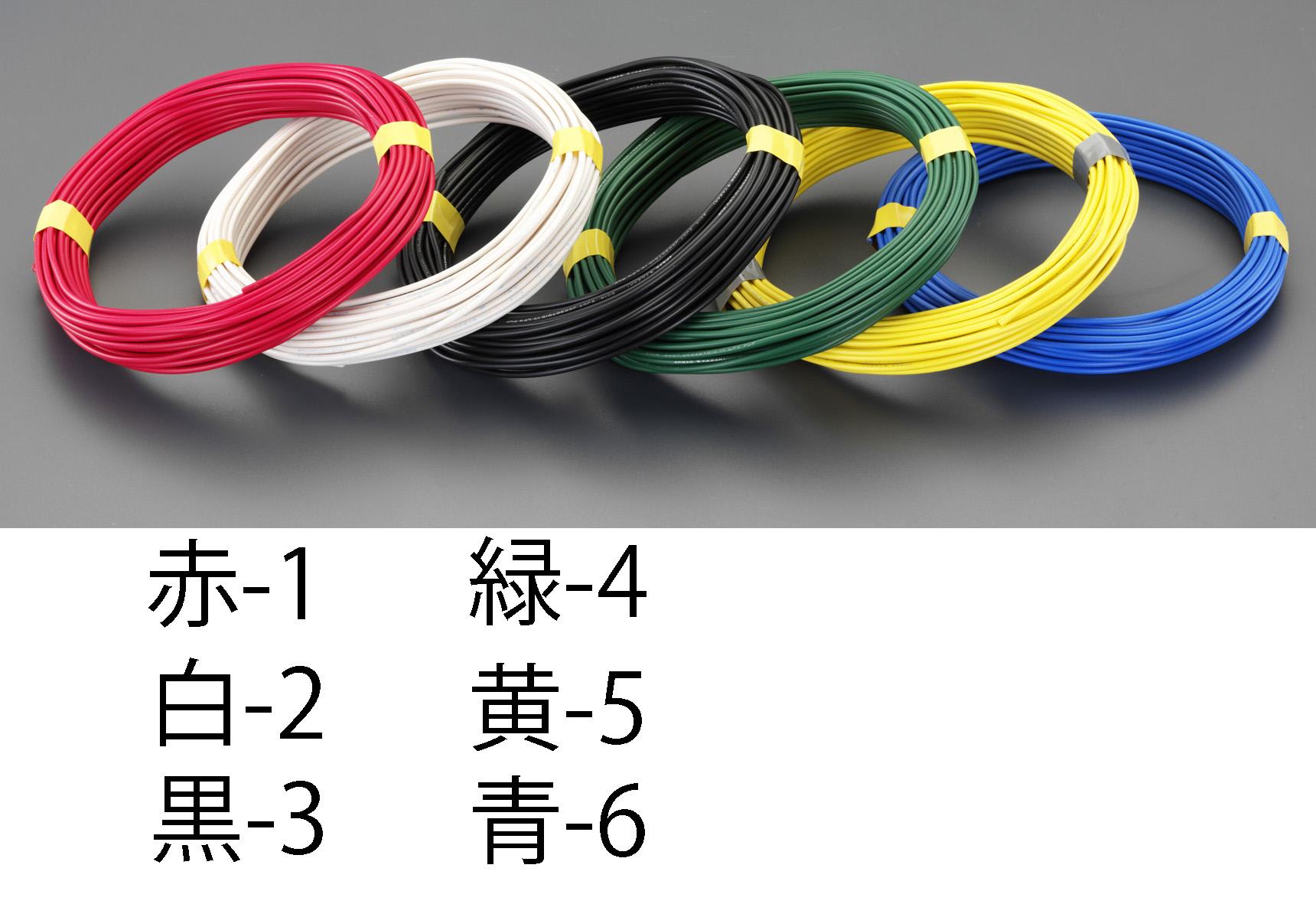

1.25mm² x 20m IV Wire (Stranded/Black) EA940AT-3
JAN
4548745979565
ASIN
B00IZ3H0XO
Maker
Model No.
EA940AT-3
Color
Size
Description
Cable & Cord, Cable Protector
Maximum Conductor Resistance (20°C): 16.5Ω/km
Material: Stranded Wire: Copper, Sheath: Vinyl
Rated Temperature: 60°C
Brand Name: Esco
Material: Copper
Color: Black
Length: 20m
Rated: 19A 600V
Nominal cross-sectional area: 1.25mm²
1 core
Conductor diameter configuration: 7 strands/0.45mm
Conductor diameter outer diameter: Approx. 1.35mm
Insulation thickness: 0.8mm
Finished outer diameter: Approx. 3.0mm
4548745979565
1.25mm² x 20m IV Wire (Stranded/Black) EA940AT-3
(text created at , 2025-05-10)
Maximum Conductor Resistance (20°C): 16.5Ω/km
Material: Stranded Wire: Copper, Sheath: Vinyl
Rated Temperature: 60°C
Brand Name: Esco
Material: Copper
Color: Black
Length: 20m
Rated: 19A 600V
Nominal cross-sectional area: 1.25mm²
1 core
Conductor diameter configuration: 7 strands/0.45mm
Conductor diameter outer diameter: Approx. 1.35mm
Insulation thickness: 0.8mm
Finished outer diameter: Approx. 3.0mm
4548745979565
1.25mm² x 20m IV Wire (Stranded/Black) EA940AT-3
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
600x200x600 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
3,417 JPY (Including Tax)
