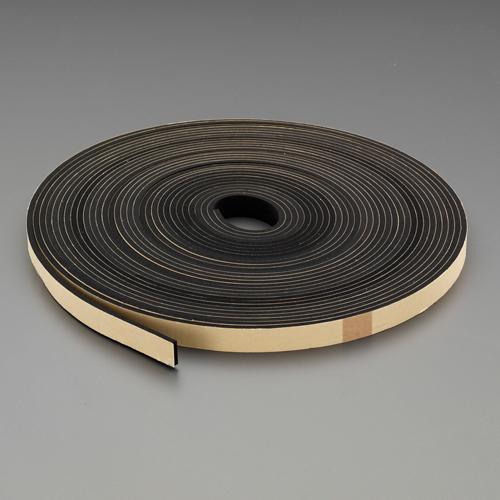

3x10mm/20m Sponge Gasket EA997XR-310
JAN
4548745985177
ASIN
B00IZ3NJ8O
Maker
Model No.
EA997XR-310
Color
Size
10mm × 20m
Description
ESCO-Sponge Gasket
Features
No coating
Excellent flame resistance (UL94-HBF compliant), water resistance, weather resistance, and durability.
Foam section offers high elasticity and durability with flame retardancy
Adhesive tape included
RoHS compliant
Specifications
Manufacturer: Shinohara Electric
Model: PDR-3-10T
Application: Waterproofing and sealing for window frames and door gaps in various switchboards
Material: 100% Neoprene (CR Sponge)\ Size: 10mm × 20m
Thickness: 3mm
Apparent Specific Gravity: 0.23g/cm³
Hardness: 25° ± 5°
Tensile Strength: 9.9kgf/cm²
Tear Strength: 2.4kgf/cm²
Elongation: 170%
Operating Temperature Range: -20~100℃
Brand Name: Esco
Material: Neoprene (CR Sponge) 100%
Quantity: 1 roll
Size: 10mm × 20m
4548745985177
3x10mm/20m Sponge Gasket EA997XR-310
(text created at , 2025-05-10)
Features
No coating
Excellent flame resistance (UL94-HBF compliant), water resistance, weather resistance, and durability.
Foam section offers high elasticity and durability with flame retardancy
Adhesive tape included
RoHS compliant
Specifications
Manufacturer: Shinohara Electric
Model: PDR-3-10T
Application: Waterproofing and sealing for window frames and door gaps in various switchboards
Material: 100% Neoprene (CR Sponge)\ Size: 10mm × 20m
Thickness: 3mm
Apparent Specific Gravity: 0.23g/cm³
Hardness: 25° ± 5°
Tensile Strength: 9.9kgf/cm²
Tear Strength: 2.4kgf/cm²
Elongation: 170%
Operating Temperature Range: -20~100℃
Brand Name: Esco
Material: Neoprene (CR Sponge) 100%
Quantity: 1 roll
Size: 10mm × 20m
4548745985177
3x10mm/20m Sponge Gasket EA997XR-310
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
300x150x300 mm
Package
Weight (Approx.):
Weight (Approx.):
150 g
8,119 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
