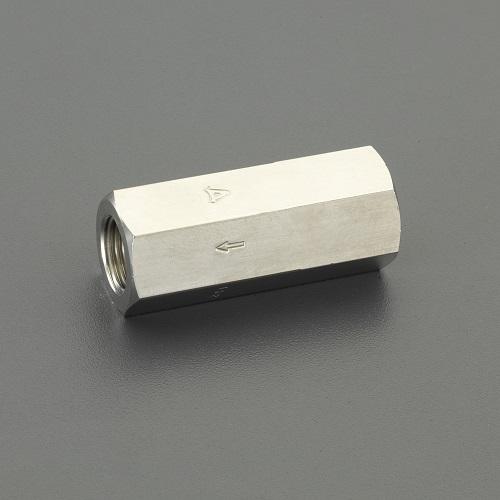

Rc1/2 Line Check Valve (High Pressure)
JAN
4548745992694
ASIN
B00IW4OSHC
Maker
Model No.
EA153EE-24
Color
Size
22mm × 64mm
Description
ESCO-Line Check Valve - High Pressure - EA153EE
Mounting Thread: Rc1/2”
Working Pressure: 0/4.9MPa
Maximum Pressure: 7.3MPa
Ambient Temperature: 5/120℃
Working Fluid: Air
Weight: 111g
Size: 22mm×64mm
Material: C3604
Fluorine rubber is used for the packing.
Prevents air backflow.
Brand Name: Esco
Mounting Screw: Rc1/2"
Operating Pressure: 0/4.9MPa
Maximum Pressure Rating: 7.3MPa
Operating Fluid: Air
The packing uses fluorine rubber.
4548745992694
“Rc1/2” “Line Check Valve (High Pressure)”
(text created at , 2025-05-10)
Mounting Thread: Rc1/2”
Working Pressure: 0/4.9MPa
Maximum Pressure: 7.3MPa
Ambient Temperature: 5/120℃
Working Fluid: Air
Weight: 111g
Size: 22mm×64mm
Material: C3604
Fluorine rubber is used for the packing.
Prevents air backflow.
Brand Name: Esco
Mounting Screw: Rc1/2"
Operating Pressure: 0/4.9MPa
Maximum Pressure Rating: 7.3MPa
Operating Fluid: Air
The packing uses fluorine rubber.
4548745992694
“Rc1/2” “Line Check Valve (High Pressure)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
