ELECOM Pitta Magnet Cable USB-A to USB Type-C USB 2.0 15W White MPA-ACMA20WH

4549550398053

B0FNW86M2R

MPA-ACMA20WH

ELECOM - Short Circuit Prevention Breaker Equipped -- Pitta Magnet - MPA-ACMA20WH
\


■Connector Type: USB-A Plug - USB Type-C Plug\


■Compatible Devices: AC chargers, mobile batteries, and computers with USB-A ports; smartphones, tablets, etc. with USB Type-C ports\


■Communication Standard: Hi-Speed USB (USB 2.0)

■Supported Transfer Speed: Up to 480Mbps (Theoretical Value)

■USB Power Delivery Support: No

■Supported Voltage/Current: Up to 5V/3A (15W)

■DisplayPort Alternate Mode Support: No

■Plug Plating: Gold-Plated Pins

■Twisted Pair Cable (Communication Line): Yes\


■Cable Length: Approx. 2m (excluding connectors)\


■Cable Thickness: Approx. 3.8mm\


■Color: White\


■Package Type: Paper Box\


■Warranty Period: 1 year\


■Environmental Considerations: Complies with EU RoHS Directive (10 substances), THINK ECOLOGY mark\

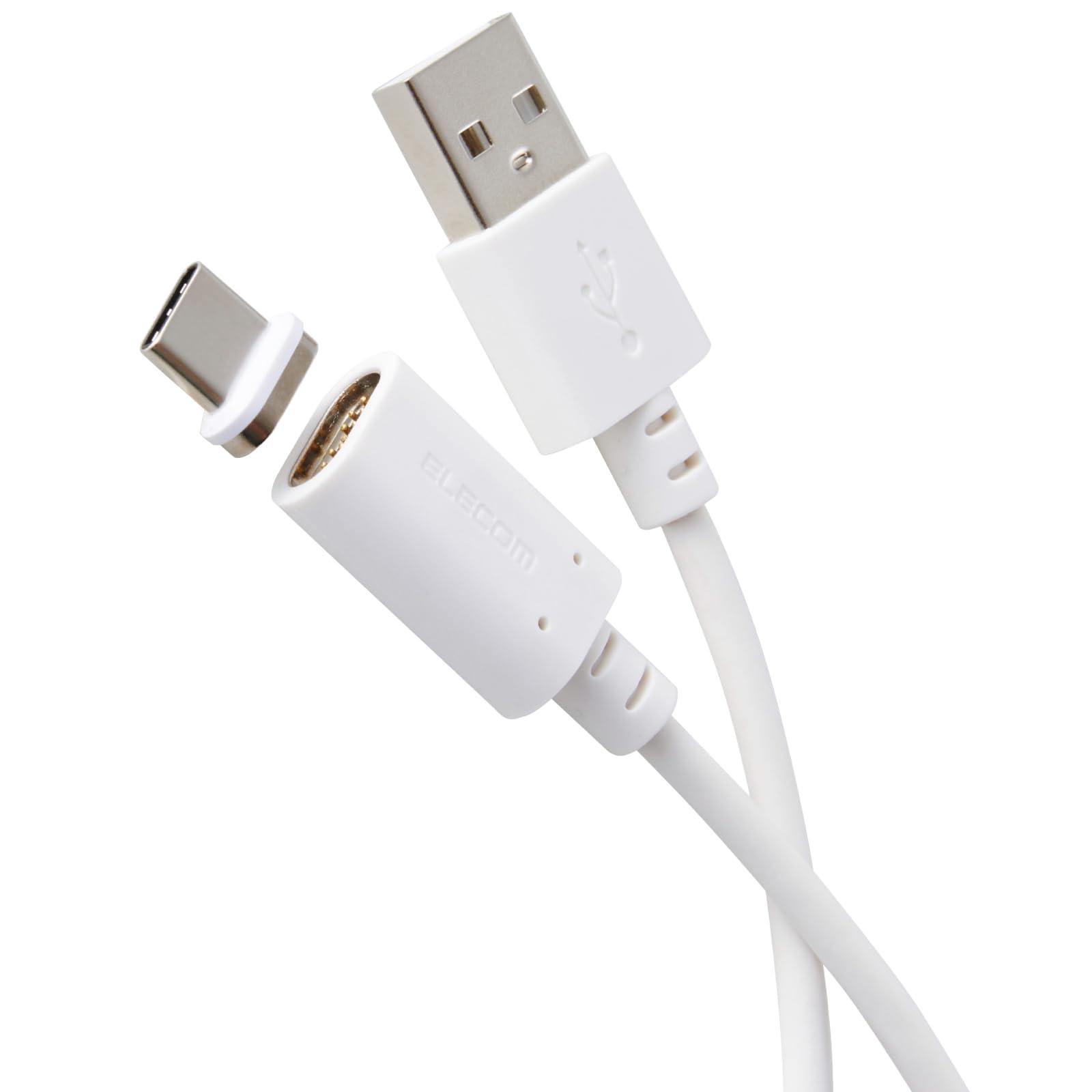

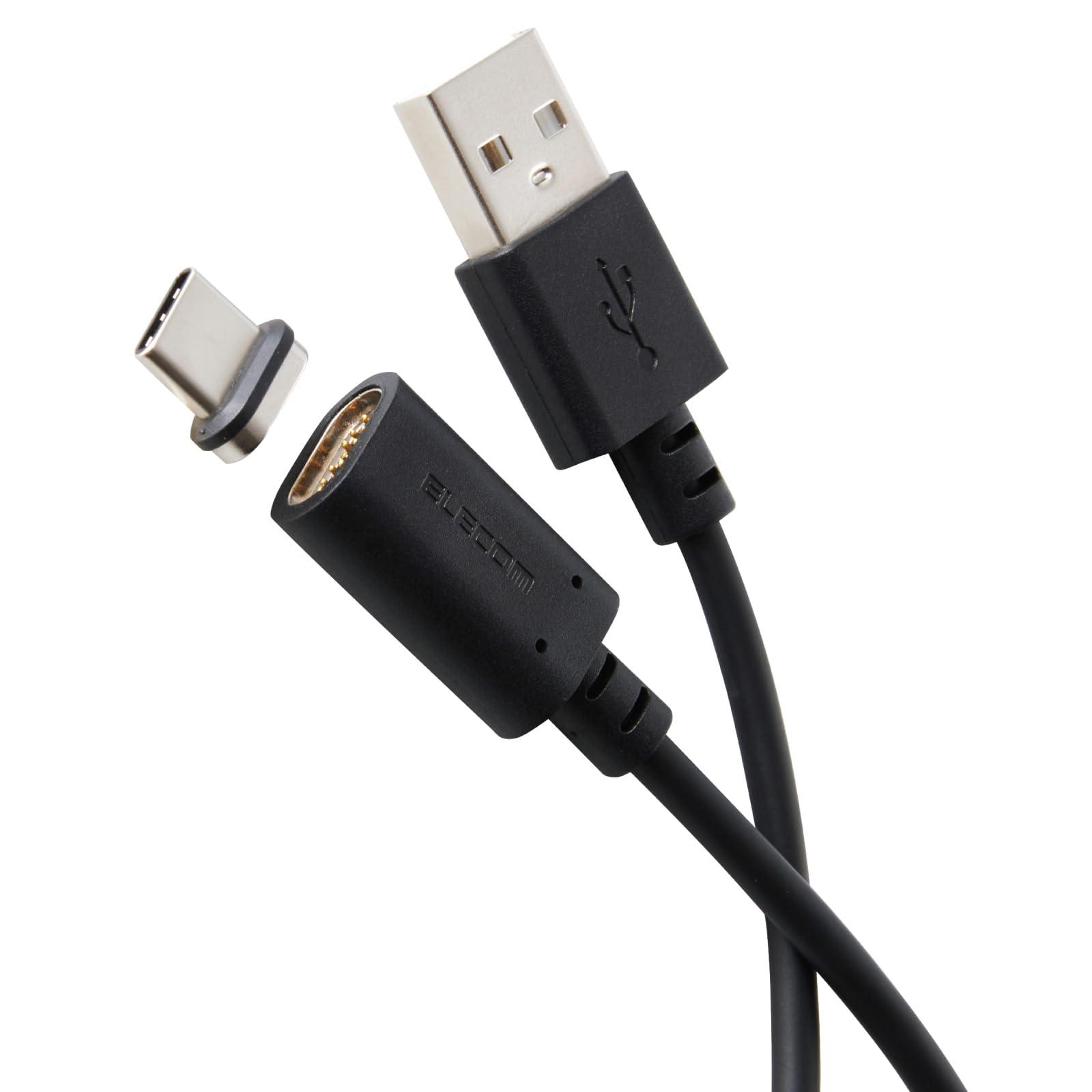

■This USB-A to USB Type-C cable features a magnetic USB Type-C connector for secure attachment. Simply snap the cable on or off with one touch while the connector remains plugged into your smartphone or other device. This eliminates the hassle of repeatedly plugging and unplugging during charging, reduces stress on the device and connector, and ensures long-lasting, comfortable use.\


■Connects smartphones or tablets with USB Type-C ports to computers, chargers, power banks, and other devices equipped with USB-A ports for charging and data transfer.\


■Features Thermal Protection for Cable. An internal breaker in the connector detects high temperatures or overcurrent and cuts off the current. This protects your devices from short circuits, overheating, or ignition caused by unintended connections, such as foreign objects getting caught or moisture on the connector. Once the device returns to normal temperature and condition, you can continue using it. ※ If dirt or moisture adheres to this product, it may overheat. Clean it before use and ensure it is dry and clean. ※ Using the magnetic connector and cable while misaligned may cause overheating. Ensure they are properly aligned before use. ※Periodically check the magnetic connector for proper insertion and disconnection. ※Do not use near items sensitive to magnetic fields, such as magnetic cards or pacemakers. Magnetic force may cause them to malfunction. ※If fine magnetic particles like iron filings adhere, they may become impossible to remove.\


■Supports charging connected devices at up to 15W (5V/3A). ※The supplied current varies depending on the performance of your computer or AC charger. ※Not compatible with USB Power Delivery.\


■Supports Hi-Speed USB (USB 2.0) data transfer speeds, enabling high-speed data transfer up to 480Mbps. ※Theoretical value\


■Features gold-plated pins resistant to rust and signal degradation.\


■Uses flame-retardant materials for enhanced safety.\


■The connector features printed specifications and power ratings, allowing you to see the product specifications at a glance. ※USB Type-C and USB-C are trademarks of USB Implementers Forum.\


■Meets at least one of our in-house environmental certification standards and displays the ‘THINK ECOLOGY’ mark.

81x32x166 mm

90 g
