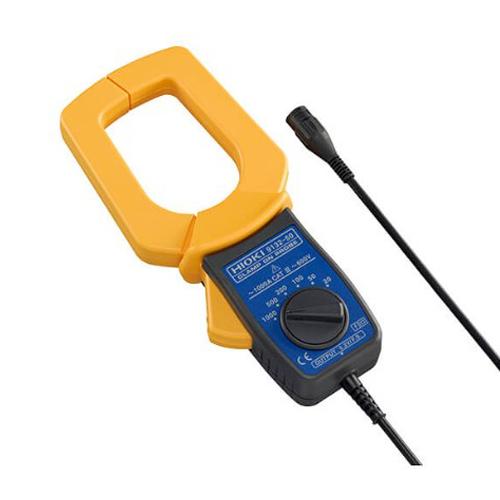

ESCO Clamp Sensor [For EA707A-30, -36] EA707A-28
JAN
4550061093511
ASIN
B0BWR3Q1Z2
Maker
Model No.
EA707A-28
Color
Size
100 (W) × 35 (D) × 224 (H) mm
Description
Brand Name: Esco
Rated Primary Current: AC 20 to 1000A
Maximum Input Current: 1000A continuous
Amplitude Accuracy (45 to 66Hz): ±3% of reading ±0.2% of full scale
Measurable Conductor Diameter: Up to φ55mm, 20×80mm busbar\ Dimensions: 100 (W) × 35 (D) × 224 (H) mm
Weight: 600g
Cable Length: 3m
For EA707A-30, -36
Output Voltage: AC 0.2V f.s. ※f.s. indicates the full-scale setting range value. This unit outputs AC sine wave voltage. Connect to equipment with an input impedance of 1MΩ or higher.
Requires EA707A-29 for connection to EA707A-30, -36.
4550061093511\ nB0BWR3Q1Z2
ESCO Clamp Sensor [For EA707A-30, -36] EA707A-28
(text created at , 2025-11-12)
Rated Primary Current: AC 20 to 1000A
Maximum Input Current: 1000A continuous
Amplitude Accuracy (45 to 66Hz): ±3% of reading ±0.2% of full scale
Measurable Conductor Diameter: Up to φ55mm, 20×80mm busbar\ Dimensions: 100 (W) × 35 (D) × 224 (H) mm
Weight: 600g
Cable Length: 3m
For EA707A-30, -36
Output Voltage: AC 0.2V f.s. ※f.s. indicates the full-scale setting range value. This unit outputs AC sine wave voltage. Connect to equipment with an input impedance of 1MΩ or higher.
Requires EA707A-29 for connection to EA707A-30, -36.
4550061093511\ nB0BWR3Q1Z2
ESCO Clamp Sensor [For EA707A-30, -36] EA707A-28
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
39,325 JPY (Including Tax)
