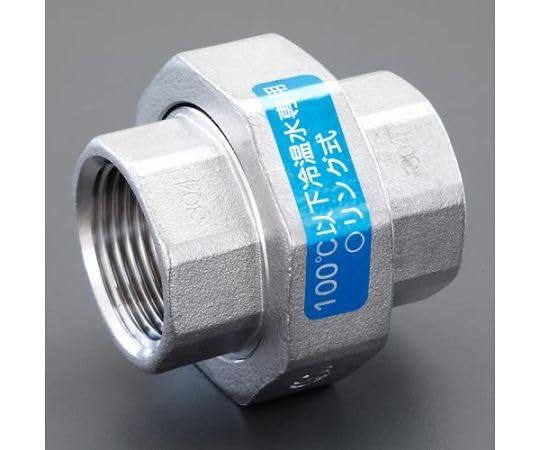

Rc3/4 Union (O-ring type / Stainless steel)
JAN
4550061121313
ASIN
B0CCXMPKCZ
Maker
Model No.
EA469AG-106A
Color
Size
3/4"
Description
Brand Name: Onda Manufacturing
Disassemblable. O-ring union suitable for oil, steam, and air piping
Manufacturer: Onda Manufacturing Model Number: SFU3-20
Nominal Diameter (A designation): 20 Thread Size (Rc): 3/4"
Flange Diameter (mm): Union Section/49, Octagonal Insert Section/32, Octagonal Overall Length (mm): 49
Material: SUS304 (SCS13A) O-ring Material: FKM Maximum Pressure: 1.75MPa (Air: 1.0MPa) Operating Temperature: Cold/Warm Water, Antifreeze: -15 to 100°C Oil: -15 to 175°C Steam: ~150°C Air: ~100°C Fluids: Cold/Warm Water, Antifreeze, Oil, Steam, Air ※※For Professional Use Only※※
4550061121313
“Rc3/4” “Union (O-ring type / Stainless steel)”
(text created at , 2025-05-12)
Disassemblable. O-ring union suitable for oil, steam, and air piping
Manufacturer: Onda Manufacturing Model Number: SFU3-20
Nominal Diameter (A designation): 20 Thread Size (Rc): 3/4"
Flange Diameter (mm): Union Section/49, Octagonal Insert Section/32, Octagonal Overall Length (mm): 49
Material: SUS304 (SCS13A) O-ring Material: FKM Maximum Pressure: 1.75MPa (Air: 1.0MPa) Operating Temperature: Cold/Warm Water, Antifreeze: -15 to 100°C Oil: -15 to 175°C Steam: ~150°C Air: ~100°C Fluids: Cold/Warm Water, Antifreeze, Oil, Steam, Air ※※For Professional Use Only※※
4550061121313
“Rc3/4” “Union (O-ring type / Stainless steel)”
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
2,684 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-06-22
Quantity :
