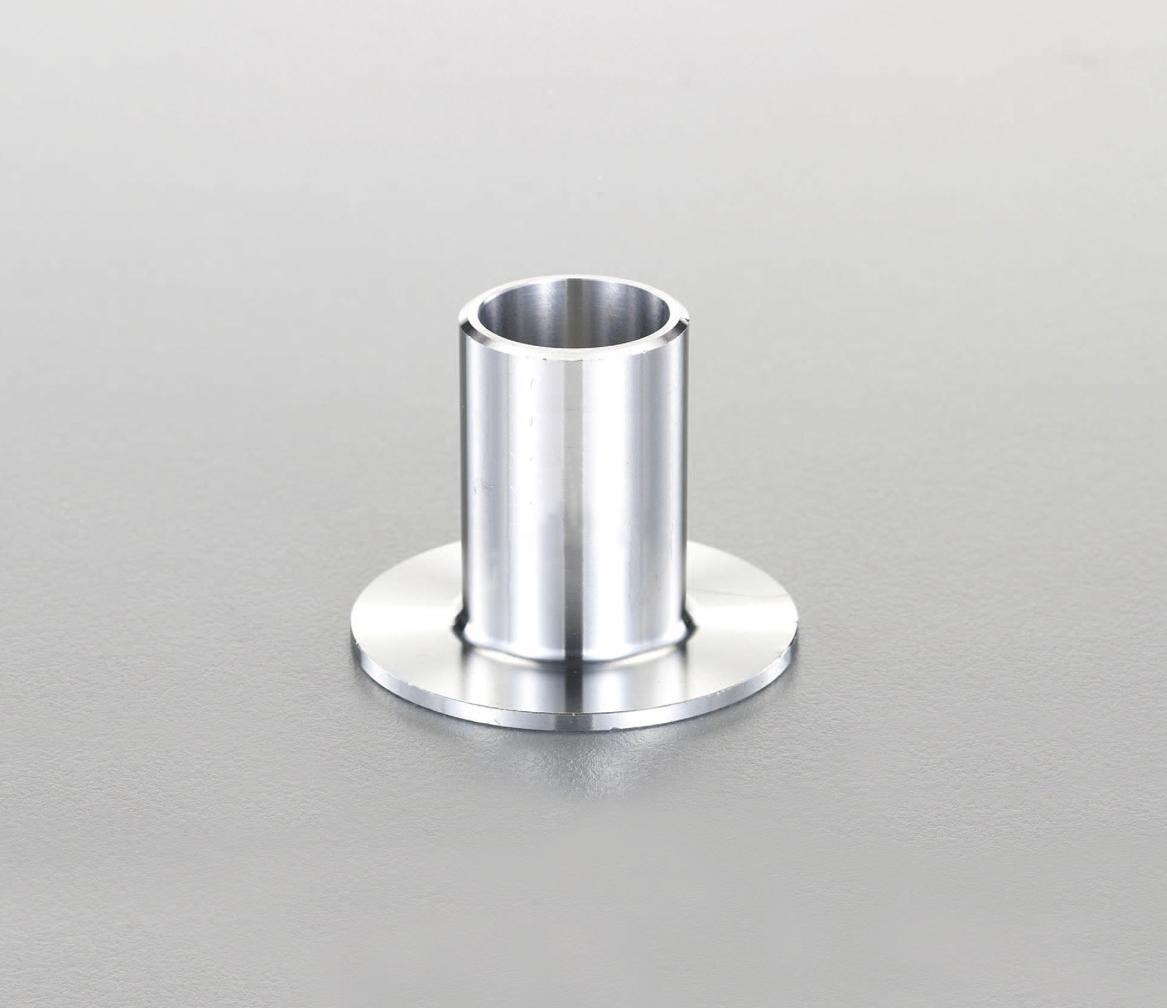

“2½” Welded Lap Joint (Stainless Steel)
JAN
4550061251300
ASIN
B07NGKT82B
Maker
Model No.
EA469FG-24A
Color
Size
4mm
Description
Brand Name: Esco
Material: Stainless Steel (SUS304W)
Material: Stainless Steel (SUS304W) Wall Thickness: Sch.10S Nominal Diameter: 65 (2-1/2)
Outer Diameter (OD): 76.3mm Inner Diameter (ID): 70.3mm Thickness (T): 3.0mm
Flange Diameter (G): 116mm Size (F): 50mm Size (R): 4mm
Weight: Approx. 430g Maximum Working Pressure: 20k Maximum Working Temperature: 200℃
Butt Weld Type JIS B 2313
4550061251300
“2-1/2” “Weld Lap Joint (Stainless Steel)”
(text created at , 2025-05-11)
Material: Stainless Steel (SUS304W)
Material: Stainless Steel (SUS304W) Wall Thickness: Sch.10S Nominal Diameter: 65 (2-1/2)
Outer Diameter (OD): 76.3mm Inner Diameter (ID): 70.3mm Thickness (T): 3.0mm
Flange Diameter (G): 116mm Size (F): 50mm Size (R): 4mm
Weight: Approx. 430g Maximum Working Pressure: 20k Maximum Working Temperature: 200℃
Butt Weld Type JIS B 2313
4550061251300
“2-1/2” “Weld Lap Joint (Stainless Steel)”
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
161x68x268 mm
Package
Weight (Approx.):
Weight (Approx.):
476 g
3,737 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
