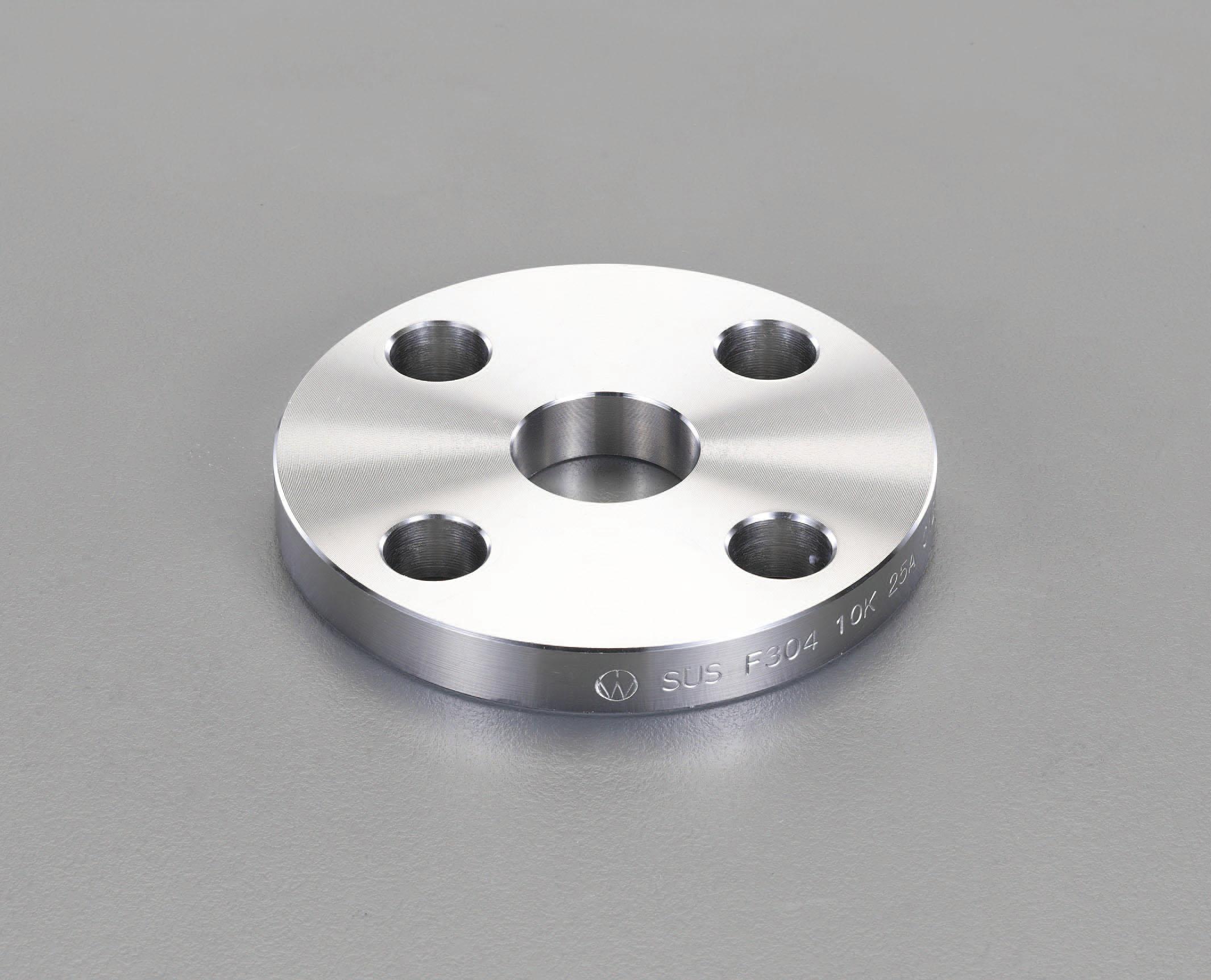

ESCO 3/4"/5K Weld-On Flange (Stainless Steel) EA469FH-6A
JAN
4550061251331
ASIN
B07NGRMG3T
Maker
Model No.
EA469FH-6A
Color
Size
Description
ESCO-5K Weld-On Flange - Stainless Steel - EA469FH-6A
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…20 (3/4”)
Applicable Pipe OD…27.2mm
Class…5K
Inner Diameter (do)…27.7mm
Outer Diameter (D)…85mm
Thickness (t)…10mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...49mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...12mm
Weight...Approx. 360g
Maximum Working Pressure...0.4MPa
Maximum Working Temperature...200℃
Brand Name: Esco
Applicable Pipe Outer Diameter…27.2mm
4550061251331
Esco 3/4" / 5K Welded Slip-On Flange (Stainless Steel) EA469FH-6A
(text created at , 2025-05-11)
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…20 (3/4”)
Applicable Pipe OD…27.2mm
Class…5K
Inner Diameter (do)…27.7mm
Outer Diameter (D)…85mm
Thickness (t)…10mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...49mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...12mm
Weight...Approx. 360g
Maximum Working Pressure...0.4MPa
Maximum Working Temperature...200℃
Brand Name: Esco
Applicable Pipe Outer Diameter…27.2mm
4550061251331
Esco 3/4" / 5K Welded Slip-On Flange (Stainless Steel) EA469FH-6A
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
90x23x95 mm
Package
Weight (Approx.):
Weight (Approx.):
394 g
1,079 JPY (Including Tax)
