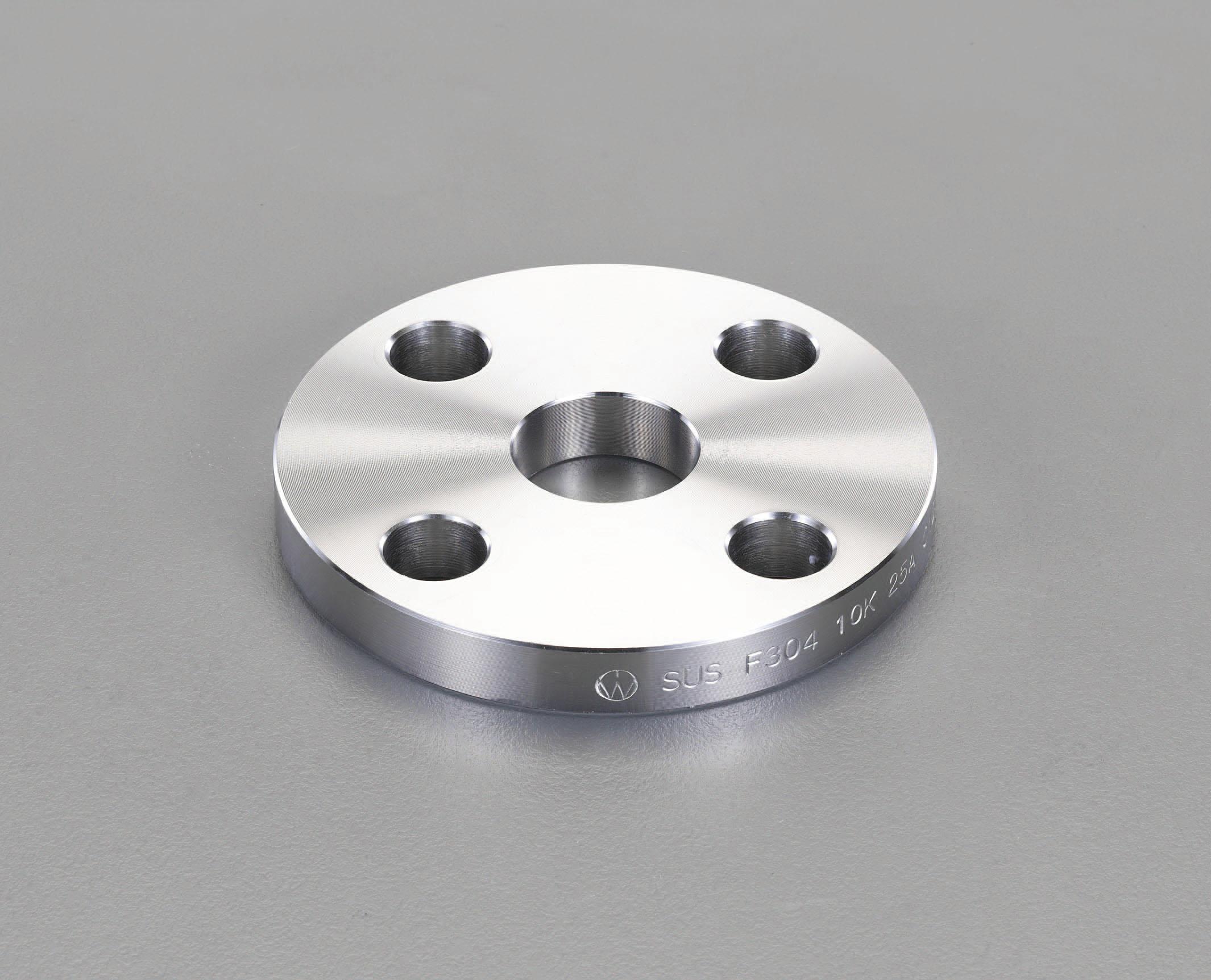

ESCO 1" / 5K Weld-In Flange (Stainless Steel) EA469FH-8A
JAN
4550061251348
ASIN
B07NGRZ6JM
Maker
Model No.
EA469FH-8A
Color
Size
Description
ESCO-5K-Weld-On Flange-Stainless Steel-EA469FH-8A
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…25 (1")
Applicable Pipe OD…34.0mm
Class…5K
Inner Diameter (do)…34.5mm
Outer Diameter (D)…95mm
Thickness (t)…10mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...59mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...12mm
Weight...Approx. 450g
Maximum Working Pressure...0.4MPa
Maximum Working Temperature...200℃
Brand Name: Esco
Nominal Size…25 (1”)
4550061251348
Esco 1" / 5K Welded Slip-On Flange (Stainless Steel) EA469FH-8A
(text created at , 2025-05-12)
Material…SUSF304
Applicable Standard…JIS B 2220
Nominal Size…25 (1")
Applicable Pipe OD…34.0mm
Class…5K
Inner Diameter (do)…34.5mm
Outer Diameter (D)…95mm
Thickness (t)…10mm\ Gasket Seat Thickness (f)...1mm
Gasket Seat Diameter (g)...59mm
Number of Bolt Holes...4
Bolt Hole Diameter (h)...12mm
Weight...Approx. 450g
Maximum Working Pressure...0.4MPa
Maximum Working Temperature...200℃
Brand Name: Esco
Nominal Size…25 (1”)
4550061251348
Esco 1" / 5K Welded Slip-On Flange (Stainless Steel) EA469FH-8A
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
100x25x109 mm
Package
Weight (Approx.):
Weight (Approx.):
480 g
