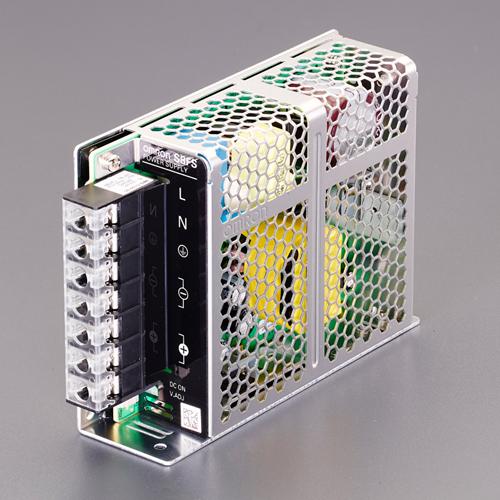

ESCO DC Switching Power Supply (Front Mount) 5V/15W EA940DN-60A
JAN
4550061436660
ASIN
B08VP7ZR9H
Maker
Model No.
EA940DN-60A
Color
Size
Description
Output indicator light... Yes (Color: Green) Remote sensing/remote control... No Withstand voltage... Between (All Input Terminals) and (All Output Terminals): AC 3kV 1 min, Cut-off Current 20mA Between (All Input Terminals) and (PE): AC 2kV 1 min, Cut-off Current 20mA Between (All Output Terminals) and (PE): AC 1kV 1 min, Cut-off Current 20mA Insulation Resistance... (All Output Terminals) and (All Input Terminals/PE): 100MΩ or more DC500V Vibration Resistance…10~55Hz Maximum 4.5G Single Amplitude 0.375mm 3 Directions 2h Each, Altitude…3000m Operating Ambient Temperature…-20~70°C (0~90%), Storage temperature... -25 to 75°C (0 to 90% RH) Expected life... 10 years or more (at rated input, 50% duty cycle, ambient temperature ≤+40°C, standard mounting condition) Cooling method... No cooling fan, Mass... Approx. 250g, Front mounting type, Covered type
Brand name: Esco
Output Voltage: DC5V, Output Capacity: 15W, Input Voltage Tolerance Range: AC85~264V (Single-phase) DC80~370V, Output Current: 3A, Start-up Time: 1000ms or less (AC100V input) 1000ms or less (AC200V input), Series Operation: Possible (Up to 2 units connectable. External diode required)
Input voltage: 100~240V (DC80~370V shared), Frequency: 50/60Hz (47~450Hz), Ripple noise voltage: 40mV(p-p) or less at AC100~240V input, Output hold time: 15ms typ. (75ms typ. at AC100V input, 15ms typ. at AC200V input), Parallel operation: Not possible (However, backup operation possible, external diode required)
Input/output connection: Terminal block, Terminal block type: Screw terminals, Input current: 0.32A typ. (0.2A typ. at AC100V input, 0.3A typ. at AC200V input), Input fluctuation: 0.5% or less, Overcurrent protection: Yes, Auto-recovery (at AC200V input), Input voltage ripple: 0.5% max., Overcurrent protection: Yes, Auto-recovery
Leakage current: 0.5mA max. (at AC100V input) 1mA max. (at AC200V input), Load ripple: 1% max., Overvoltage protection: Yes, Power-off recovery
4550061436660
ESCO DC Switching Power Supply (Front Mount) 5V/15W EA940DN-60A
(text created at , 2025-05-12)
Brand name: Esco
Output Voltage: DC5V, Output Capacity: 15W, Input Voltage Tolerance Range: AC85~264V (Single-phase) DC80~370V, Output Current: 3A, Start-up Time: 1000ms or less (AC100V input) 1000ms or less (AC200V input), Series Operation: Possible (Up to 2 units connectable. External diode required)
Input voltage: 100~240V (DC80~370V shared), Frequency: 50/60Hz (47~450Hz), Ripple noise voltage: 40mV(p-p) or less at AC100~240V input, Output hold time: 15ms typ. (75ms typ. at AC100V input, 15ms typ. at AC200V input), Parallel operation: Not possible (However, backup operation possible, external diode required)
Input/output connection: Terminal block, Terminal block type: Screw terminals, Input current: 0.32A typ. (0.2A typ. at AC100V input, 0.3A typ. at AC200V input), Input fluctuation: 0.5% or less, Overcurrent protection: Yes, Auto-recovery (at AC200V input), Input voltage ripple: 0.5% max., Overcurrent protection: Yes, Auto-recovery
Leakage current: 0.5mA max. (at AC100V input) 1mA max. (at AC200V input), Load ripple: 1% max., Overvoltage protection: Yes, Power-off recovery
4550061436660
ESCO DC Switching Power Supply (Front Mount) 5V/15W EA940DN-60A
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
91x47x135 mm
Package
Weight (Approx.):
Weight (Approx.):
264 g
4,991 JPY (Including Tax)
