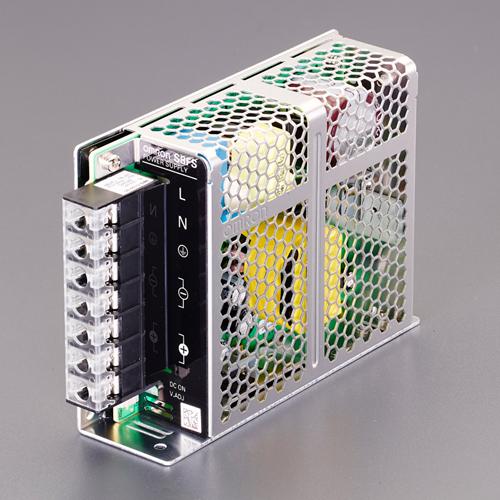

ESCO Switching Power Supply (Front Mount) DC24V/30W EA940DN-81A
JAN
4550061436745
ASIN
B08VPGY851
Maker
Model No.
EA940DN-81A
Color
Size
Description
Description
Output indicator light…Yes (Color: Green)
Remote sensing/remote control…No
Withstand voltage… Between (All Input Terminals) and (All Output Terminals): AC 3kV 1 min, Cut-off Current 20mA Between (All Input Terminals) and (PE): AC 2kV 1 min, Cut-off Current 20mA Between (All Output Terminals) and (PE): AC 1kV 1 min, Cut-off Current 20mA
Insulation Resistance… (All output terminals) and (All input terminals/PE): 100MΩ or more DC500V
Vibration resistance…10~55Hz Max 4.5G Single amplitude 0.375mm 3 directions 2h each, Altitude…3000m
Operating ambient temperature…-20~70°C (0~90%), Storage temperature... -25 to 75°C (0 to 90%)
Expected life... 10 years or more (at rated input, 50% duty cycle, ambient temperature ≤+40°C, standard mounting conditions)
Cooling method... No cooling fan, Mass... Approx. 250g, Front-mount type, Covered type
Brand name: Esco
Output Voltage: DC24V, Output Capacity: 30W, Input Voltage Tolerance Range: AC85~264V (Single-phase) DC80~370V, Output Current: 1.5A, Start-up Time: 1000ms or less (AC100V input) 1000ms or less (AC200V input), Series Operation: Possible (Up to 2 units connectable. External diode required)
Input voltage: 100~240V (DC80~370V shared), Frequency: 50/60Hz (47~450Hz), Ripple noise voltage: 60mV(p-p) or less at AC100~240V input, Output hold time: 10ms typ. (55ms typ. at AC100V input, 100~240V AC input), Parallel operation: Not possible (However, backup operation possible, external diode required)
Input/output connection: Terminal block, Terminal block type: Screw terminals, Input current: 0.72A typ. (0.43A typ. at AC100V input, 1.0A typ. at AC200V input), Input fluctuation: 0.5% or less, Overcurrent protection: Yes, Auto-recovery (at AC200V input), Input voltage ripple: 0.5% max., Overcurrent protection: Yes, Auto-recovery
Leakage current: 0.5mA max. (at AC100V input) 1mA max. (at AC200V input), Load ripple: 1% max., Overvoltage protection: Yes, Power-off recovery
4550061436745
ESCO Switching Power Supply (Front Mount) DC24V/30W EA940DN-81A
(text created at , 2025-05-09)
Output indicator light…Yes (Color: Green)
Remote sensing/remote control…No
Withstand voltage… Between (All Input Terminals) and (All Output Terminals): AC 3kV 1 min, Cut-off Current 20mA Between (All Input Terminals) and (PE): AC 2kV 1 min, Cut-off Current 20mA Between (All Output Terminals) and (PE): AC 1kV 1 min, Cut-off Current 20mA
Insulation Resistance… (All output terminals) and (All input terminals/PE): 100MΩ or more DC500V
Vibration resistance…10~55Hz Max 4.5G Single amplitude 0.375mm 3 directions 2h each, Altitude…3000m
Operating ambient temperature…-20~70°C (0~90%), Storage temperature... -25 to 75°C (0 to 90%)
Expected life... 10 years or more (at rated input, 50% duty cycle, ambient temperature ≤+40°C, standard mounting conditions)
Cooling method... No cooling fan, Mass... Approx. 250g, Front-mount type, Covered type
Brand name: Esco
Output Voltage: DC24V, Output Capacity: 30W, Input Voltage Tolerance Range: AC85~264V (Single-phase) DC80~370V, Output Current: 1.5A, Start-up Time: 1000ms or less (AC100V input) 1000ms or less (AC200V input), Series Operation: Possible (Up to 2 units connectable. External diode required)
Input voltage: 100~240V (DC80~370V shared), Frequency: 50/60Hz (47~450Hz), Ripple noise voltage: 60mV(p-p) or less at AC100~240V input, Output hold time: 10ms typ. (55ms typ. at AC100V input, 100~240V AC input), Parallel operation: Not possible (However, backup operation possible, external diode required)
Input/output connection: Terminal block, Terminal block type: Screw terminals, Input current: 0.72A typ. (0.43A typ. at AC100V input, 1.0A typ. at AC200V input), Input fluctuation: 0.5% or less, Overcurrent protection: Yes, Auto-recovery (at AC200V input), Input voltage ripple: 0.5% max., Overcurrent protection: Yes, Auto-recovery
Leakage current: 0.5mA max. (at AC100V input) 1mA max. (at AC200V input), Load ripple: 1% max., Overvoltage protection: Yes, Power-off recovery
4550061436745
ESCO Switching Power Supply (Front Mount) DC24V/30W EA940DN-81A
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
140x46x187 mm
Package
Weight (Approx.):
Weight (Approx.):
262 g
6,352 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
